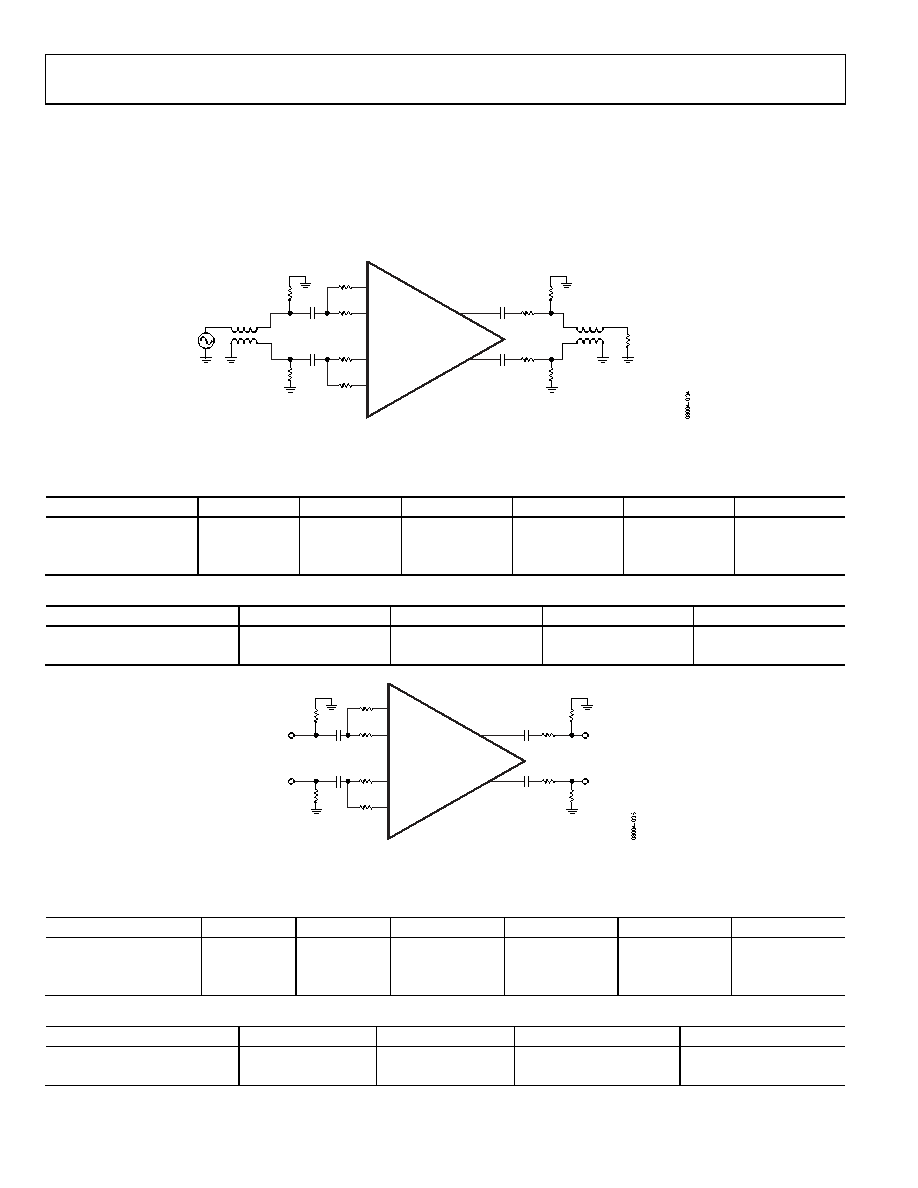

background image
ADL5561
Data Sheet
Rev. G | Page 18 of 24
LAYOUT CONSIDERATIONS
High-Q inductive drives and loads, as well as stray transmission
line capacitance in combination with package parasitics, can
potentially form a resonant circuit at high frequencies, resulting in
excessive gain peaking or possible oscillation. If RF transmission
lines connecting the input or output are used, designed them
such that stray capacitance at the input/output pins is minimized.
In many board designs, the signal trace widths should be
minimal where the driver/receiver is more than one-eighth of
the wavelength from the amplifier. This nontransmission line
configuration requires that underlying and adjacent ground and
low impedance planes be dropped from the signal lines.
0.1µF
0.1µF
0.1µF
0.1µF
ADL5561
VIP2
VIP1
VIN1
VOP
VON
VIN2
R6
R5
R4
R3
R2
R1
R8
R7
R10
R9
ETC1-1-13
ETC1-1-13
SPECTRUM
ANALYZER
Figure 43. General-Purpose Characterization Circuit
Table 10. Gain Setting and Input Termination Components for Figure 43
AV (dB)
R1 (Ω)
R2 (Ω)
R3 (Ω)
R4 (Ω)
R5 (Ω)
R6 (Ω)
6 dB
29
29
Open
0
0
Open
12 dB
33
33
0
Open
Open
0
15.5 dB
40.2
40.2
0
0
0
0
Table 11. Output Matching Network for Figure 43
RL (Ω)
R7 (Ω)
R8 (Ω)
R9 (Ω)
R10 (Ω)
200
84.5
84.5
34.8
34.8
1 k
487
487
25
25
ADL5561
VIP2
VIP1
VIN1
VOP
VON
VIN2
R6
R5
R4
R3
R2
R1
R8
R7
R10
R9
PORT 1
PORT 3
PORT 2
PORT 4
Figure 44. Differential Characterization Circuit Using Agilent E8357A 4-Port PNA
Table 12. Gain Setting and Input Termination Components for Figure 44
AV (dB)
R1 (Ω)
R2 (Ω)
R3 (Ω)
R4 (Ω)
R5 (Ω)
R6 (Ω)
6
67
67
Open
0
0
Open
12
100
100
0
Open
Open
0
15.5
200
200
0
0
0
0
Table 13. Output Matching Network for Figure 44
RL (Ω)
R7 (Ω)
R8 (Ω)
R9 (Ω)
R10 (Ω)
200
50
50
Open
Open
1 k
475
475
61.9
61.9
