Data Sheet

ADL5562

Rev. F | Page 7 of 21

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

PIN 1

INDICATOR

VIP2

VIP1

VIN1

VIN2

11 VOP

12 ENBL

10 VON

9 VCOM

TOP VIEW

(Not to Scale)

ADL5562

NOTES

1. EXPOSED PADDLE. CONNECT TO A LOW

IMPEDANCE THERMAL AND ELECTRICAL

GROUND PLANE.

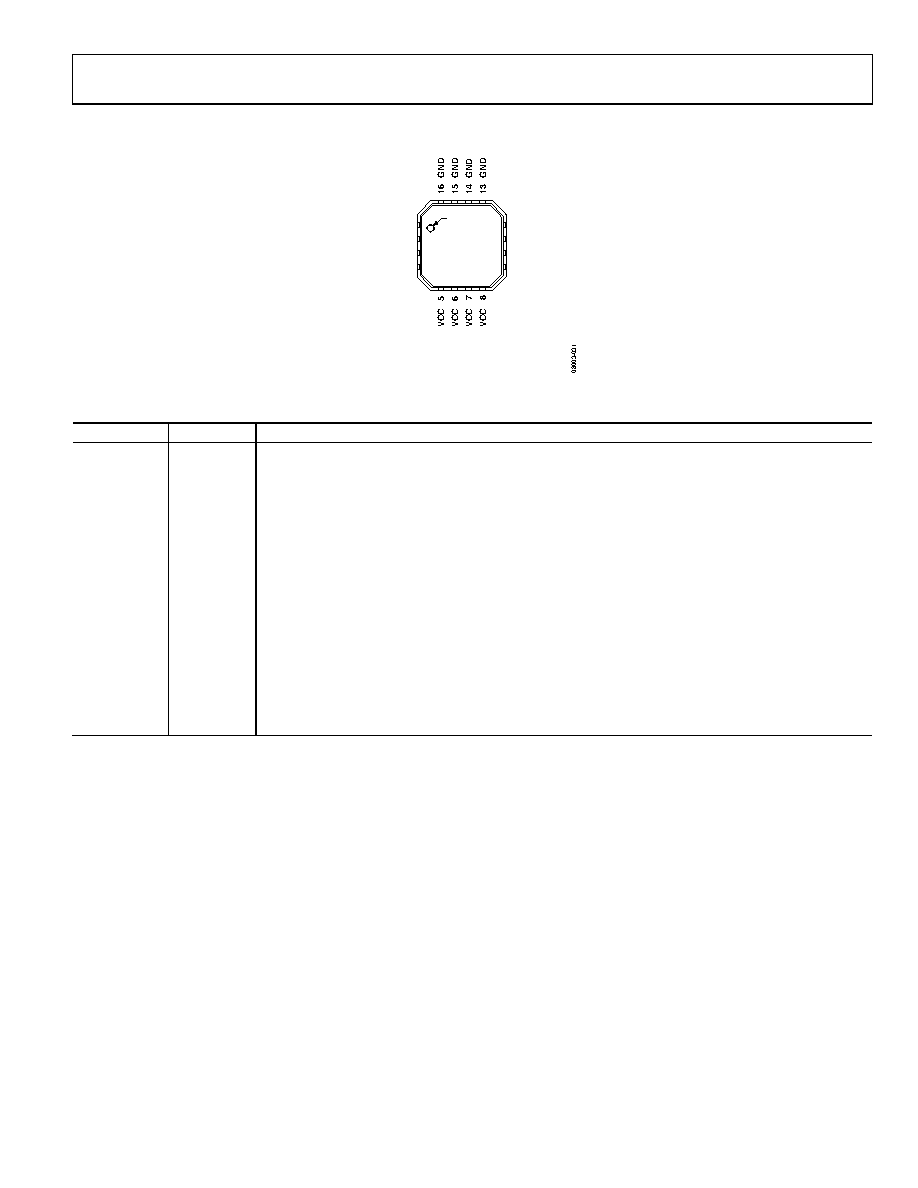

Figure 2. Pin Configuration

Table 3. Pin Function Descriptions

Pin No.

Mnemonic

Description

VIP2

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 12 dB gain, strapped to

VIP1 for AV = 15.5 dB.

VIP1

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 6 dB gain, strapped to

VIP2 for AV = 15.5 dB.

VIN1

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 6 dB gain, strapped to

VIN2 for AV = 15.5 dB.

VIN2

Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 12 dB gain, strapped to

VIN1 for AV = 15.5 dB.

5, 6, 7, 8

VCC

Positive Supply.

VCOM

Common-Mode Voltage. A voltage applied to this pin sets the common-mode voltage of the input and

output. Typically decoupled to ground with a 0.1 μF capacitor. With no reference applied, input and

output common mode floats to midsupply (VCC/2).

VON

Balanced Differential Output. Biased to VCOM, typically ac-coupled.

VOP

Balanced Differential Output. Biased to VCOM, typically ac-coupled.

ENBL

Enable. Apply positive voltage (1.0 V < ENBL < VCC) to activate device.

13, 14, 15, 16

GND

Ground. Connect to low impedance ground.

EPAD

Exposed Pad. Connect to a low impedance thermal and electrical ground plane.
