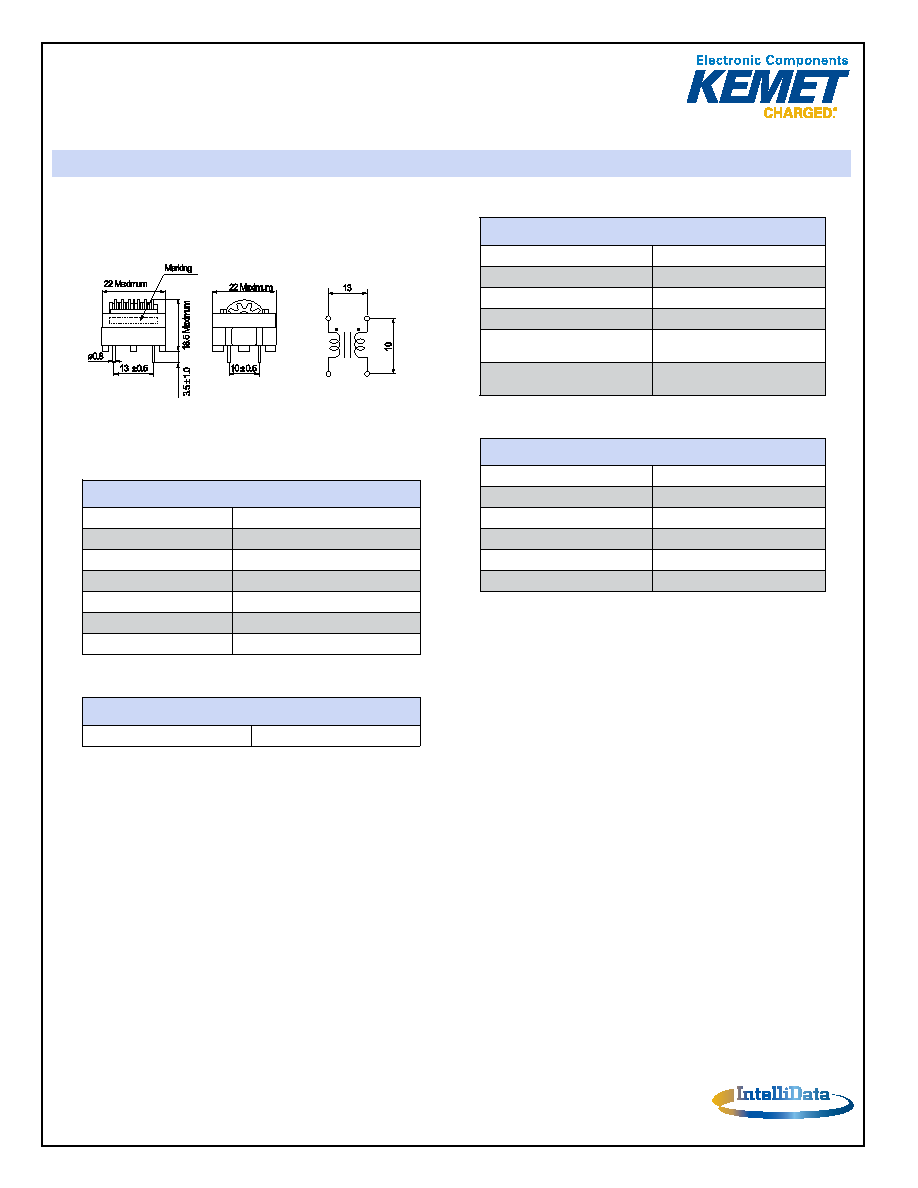

KEMET Part Number: SS20H-R06200

(UAL20HR0620000)

Commercial Grade, SS20H, 0.02 H

Dimensions

L

22mm MAX

T

22mm MAX

H

18.5mm MAX

S

10mm MAX

S1

13mm NOM

LL

3.5mm +/-1mm

F

0.8mm +/-0.1mm

Packaging Specifications

Weight: 12 g

General Information

Style: Through-Hole Choke

Series: SS20H

Description: Common Mode Filter

RoHS: Yes

Miscellaneous: Inductance Measurement

Condition: 1kHz 1V KC530

Notes: Lead Spacing (S/S1) Are For

Reference Only.

Specifications

Inductance: 20000 uH

Rated Temperature: 120C

Current: 0.6 Amps

Voltage AC: 250 VAC

DC Resistance: 930 mOhms

Insulation Resistance: 100 MOhms
