www.asb.co.kr

March 2016

plerowTM APLS0795-R

PLL Synthesizer Module

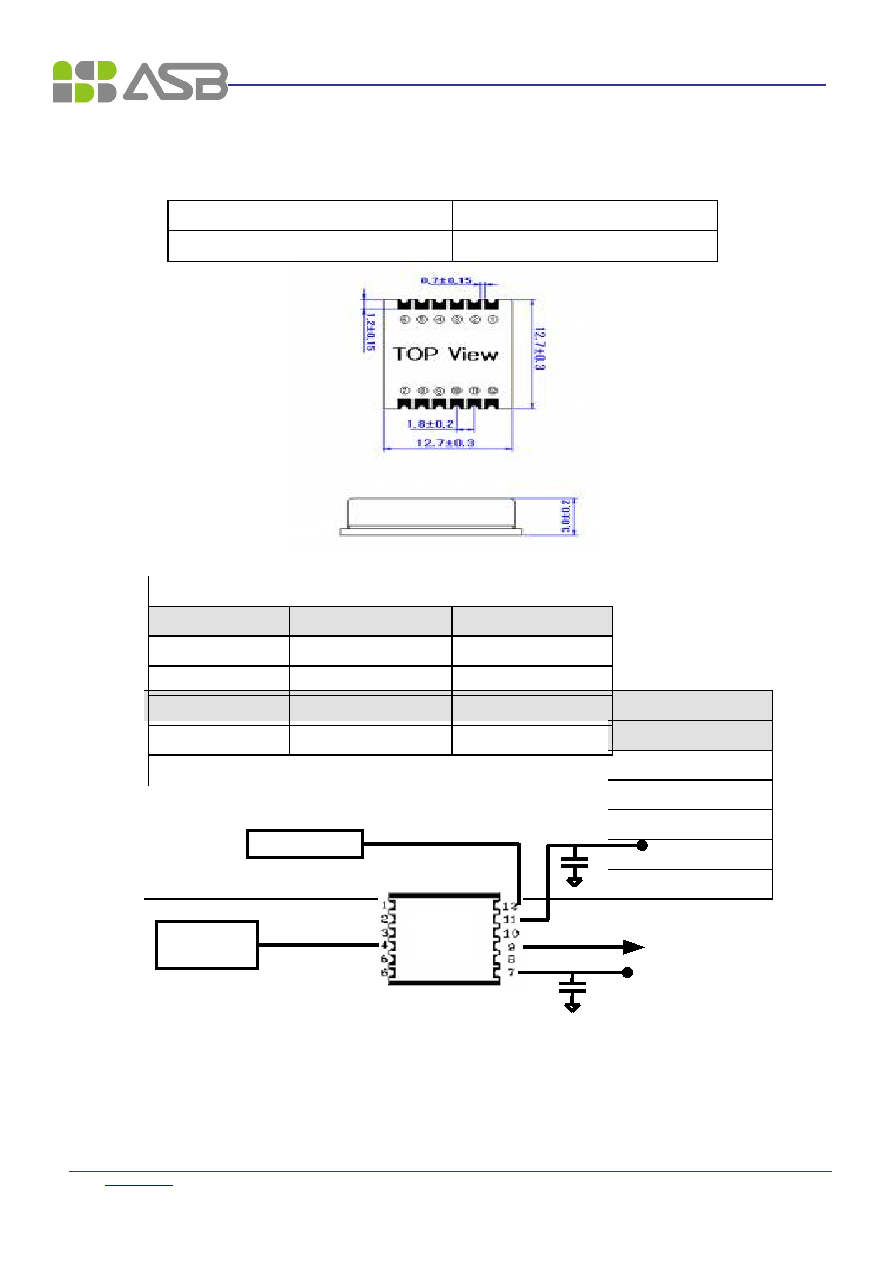

Outline Drawing

Type

Dimension

PLL IC + VCO + ROM

12.7 x 12.7 x 3

Pin Out for PLL

Pin No.

Application

Pin No.

Application

GROUND

VCC (VCO)

GROUND

RF OUT

GROUND

VCC (PLL)

OSC IN

LOCK DETECT

All other Pins are Grounded / Internal ROM

Micro-controller

Reference Freq.

Source (TCXO)

RF OUT

VCC(+5V) for PLL IC

VCC(+5V) for VCO

Capacitor for Noise

Filtering

Capacitor for Noise

Filtering

LOCK DETECT (LD)

OSC IN

APLS0000

-R

ASB Inc.

assumes no responsibility for any errors which may appear in this datasheet. No part of the datasheet

may be copied or reproduced in any form or by any means without the prior written consent of ASB.
