Data Sheet

AD7983

Rev. B | Page 13 of 24

Transfer Functions

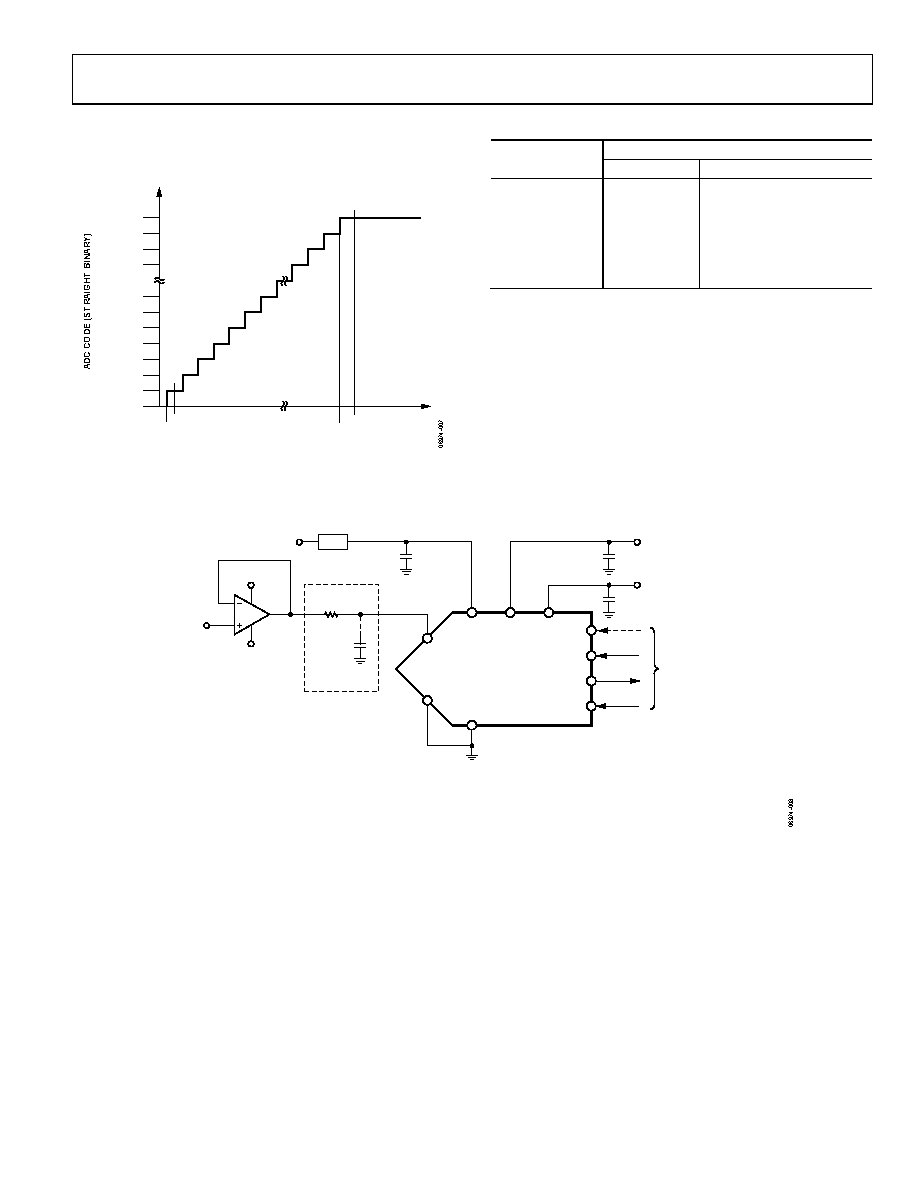

The ideal transfer characteristic for the AD7983 is shown in

Figure 22 and Table 7.

000 ... 000

000 ... 001

000 ... 010

111 ... 101

111 ... 110

111 ... 111

–FSR

–FSR + 1LSB

–FSR + 0.5LSB

+FSR – 1 LSB

+FSR – 1.5 LSB

ANALOG INPUT

Figure 22. ADC Ideal Transfer Function

Table 7. Output Codes and Ideal Input Voltages

Analog Input

Description

VREF = 5 V

Digital Output Code (Hex)

FSR − 1 LSB

4.999924 V

FFFF1

Midscale + 1 LSB

2.500076 V

8001

Midscale

2.5 V

8000

Midscale − 1 LSB

2.499924 V

7FFF

−FSR + 1 LSB

76.3 μV

0001

−FSR

0 V

00002

1 This is also the code for an overranged analog input (VIN+ − VIN− above VREF − VGND).

2 This is also the code for an underranged analog input (VIN+ − VIN− below VGND).

TYPICAL CONNECTION DIAGRAM

Figure 23 shows an example of the recommended connection

diagram for the AD7983 when multiple supplies are available.

AD7983

3- OR 4-WIRE INTERFACE

2.5V

V+

20Ω

V+

V–

0 TO VREF

1.8V TO 5V

100nF

10µF2

2.7nF

100nF

REF

IN+

IN–

VDD

VIO

SDI

CNV

SCK

SDO

GND

REF1

1SEE THE VOLTAGE REFERENCE INPUT SECTION FOR REFERENCE SELECTION.

2CREF IS USUALLY A 10µF CERAMIC CAPACITOR (X5R).

3SEE THE DRIVER AMPLIFIER CHOICE SECTION.

4OPTIONAL FILTER. SEE THE ANALOG INPUTS SECTION.

5SEE THE DIGITAL INTERFACE SECTION FOR THE MOST CONVENIENT INTERFACE MODE.

Figure 23. Typical Application Diagram with Multiple Supplies
