ADP1610
Rev. 0 | Page 9 of 16
CH1 10.0mV
Ω CH2 2.00V
M100
µs
A CH2
680mV
4
2
3
1
CH3 10.0V
CH4 10.00V
T
414.800
µs
VIN = 3.3V
VOUT = 10V
IOUT = 0.2A
CSS = 0nF
CH1 = IL 1A/DIV
CH2 = VIN
CH3 = VOUT
CH4 = SW,FSW = 700kHz

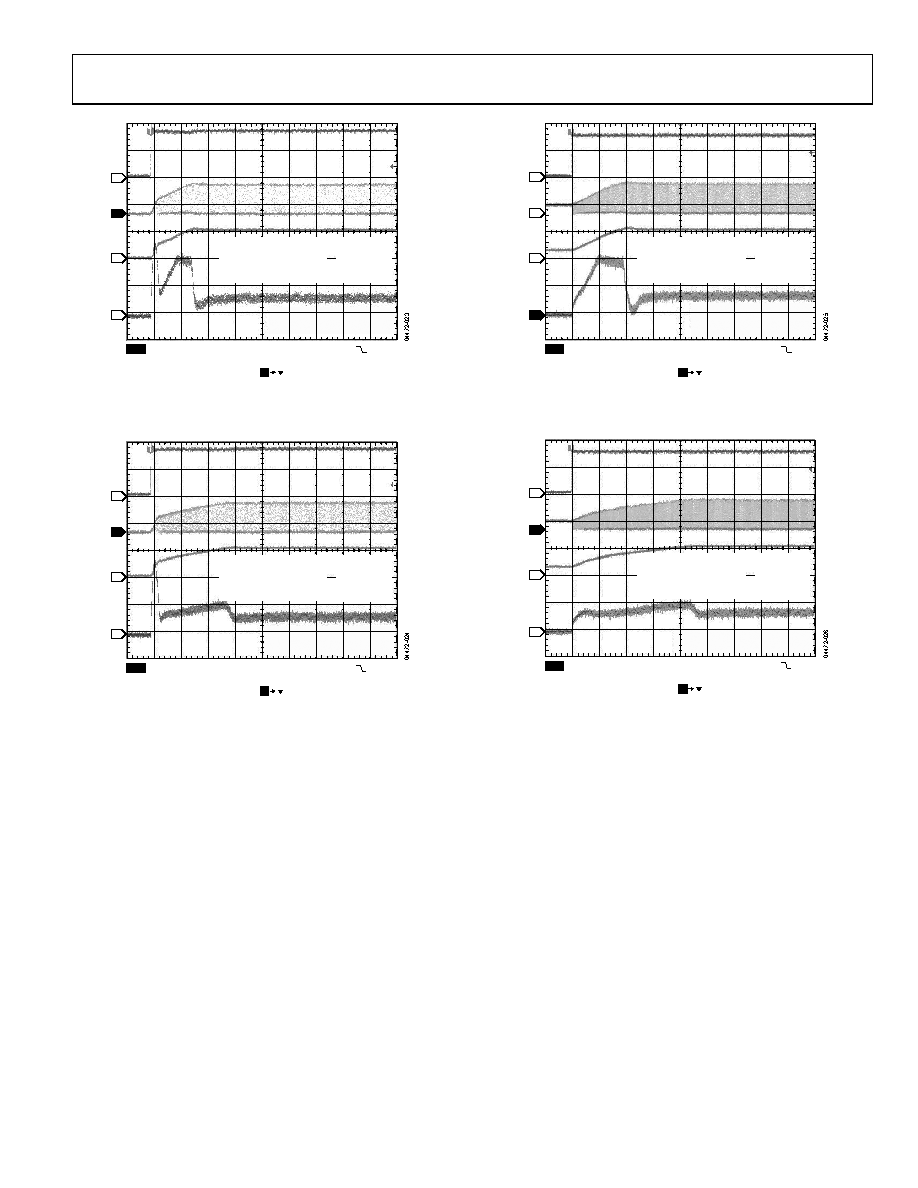

Figure 22. Start-Up Response from VIN, SS = 0 nF
CH1 10.0mV
Ω CH2 2.00V
M100
µs
A CH2
680mV
4
2
3
1
CH3 10.0V
CH4 10.00V
T
414.800
µs
VIN = 3.3V
VOUT = 10V
IOUT = 0.2A
CSS = 10nF
CH1 = IL 1A/DIV
CH2 = VIN
CH3 = VOUT
CH4 = SW,FSW = 700kHz
Figure 23. Start-Up Response from VIN, SS = 10 nF
CH1 10.0mV
Ω CH2 2.00V
M100
µs
A CH2
1.72V
4
2
3
1
CH3 10.0V
CH4 10.00V
T
405.600
µs
VIN = 3.3V
VOUT = 10V
IOUT = 0.2A
CSS = 0nF
CH1 = IL 1A/DIV
CH2 = VIN
CH3 = VOUT
CH4 = SW,FSW = 700kHz
Figure 24. Start-Up Response from Shutdown, SS = 0 nF
CH1 10.0mV
Ω CH2 2.00V
M100
µs
A CH2
1.72V
4
2
3
1
CH3 10.0V
CH4 10.00V
T
405.600
µs
IOUT = 0.2A
VIN = 3.3V
VOUT = 10V
CSS = 10nF
CH1 = IL 1A/DIV
CH2 = SD
CH3 = VOUT
CH4 = SW,FSW = 700kHz
Figure 25. Start-Up Response from Shutdown, SS = 10 nF
