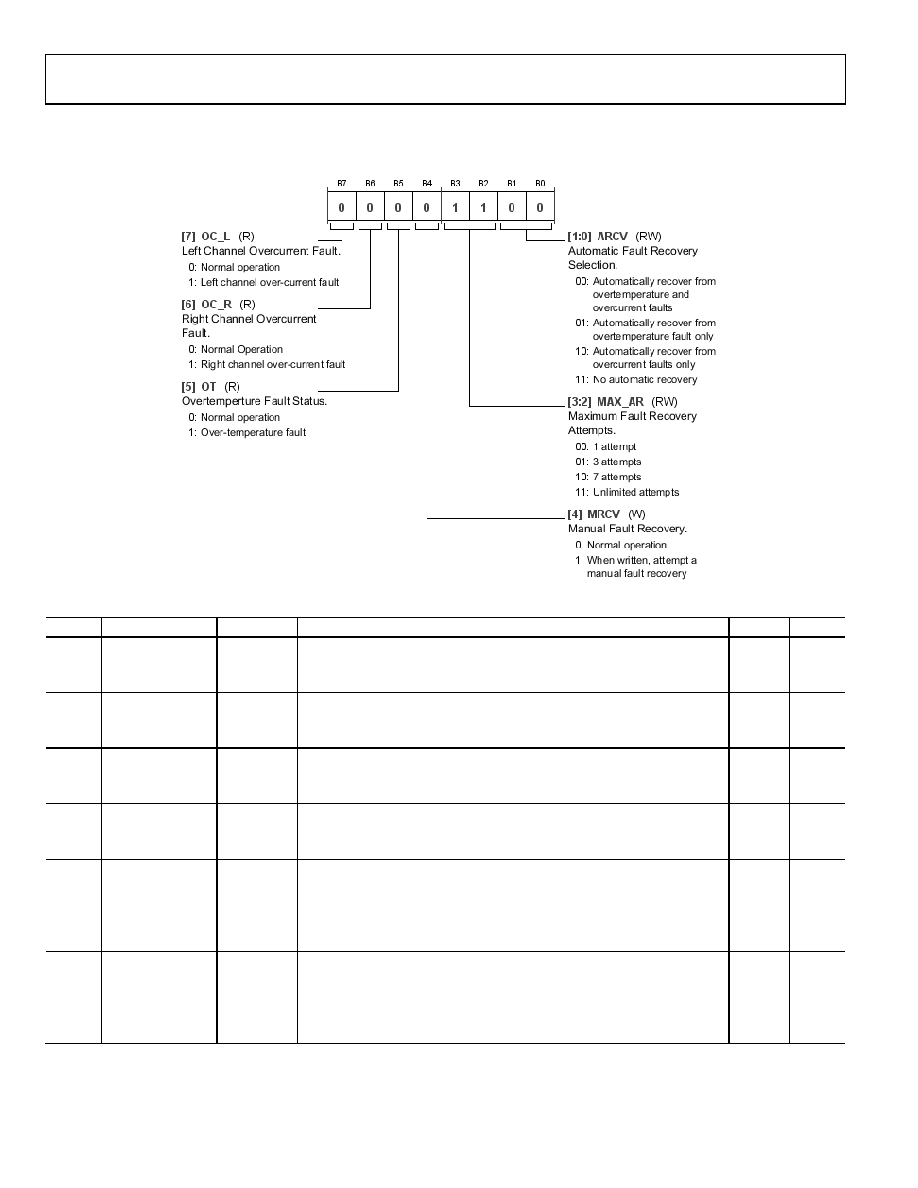

FAULT CONTROL 1 REGISTER

Address: 0x08, Reset: 0x0C, Name: Fault_Control_1

Table 21. Bit Descriptions for Fault_Control_1

Bits

Bit Name

Settings

Description

Reset

Access

OC_L

Left Channel Overcurrent Fault. Read only.

0x0

Normal operation

Left channel overcurrent fault

OC_R

Right Channel Overcurrent Fault. Read only.

0x0

Normal operation

Right channel overcurrent fault

Overtemperature Fault Status. Read only.

0x0

Normal operation

Overtemperature fault

MRCV

Manual Fault Recovery. Available only when ARCV = 11. Write only.

0x0

Normal operation

When written, attempt a manual fault recovery

[3:2]

MAX_AR

Maximum Fault Recovery Attempts.

0x3

One attempt

Three attempts

Seven attempts

Unlimited attempts

[1:0]

ARCV

Automatic Fault Recovery Selection.

0x0

Automatically recover from overtemperature and overcurrent faults

Automatically recover from overtemperature fault only

Automatically recover from overcurrent faults only

No automatic recovery
