UNISONIC TECHNOLOGIES CO., LTD

UL23EB

Preliminary

CMOS IC

www.unisonic.com.tw

1 of 8

Copyright © 2018 Unisonic Technologies Co., Ltd

QW-R125-071.c

HIGH ACCURACY LINEAR

CONSTANT CURRENT LED

DRIVER



DESCRIPTION

The UL23EB is a linear constant current IC that supports the

adjust brightness or color temperature in 3 grades. The application

scheme is simple and the cost is low.

In the dimming application of UL23EB, User can change the size

of the output current by turn on/off the power switch, that adjust

brightness of LED lights. Changing the REXT external resistance

Adjustment of brightness ratio.

In the adjust color temperature application of UL23EB, User can

change the state of the two output ports by turn on/off the power

switch, that adjust the color temperature through the light of two

different colored LED lights. Changing the REXT external resistance

can adjustment the output power.



FEATURES

* No stroboscopic

* Input voltage 220VAC,110VAC

* Adjustable output current, max 60mA

* Inter-chip current deviation < ±4%

* Application system no EMI problems

* Over temperature Reduced Current

* Supports the adjust brightness in 3 grades

* Supports the adjust color temperature in 3 grades

* Effectively switching time from 0.3S ~ 3S

HSOP-8



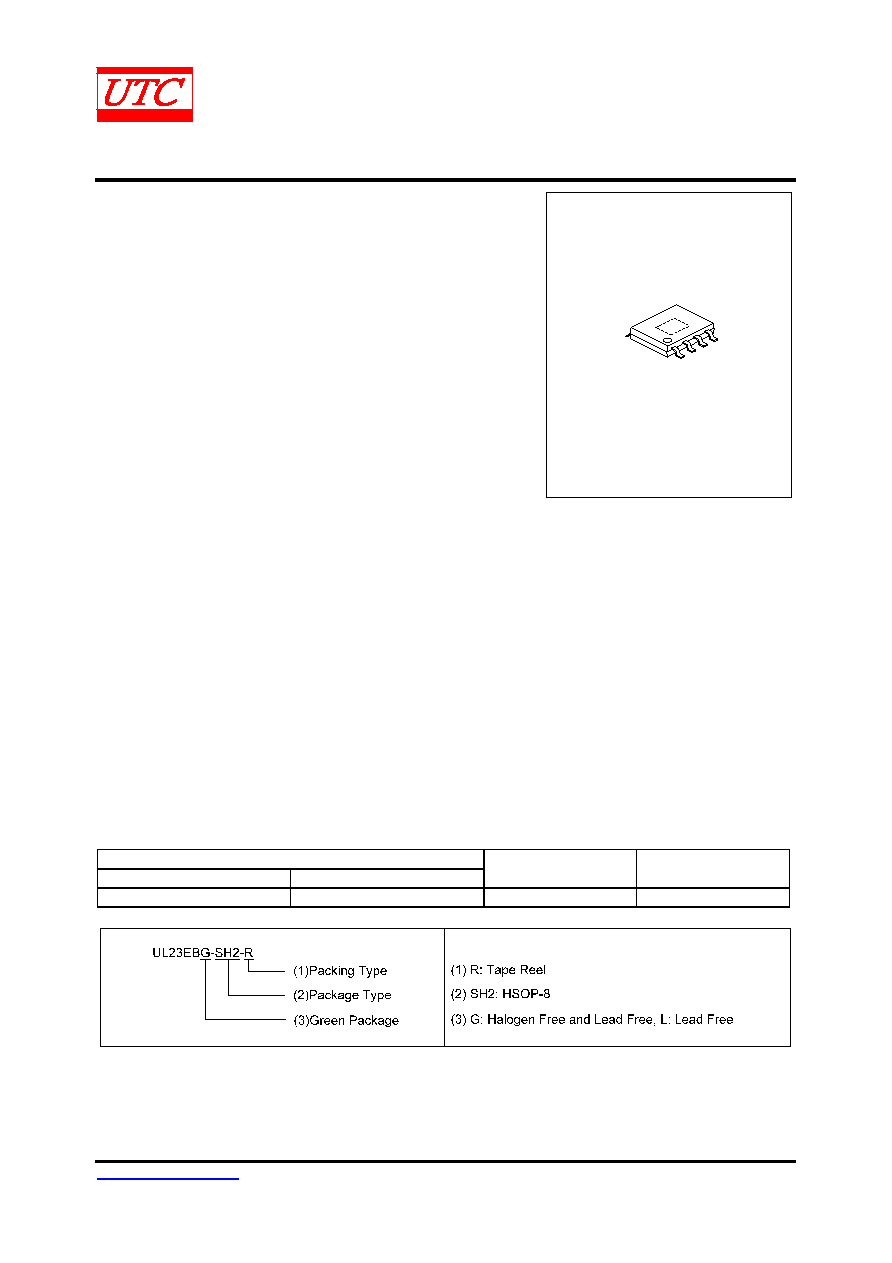

ORDERING INFORMATION

Ordering Number

Lead Free

Halogen Free

Package

Packing

UL23EBL-SH2-R

UL23EBG-SH2-R

HSOP-8

Tape Reel
