PCM, MULTICHANNEL MODE

0x02[4:2], SAI = 1 (2 channels), 2 (4 channels), 3 (8 channels), 4 (16 channels)

0x02[6:5], SDATA_FMT = 0 (I2S), 1 (LJ), 2 (RJ 24-bit), 3 (RJ 16-bit)

0x03[1], BCLK_EDGE = 1 (falling BCLK edge used)

0x03[6], LRCLK_MODE = 1 (pulse mode LRCLK)

0x03[3:2], SLOT_WIDTH = 0 (32 cycles), 1 (24 cycles), 2 (16 cycles)

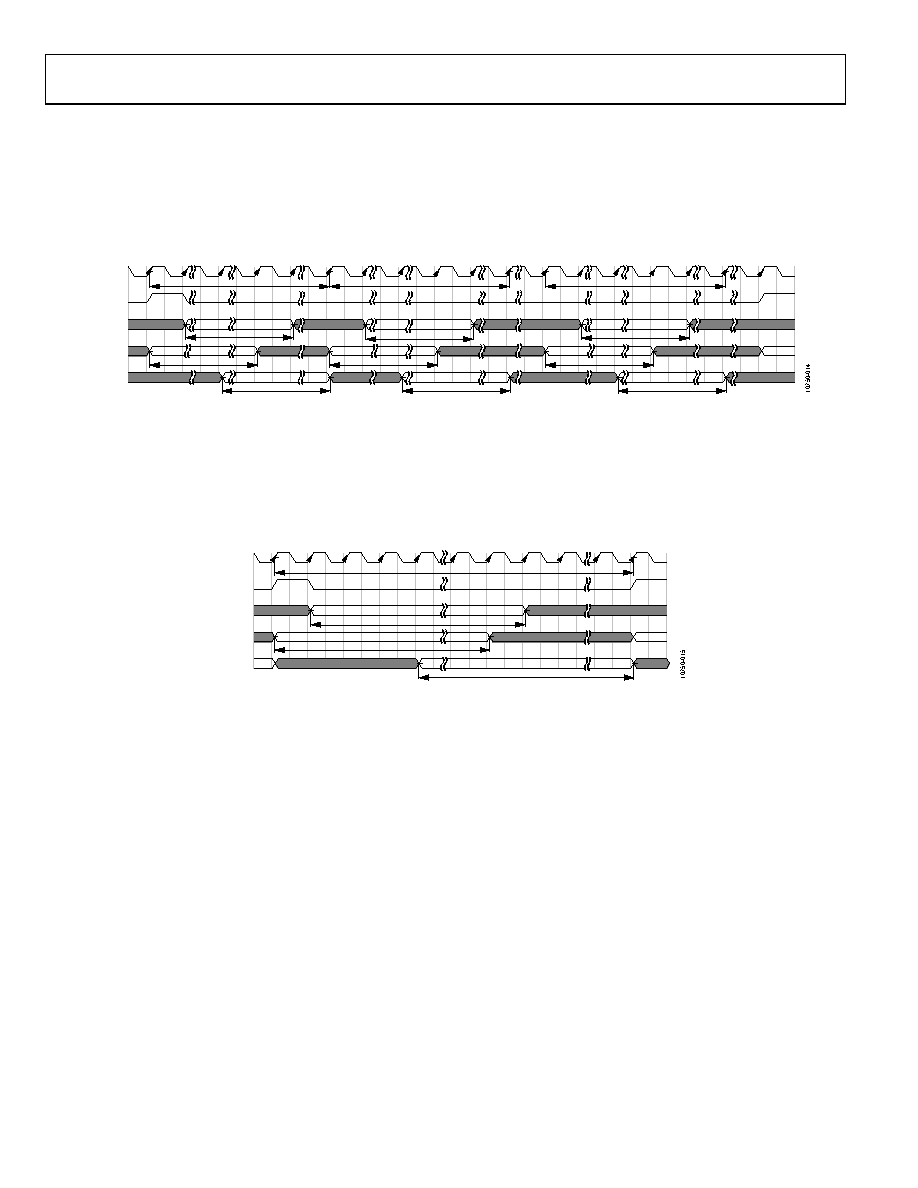

Figure 29. Multichannel PCM Modes

PCM, MONO MODE

0x02[4:2], SAI = 5

0x02[6:5], SDATA_FMT = 0 (I2S), 1 (LJ), 2 (RJ 24-bit), 3 (RJ 16-bit)

0x03[1], BCLK_EDGE = 1 (falling BCLK edge used)

0x03[6], LRCLK_MODE = 1 (pulse mode LRCLK)

Figure 30. Mono PCM Modes

32/24/16 BCLKs

CHANNEL 1

CHANNEL 2

CHANNEL N

8 TO 32 BCLKs

24 OR 16 BCLKs

BCLK

LRCLK

SDATA I2S

SDATA LJ

SDATA RJ

8 TO 32 BCLKs

MONO CHANNEL

ANY NUMBER BCLKs

BCLK

LRCLK

SDATA I2S

SDATA LJ

SDATA RJ
