SSM2519
Data Sheet
Rev. 0 | Page 22 of 28

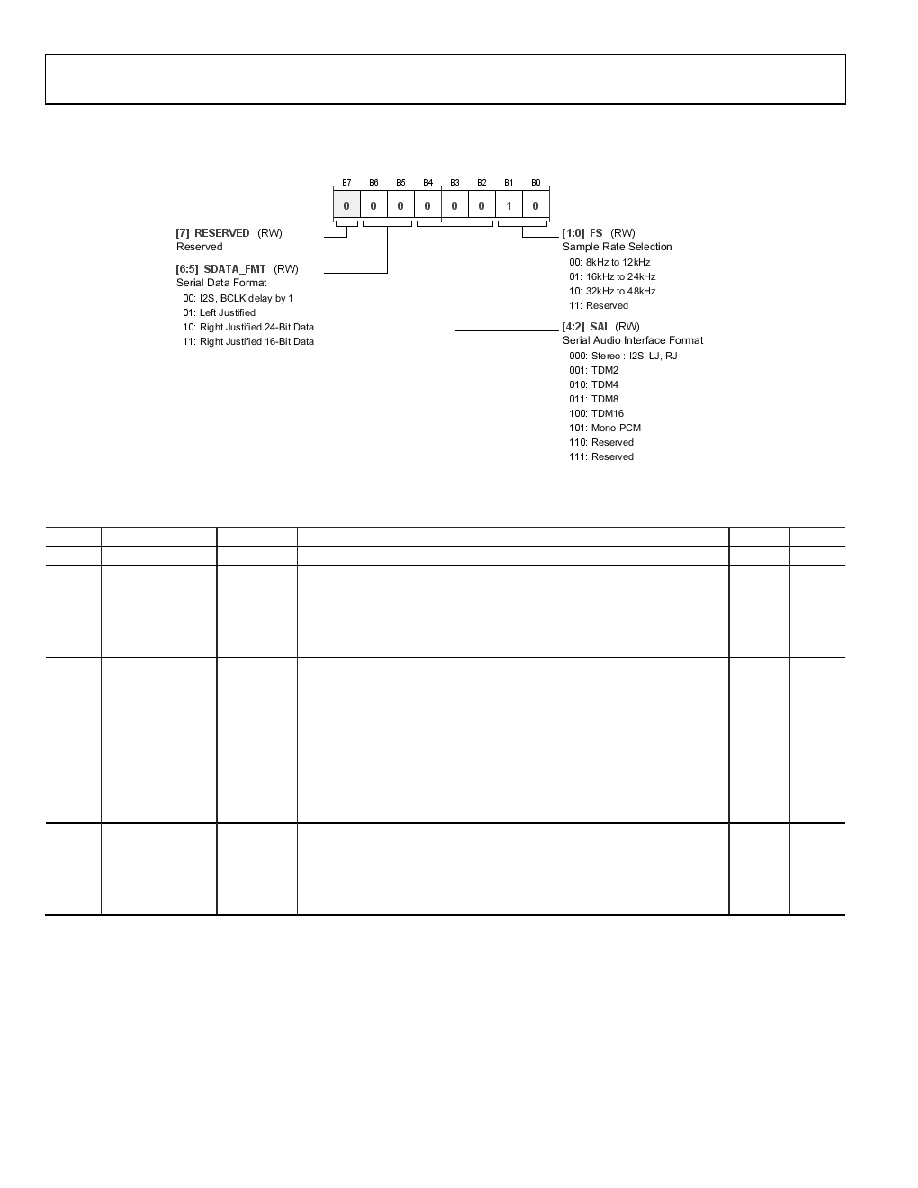

SERIAL AUDIO INTERFACE AND SAMPLE RATE CONTROL REGISTER
Address: 0x02, Reset: 0x02, Name: SAI_FMT1
Table 18. Bit Descriptions for SAI_FMT1
Bits
Bit Name
Settings
Description
Reset
Access
7
RESERVED
Reserved.
0x0
RW
[6:5]
SDATA_FMT
Serial data format.
0x0
RW
00
I2S, BCLK delay by 1
01
Left justified
10
Right justified 24-bit data
11
Right justified 16-bit data
[4:2]
SAI
Serial audio interface format.
0x0
RW
000
Stereo: I2S, LJ, RJ
001
TDM2
010
TDM4
011
TDM8
100
TDM16
101
Mono PCM
110
Reserved
111
Reserved
[1:0]
FS
Sample rate selection.
0x2
RW
00
8 kHz to 12 kHz
01
16 kHz to 24 kHz
10
32 kHz to 48 kHz
11
Reserved
