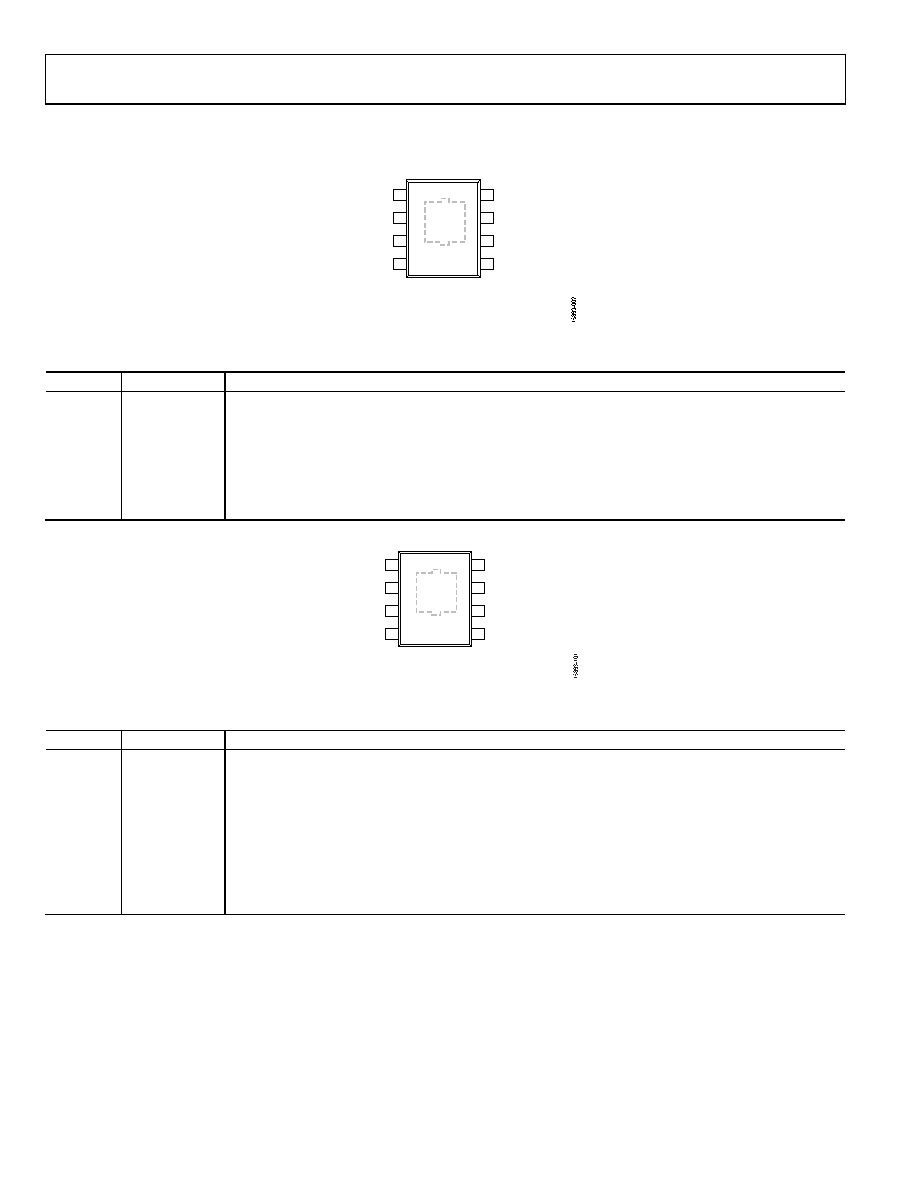

background image
ADA4625-1/ADA4625-2
Data Sheet
Rev. A | Page 8 of 35
PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS
NC 1
–IN 2
+IN 3
V– 4
NC
8
V+
7
OUT
6
NC
5
ADA4625-1
TOP VIEW
(Not to Scale)
NOTES
1. NC = NO CONNECTION. DO NOT CONNECT TO THIS PIN.
2. EXPOSED PAD. CONNECT THE EXPOSED PAD TO GND,
V+ OR V– PLANE, OR LEAVE IT FLOATING.
Figure 3. ADA4625-1 Pin Configuration
Table 6. Pin Function Descriptions, ADA4625-1
Pin No.
Mnemonic
Description
1, 5, 8
NC
No Connection. Do not connect to these pins.
2
−IN
Inverting Input Pin.
3
+IN
Noninverting Input Pin.
4
V−
Negative Supply Voltage Pin.
6
OUT
Output Pin.
7
V+
Positive Supply Voltage Pin.
EPAD
Exposed Pad. Connect the exposed pad to GND, V+ or V− plane, or leave it floating.
OUT A 1
–IN A 2
+IN A 3
V– 4
V+
8
OUT B
7
–IN B
6
+IN B
5
ADA4625-2
TOP VIEW
(Not to Scale)
NOTES
1. EXPOSED PAD. CONNECT THE EXPOSED PAD TO GND,
V+ OR V– PLANE, OR LEAVE IT FLOATING.
Figure 4. ADA4625-2 Pin Configuration
Table 7. Pin Function Descriptions, ADA4625-2
Pin No.
Mnemonic
Description
1
OUT A
Output Pin for Channel A.
2
−IN A
Inverting Input Pin for Channel A.
3
+IN A
Noninverting Input Pin for Channel A.
4
V−
Negative Supply Voltage Pin.
5
+IN B
Noninverting Input Pin for Channel B.
6
−IN B
Inverting Input Pin for Channel B.
7
OUT B
Output Pin for Channel B.
8
V+
Positive Supply Voltage Pin.
EPAD
Exposed Pad. Connect the exposed pad to GND, V+ or V− plane, or leave it floating.
