ASM3P623S00A/B/C/D/E/F

rev 1.0

Zero Cycle Slip Peak EMI Reduction IC

7 of 16

Notice: The information in this document is subject to change without notice.

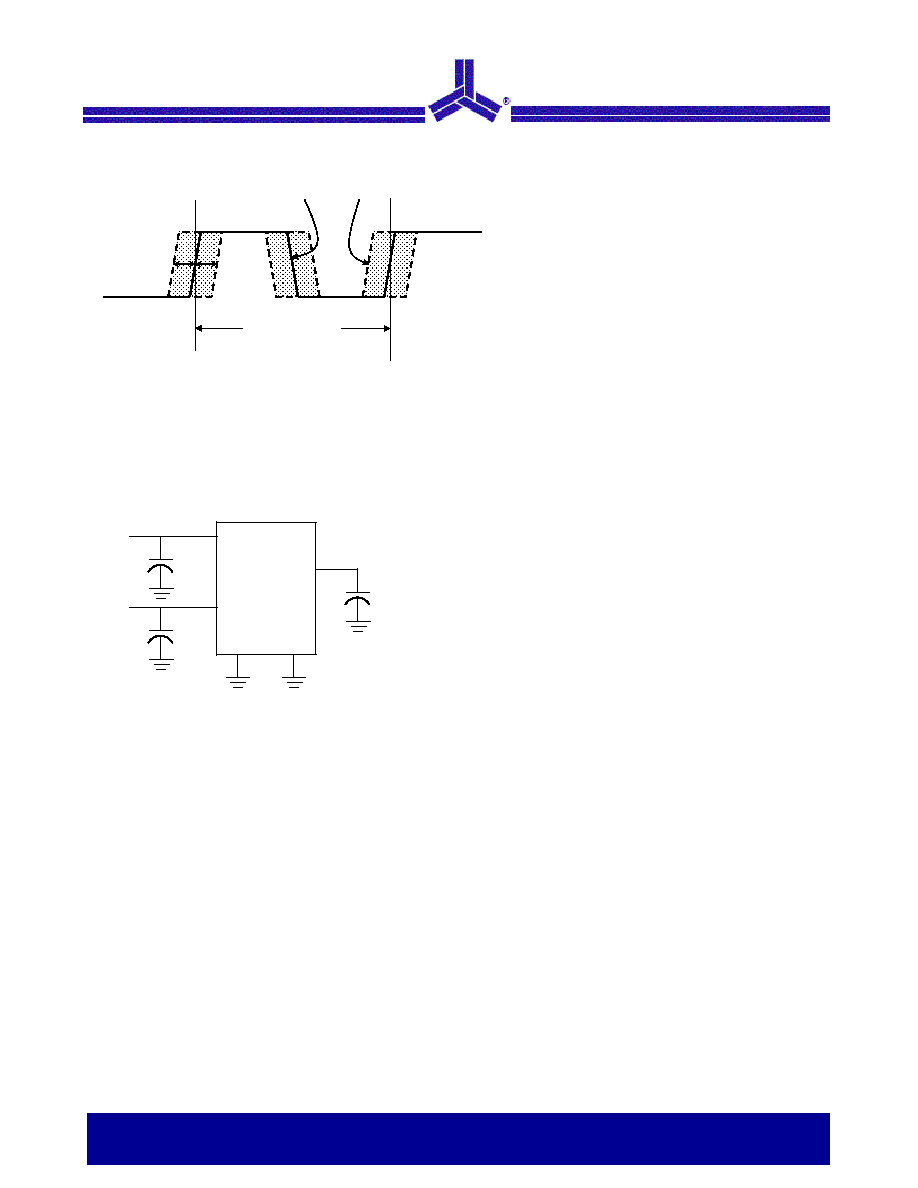

Test Circuits

-Nd

One clock cycle

N=1

+Nd

Input

Modulated

Output

Nd represents the differential cycle slip

when spread spectrum is ON

Nd = ± 0.125 in the example

Differential cycle slip

VDD

GND

CLKOUT

CLOAD

OUTPUTS

TEST CIRCUIT # 1

0.1uF
