Data Sheet
AD8417-2
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
analog.com
Rev. 0 | 5 of 15

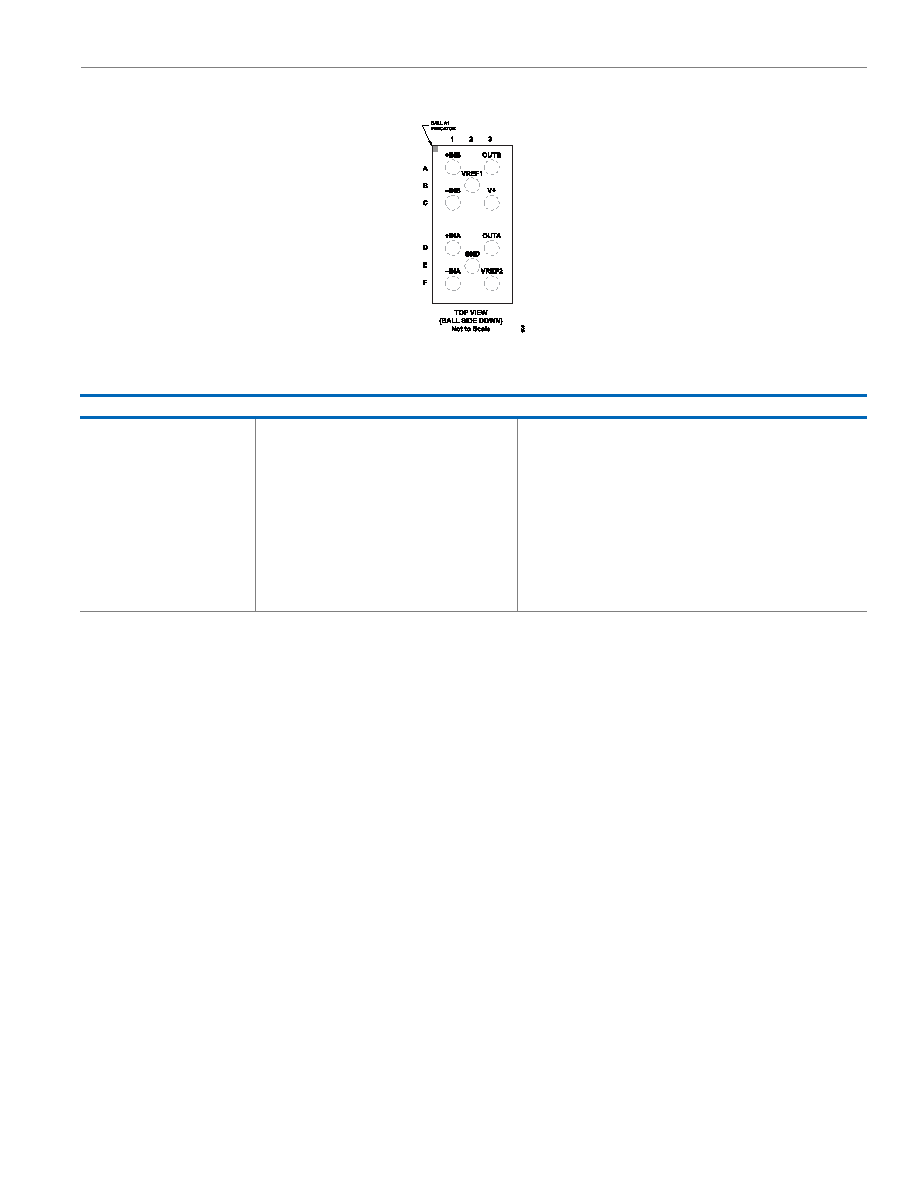

Figure 3. Pin Configuration
Table 5. Pin Function Descriptions
Pin No.
Mnemonic
Description
A1
+INB
Positive Input, Channel B
A3
OUTB
Output, Channel B
B2
VREF1
Reference Input 1
C1
–INB
Negative Input, Channel B
C3
V+
Supply
D1
+INA
Positive Input, Channel A
D2
OUTA
Output, Channel A
E2
GND
Ground
F1
−INA
Negative Input, Channel A
F2
VREF2
Reference Input 2
