Data Sheet
AD8417-2
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 6 of 15

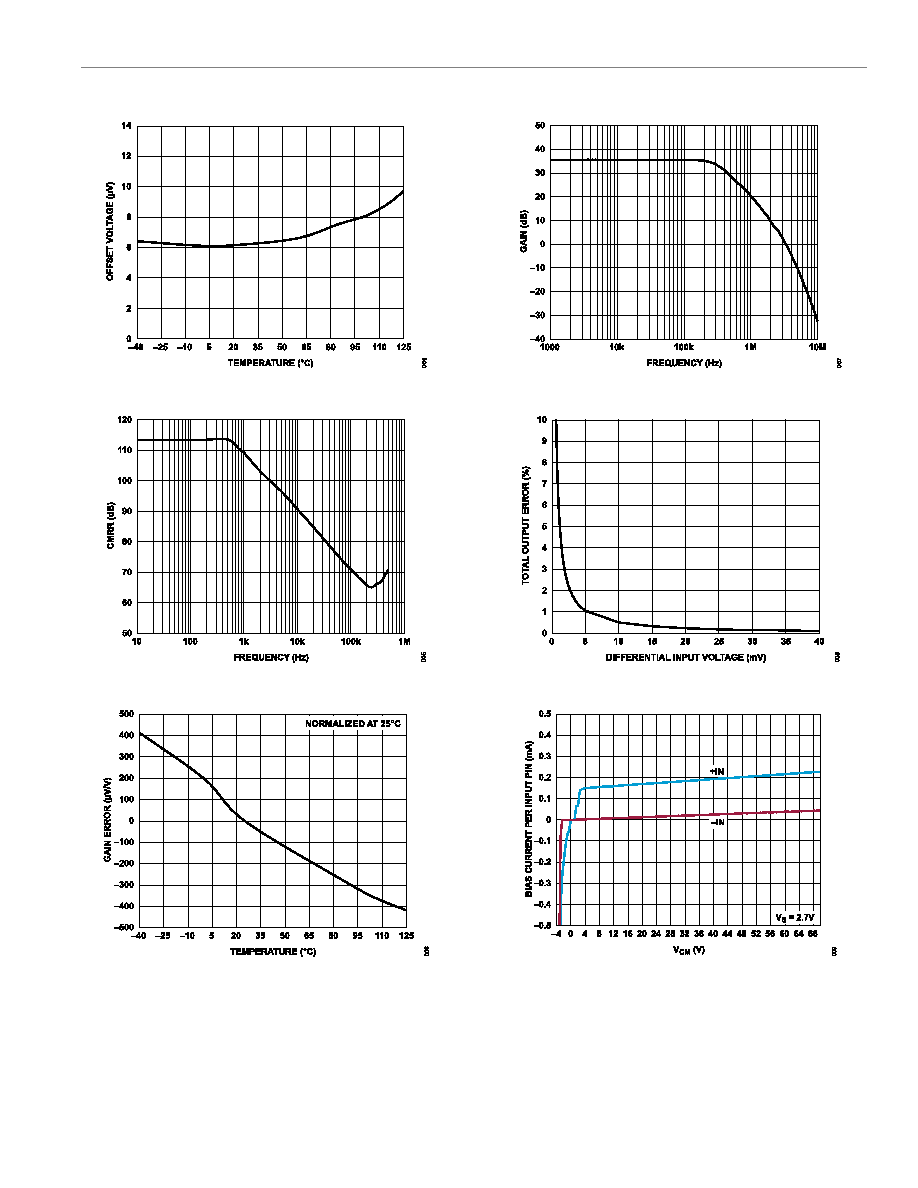

Figure 4. Typical Offset Voltage Drift vs. Temperature
Figure 5. Typical CMRR vs. Frequency
Figure 6. Typical Gain Error vs. Temperature
Figure 7. Typical Small Signal Bandwidth (VOUT = 200 mV p-p)
Figure 8. Total Output Error vs. Differential Input Voltage
Figure 9. Bias Current per Input Pin vs. VCM
