CASES

Materials

Header Cold Rolled Steel/Nickel/Gold

Cover

Kovar/Nickel

Pins

#52 alloy/Gold

compression glass seal

Case dimensions in inches (mm)

Tolerance ±0.005 (0.13) for three decimal places

±0.01 (0.2) for two decimal places

unless otherwise specified

See Case U for pin configuration

1.505 max (38.23)

3.005 (76.33) max.

Note: Pins are shown for Case U1.

Angled corner indicates pin one

Case U maximum dimensions, Rev B, September 27 2005

Please refer to the numerical dimensions for accuracy. All information is believed to be accurate,

but no responsibility is assumed for errors or omissions. Interpoint reserves the right to make

changes in products or specifications without notice.

Copyright © 1999-2005 Interpoint Corp. All rights reserved.

CAUTION

Heat from reflow or wave soldering may damage the device.

Solder pins individually with heat application not exceeding 300°C for 10 seconds per pin

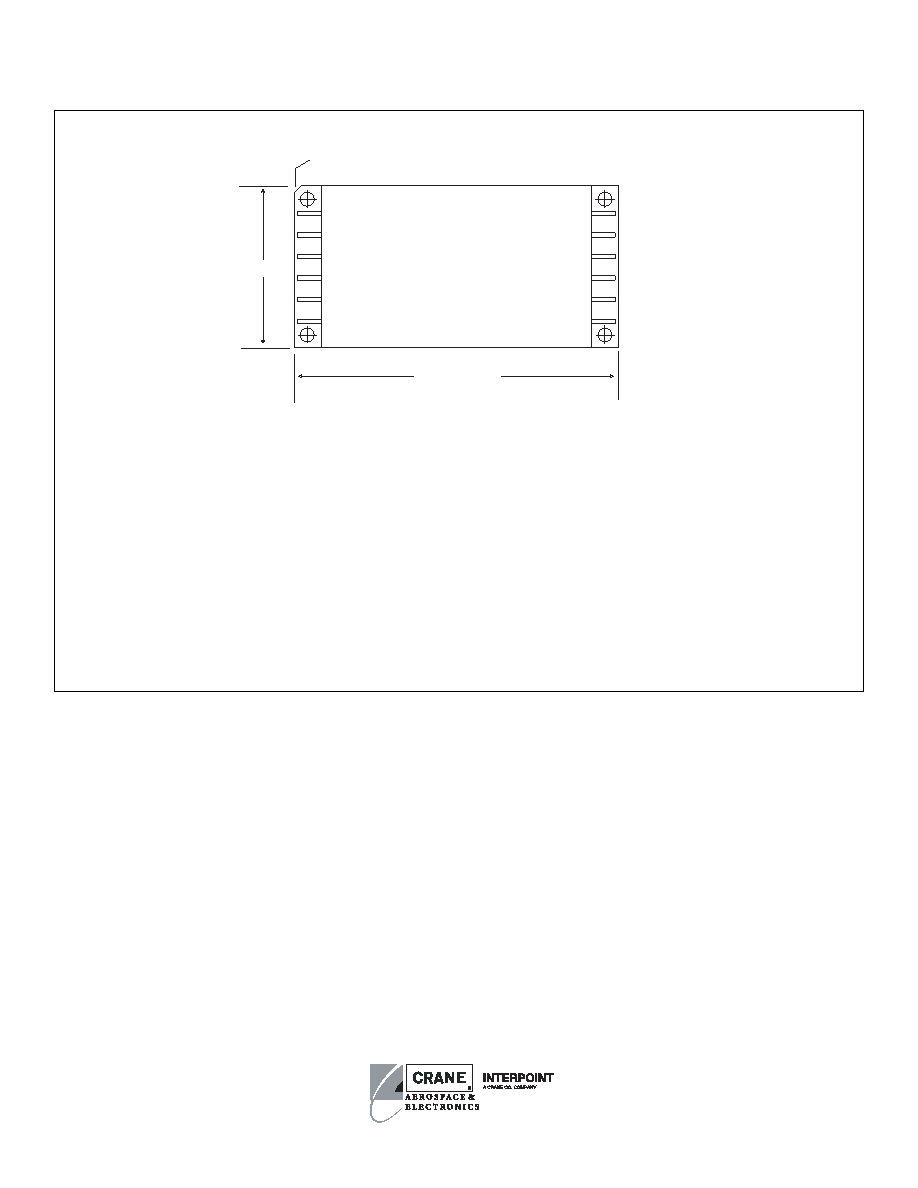

CASE U MAXIMUM DIMENSIONS

TOP VIEW (PIN SIDE)
