Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

Floating Electrode (FF-CAP), High Voltage with Flexible Termination C0G Dielectric,

500 – 3,000 VDC (Commercial & Automotive Grade)

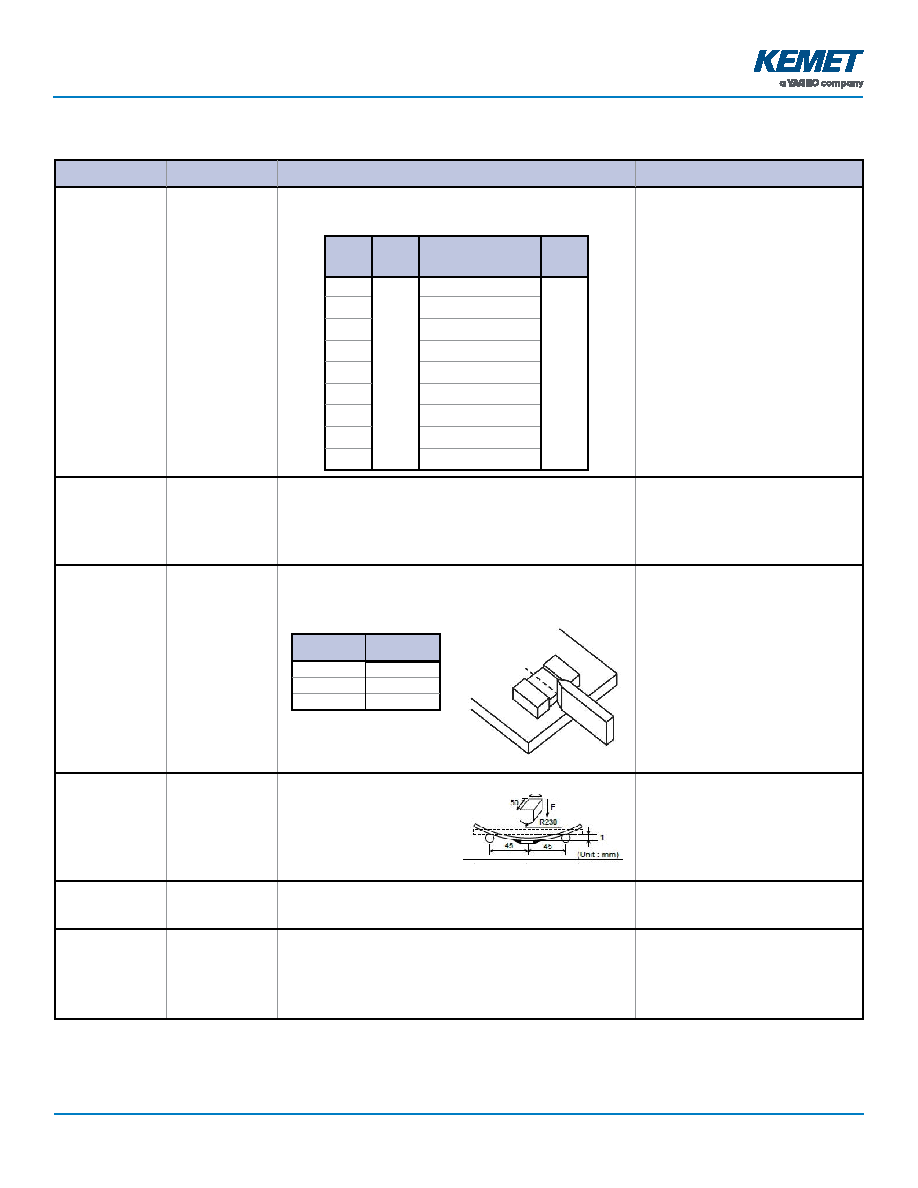

Table 4 – Performance & Reliability: Test Methods and Conditions cont.

Stress

Reference

Test Condition

Limits

Dielectric

Withstanding

Voltage (DWV)

KEMET Internal

See Dielectric Withstanding Voltage (DWV) Table

(5 ±1 seconds and charge/discharge not exceeding 50 mA)

EIA

Case

Size

500 V

630 V

≥ 1,000

V

0603

150%

of rated

voltage

130% of rated voltage

120%

of rated

voltage

0805

< 620pF 150% of rated voltage

≥ 620pF 130% of rated voltage

1206

< 5.1nF 150% of rated voltage

≥ 5.1nF 130% of rated voltage

1210

< 7.5nF 150% of rated voltage

≥ 7.5nF 130% of rated voltage

1808

< 5.1nF 150% of rated voltage

≥ 5.1nF 130% of rated voltage

1812

< 12nF 150% of rated voltage

≥ 12nF 130% of rated voltage

1825

< 22nF 150% of rated voltage

≥ 22nF 130% of rated voltage

2220

< 27nF 150% of rated voltage

≥ 27nF 130% of rated voltage

2225

< 33nF 150% of rated voltage

≥ 33nF 130% of rated voltage

Cap: Initial Limit

DF: Initial Limit

IR: Initial Limit

Withstand test voltage without

insulation breakdown or damage.

Aging Rate

(Maximum %

Capacitance

Loss/Decade Hour)

KEMET Internal

Maximum % capacitance loss/decade hour

0% Loss/Decade Hour

Terminal

Strength

KEMET Internal

Shear stress test per specific case size,

Time: 60 ±1 second.

No evidence of mechanical damage

Case Size

Force

0603

5N

0805

9N

≥ 1206

18N

Board Flex

AEC-Q200-005

Standard Termination

System 2.0 mm

Flexible Termination

System 3.0 mm

Test Time: 60± 5 seconds

Ramp Time: 1 mm/second

No evidence of mechanical damage

Solderability

J-STD-002

Condition: 4 hours ±15 minutes at

155°C dry bake apply all methods

Test 245 ±5°C (SnPb & Pb-Free)

Visual Inspection.

95% coverage on termination.

No leaching

Temperature

Cycling

JESD22

Method JA-104

1,000 cycles (−55°C to +125°C)

2 - 3 cycles per hour

Soak Time: 1 or 5 minute

Measurement at 24 hours ±4 hours

after test conclusion.

Cap: Initial Limit

DF: Initial Limit

IR: Initial Limit
