InputVoltage,V (V)
I
DifferentialInputVoltage,V
(mV)
ID
Load=1k
to VCC
EnableGVoltage(V)
DifferentialInputVoltage,V
(mV)
ID
8
AM26LS32AC, AM26LS32AI, AM26LS32AM
AM26LS33AC, AM26LS33AM
SLLS115F – OCTOBER 1980 – REVISED SEPTEMBER 2016
www.ti.com
Product Folder Links: AM26LS32AC AM26LS32AM AM26LS33AM
Submit Documentation Feedback
Copyright © 1980–2016, Texas Instruments Incorporated

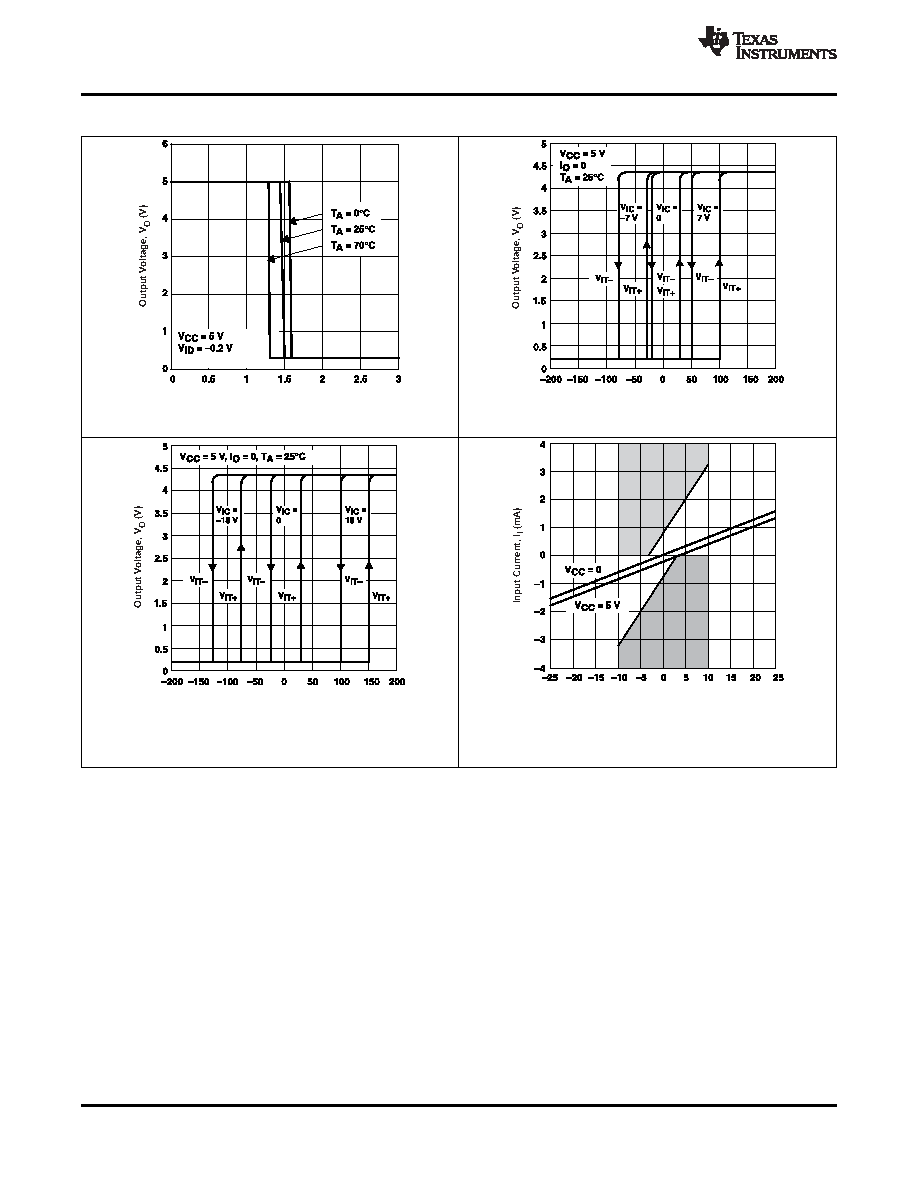

Typical Characteristics (continued)
Figure 7. Output Voltage vs Enable G Voltage
Figure 8. AM26LS32A Output Voltage
vs Differential Input Voltage
Figure 9. AM26LS33A Output Voltage
vs Differential Input Voltage
The unshaded area shows requirements of paragraph 4.2.1
of ANSI Standards EIA/TIA-422-B and EIA/TIA-423-B.
Figure 10. Input Current vs Input Voltage
