ADL8100ACPZN-R7 Scheda tecnica(PDF) 13 Page - Analog Devices

Il numero della parte ADL8100ACPZN-R7
Spiegazioni elettronici  GaAs, pHEMT, MMIC, Low Noise Amplifier, 0.01 GHz to 20 GHz
PDF  27 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Produttore elettronici  AD [Analog Devices]
Homepage  http://www.analog.com
Logo AD - Analog Devices

ADL8100ACPZN-R7 Scheda tecnica(HTML) 13 Page - Analog Devices

Back Button ADL8100ACPZN-R7 Datasheet HTML 9Page - Analog Devices ADL8100ACPZN-R7 Datasheet HTML 10Page - Analog Devices ADL8100ACPZN-R7 Datasheet HTML 11Page - Analog Devices ADL8100ACPZN-R7 Datasheet HTML 12Page - Analog Devices ADL8100ACPZN-R7 Datasheet HTML 13Page - Analog Devices ADL8100ACPZN-R7 Datasheet HTML 14Page - Analog Devices ADL8100ACPZN-R7 Datasheet HTML 15Page - Analog Devices ADL8100ACPZN-R7 Datasheet HTML 16Page - Analog Devices ADL8100ACPZN-R7 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 27 page
background image
Data Sheet
ADL8100
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 13 of 27

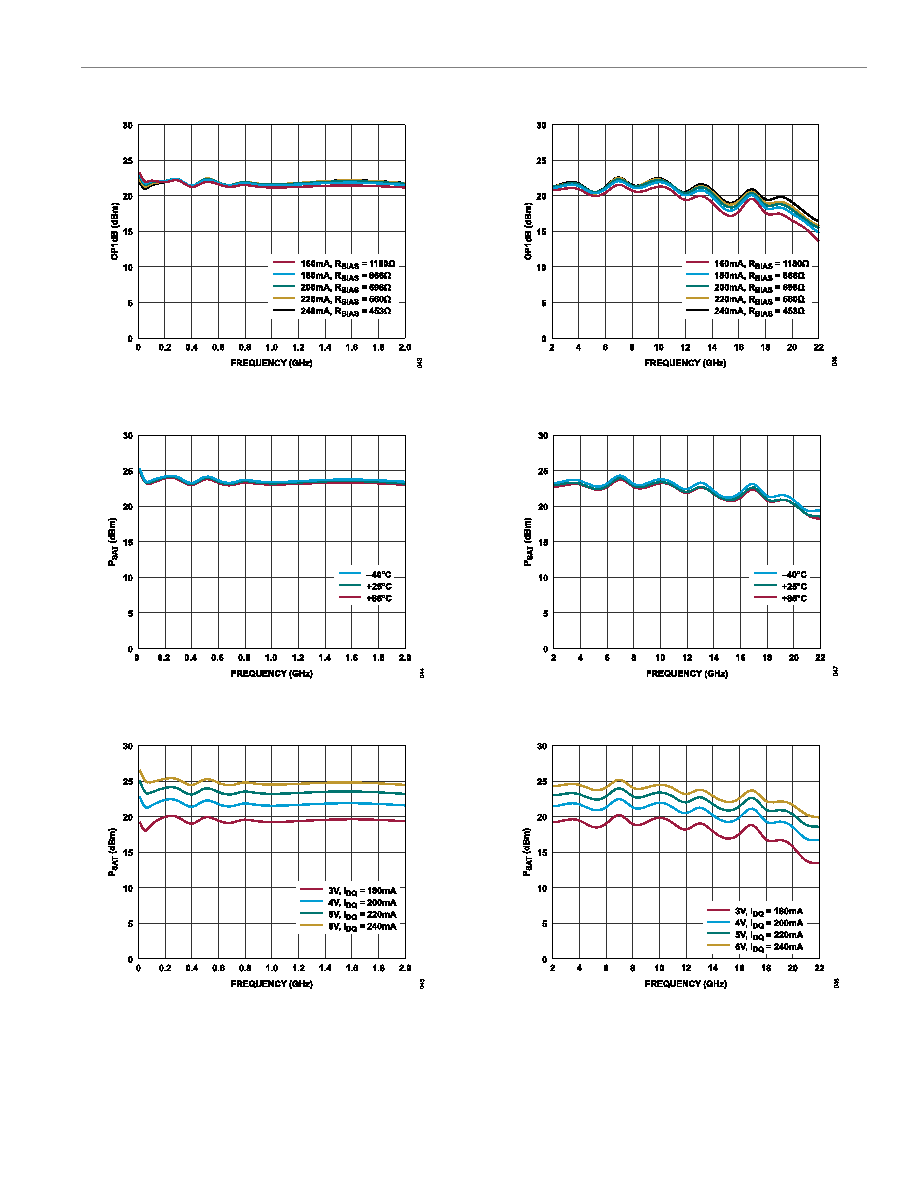

Figure 43. OP1dB vs. Frequency for Various IDQ and RBIAS Values,
10 MHz to 2 GHz, VDD = 5 V
Figure 44. PSAT vs. Frequency for Various Temperatures, 10 MHz to 2 GHz,
VDD = 5 V, IDQ = 220 mA, RBIAS = 560 Ω
Figure 45. PSAT vs. Frequency for Various Supply Voltages and IDQ Values,
10 MHz to 2 GHz, RBIAS = 560 Ω
Figure 46. OP1dB vs. Frequency for Various IDQ and RBIAS Values,
2 GHz to 22 GHz, VDD = 5 V
Figure 47. PSAT vs. Frequency for Various Temperatures, 2 GHz to 22 GHz,
VDD = 5 V, IDQ = 220 mA, RBIAS = 560 Ω
Figure 48. PSAT vs. Frequency for Various Supply Voltages and IDQ Values,
2 GHz to 22 GHz, RBIAS = 560 Ω
