Data Sheet
ADL8143
THEORY OF OPERATION
analog.com
Rev. 0 | 13 of 17
The ADL8143 is a wideband LNA that operates from 8 GHz to 14
GHz. A simplified block diagram is shown in Figure 48.
The ADL8143 has internally AC-coupled, single-ended input and
output ports with an impedance that is nominally equal to 50 Ω
over the specified frequency range. While the RF output path is
AC-coupled, there is a DC path to ground on the RFOUT side of
the AC-coupling capacitor. No external matching components are
required. To adjust IDQ, connect an external resistor near the RBIAS
pin.

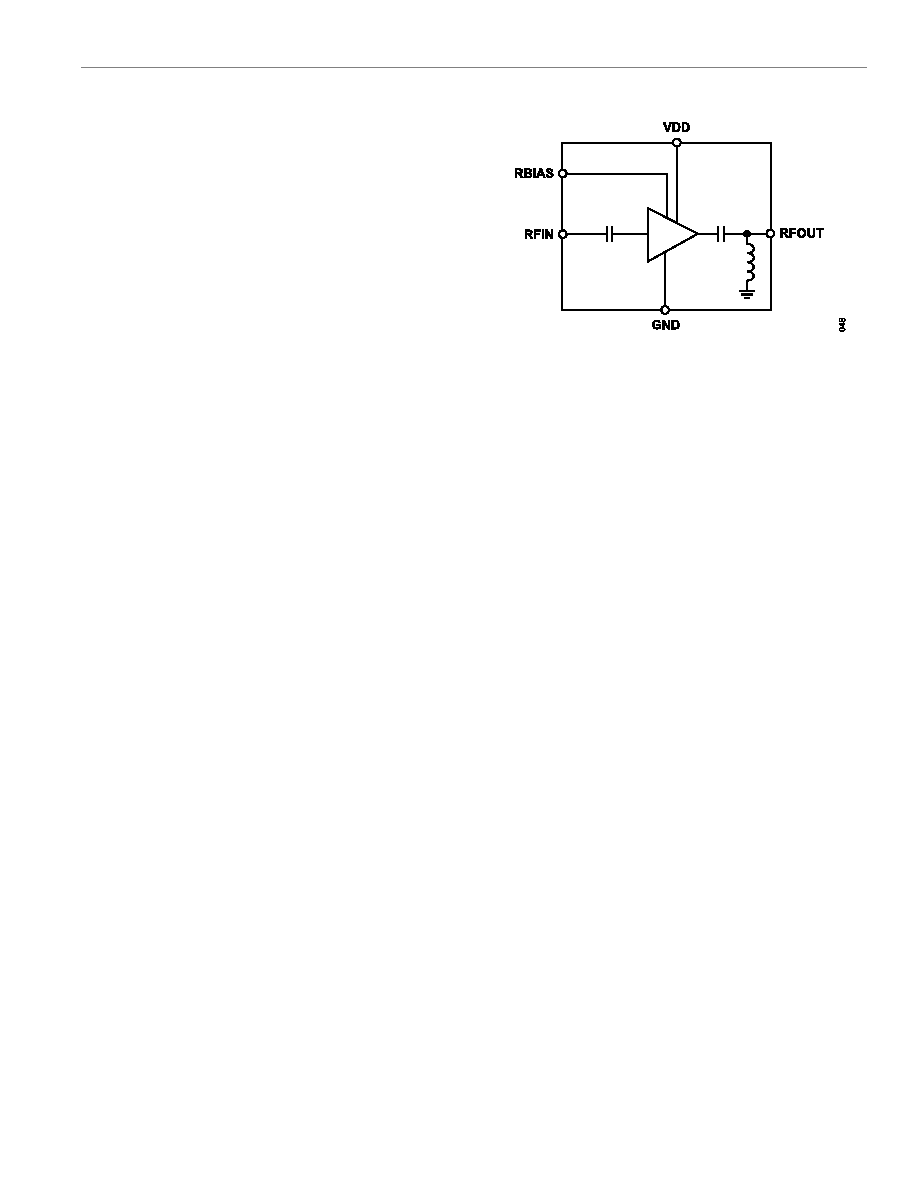

Figure 48. Simplified Schematic
