Data Sheet
AD8000
Rev. C | Page 9 of 17
FREQUENCY (MHz)
–110
–100
–90
–80
–70
–60
–50
–40
–30
–20
1
10
100
VS = 5V
VOUT = 2V p-p
G = +2
RL = 150
LFCSP
SECOND HD
THIRD HD

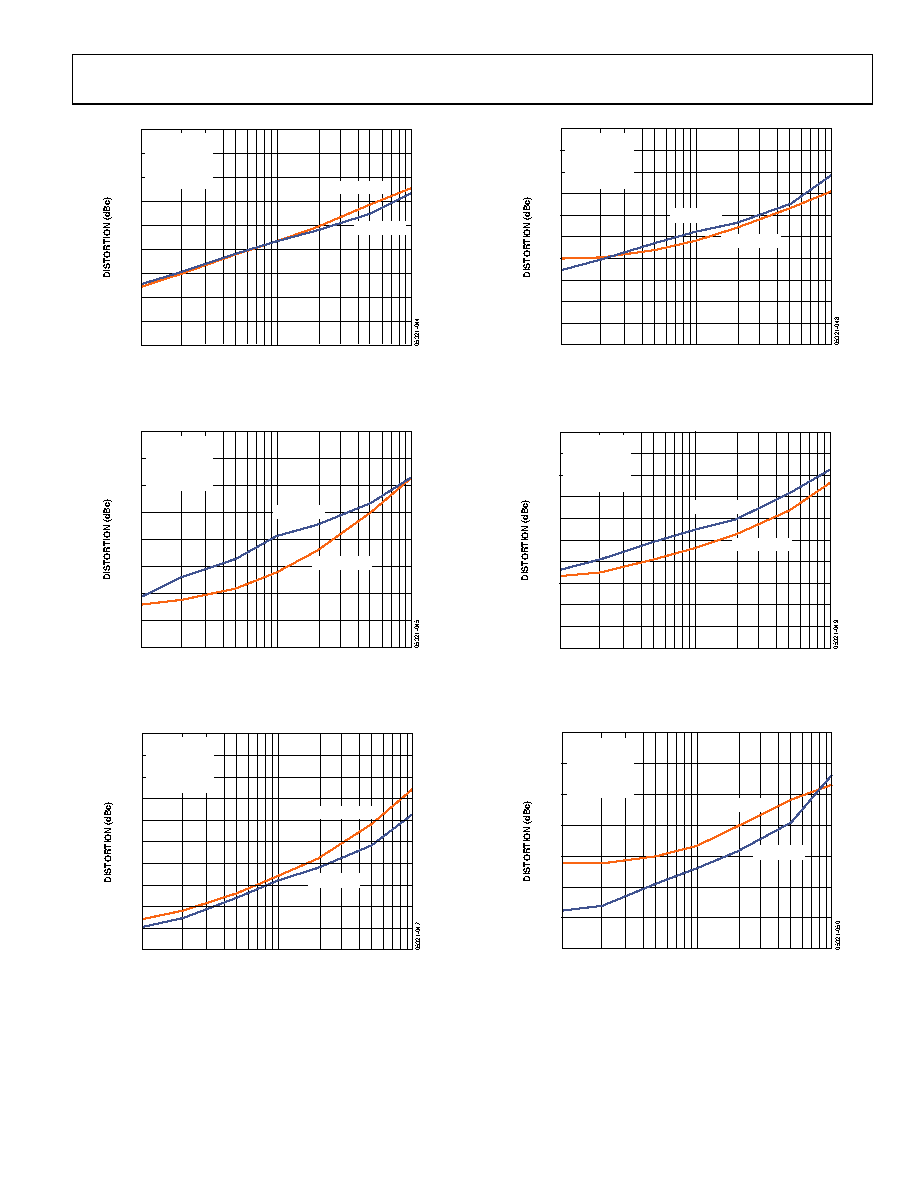

Figure 23. Harmonic Distortion vs. Frequency
–100
–90
–80
–70
–60
–50
–40
–30
–20
FREQUENCY (MHz)
1
10
100
VS = 5V
VOUT = 2V p-p
G = +2
RL = 1k
LFCSP
SECOND HD
THIRD HD
Figure 24. Harmonic Distortion vs. Frequency
FREQUENCY (MHz)
–120
–110
–100
–90
–80
–70
–60
–50
–40
–30
–20
1
10
100
VS = 5V
VOUT = 2V p-p
G = +2
RL = 1k
LFCSP
SECOND HD
THIRD HD
Figure 25. Harmonic Distortion vs. Frequency
FREQUENCY (MHz)
–120
–110
–100
–90
–80
–70
–60
–50
–40
–30
–20
1
10
100
SECOND HD
THIRD HD
VS = 2.5V
VOUT = 2V p-p
G = –1
RL = 150
LFCSP
Figure 26. Harmonic Distortion vs. Frequency
FREQUENCY (MHz)
–120
–110
–100
–90
–80
–70
–60
–50
–40
–30
–20
1
10
100
SECOND HD
THIRD HD
VS = 5V
VOUT = 2V p-p
G = –1
RL = 1k
LFCSP
Figure 27. Harmonic Distortion vs. Frequency
–110
–100
–90
–80
–70
–60
–50
–40
FREQUENCY (MHz)
1
10
100
VS = 5V
VOUT = 2V p-p
G = –1
RL = 150
LFCSP
SECOND HD
THIRD HD
Figure 28. Harmonic Distortion vs. Frequency
