Data Sheet
ADL5906
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 11 of 30

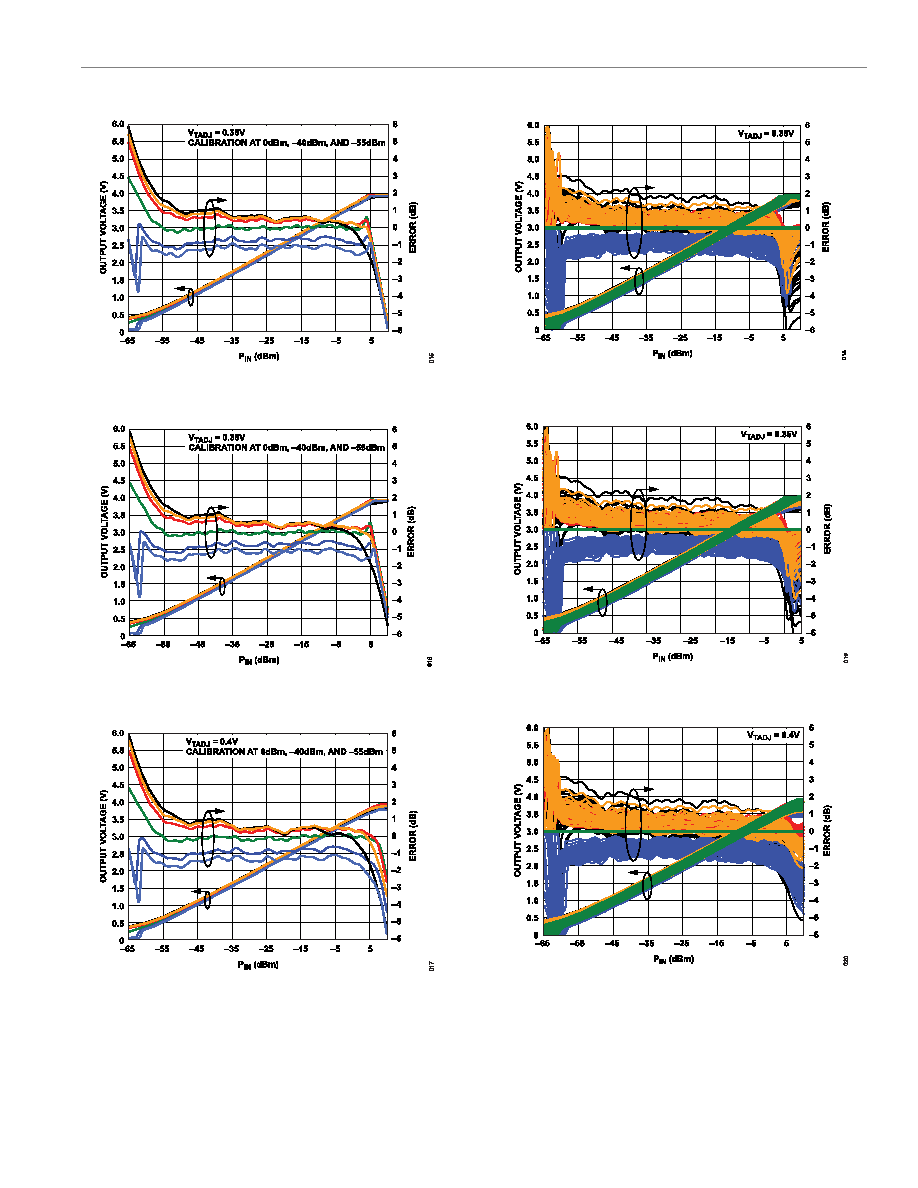

Figure 15. VRMS and Log Conformance Error vs. Input Level and Temperature
at 1.9 GHz
Figure 16. VRMS and Log Conformance Error vs. Input Level and Temperature
at 2.14 GHz
Figure 17. VRMS and Log Conformance Error vs. Input Level and Temperature
at 2.6 GHz
Figure 18. Distribution of Log Conformance Error with Respect to VRMS at
25°C vs. Input Level and Temperature at 1.9 GHz
Figure 19. Distribution of Log Conformance Error with Respect to VRMS at
25°C vs. Input Level and Temperature at 2.14 GHz
Figure 20. Distribution of Log Conformance Error with Respect to VRMS at
25°C vs. Input Level and Temperature at 2.6 GHz
