Data Sheet
ADL5906
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 13 of 30

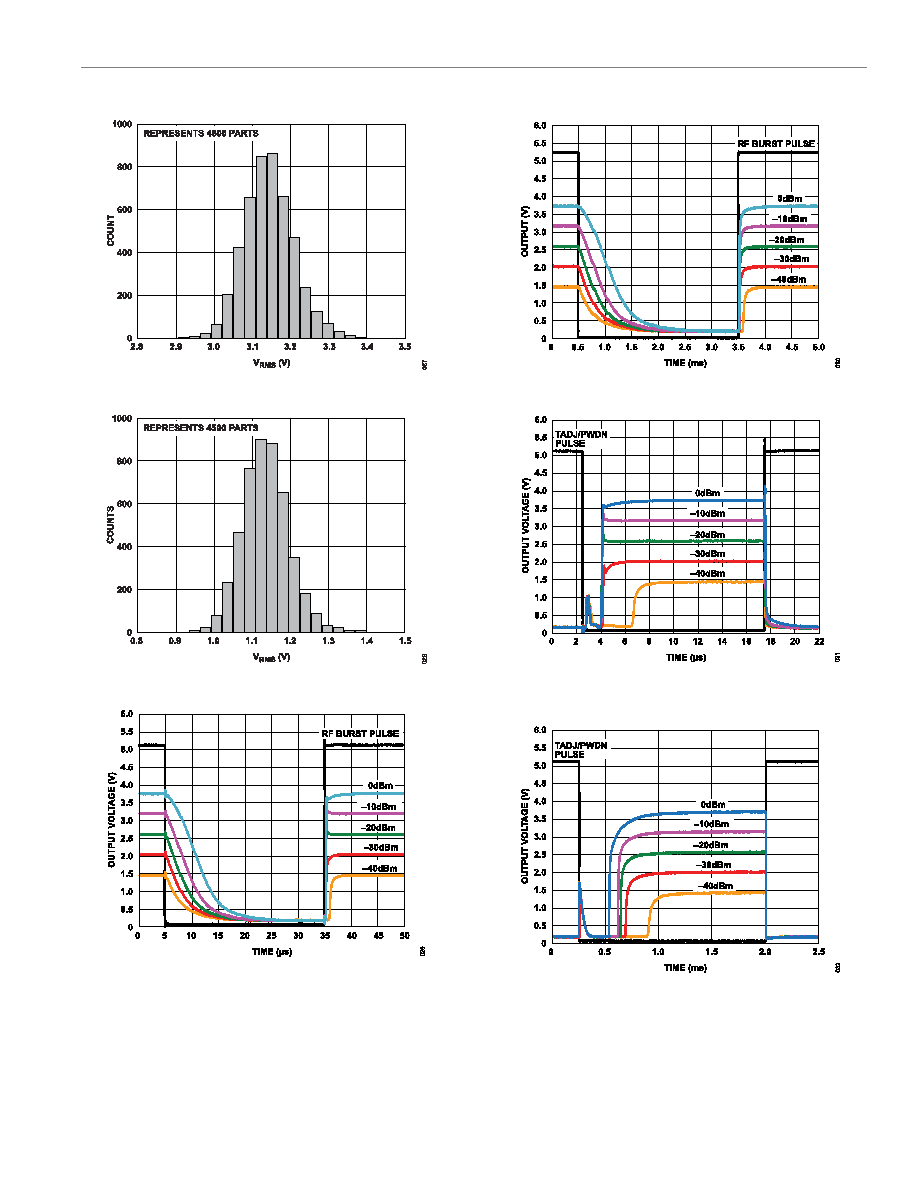

Figure 27. Distribution of VRMS, PIN = −10 dBm, 900 MHz
Figure 28. Distribution of VRMS, PIN = −45 dBm, 900 MHz
Figure 29. Output Response to RF Burst Input, Carrier Frequency = 2.14 GHz,
CRMS = 1 nF
Figure 30. Output Response to RF Burst Input, Carrier Frequency = 2.14 GHz
Figure 31. Output Response Using Power-Down Mode for Various RF Input
Levels, Carrier Frequency = 2.14 GHz, CRMS = 1 nF
Figure 32. Output Response Using Power-Down Mode for Various RF Input
Levels, Carrier Frequency = 2.14 GHz
