Data Sheet
ADL8113

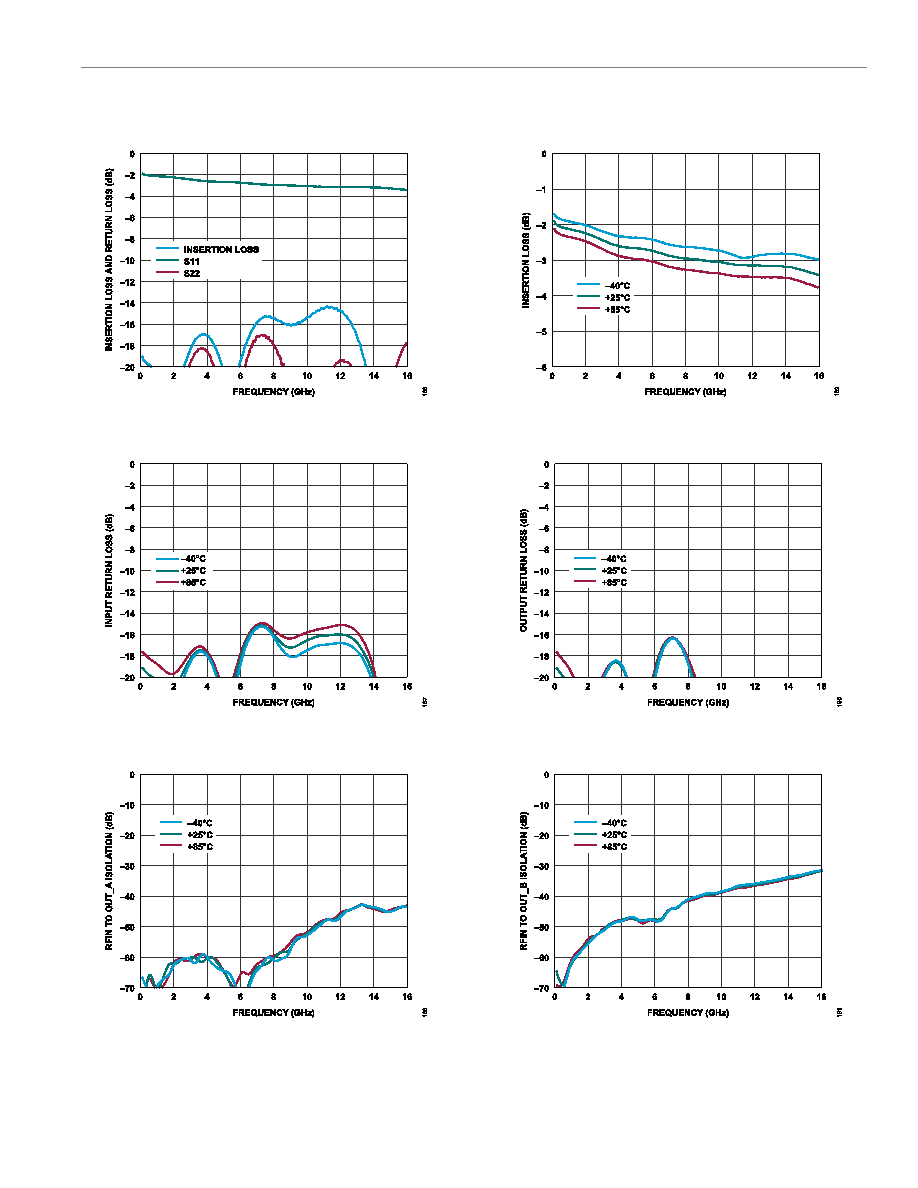

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 28 of 37
INTERNAL BYPASS MODE
Figure 86. Insertion Loss and Return Loss vs. Frequency,
10MHz to 16GHz
Figure 87. Input Return Loss vs. Frequency for Various Temperatures,
10MHz to 16GHz
Figure 88. RFIN to OUT A Isolation vs. Frequency for Various Temperatures,
10MHz to 16GHz
Figure 89. Insertion Loss vs. Frequency for Various Temperatures,
10MHz to 16GHz
Figure 90. Output Return Loss vs. Frequency for Various Temperatures,
10MHz to 16GHz
Figure 91. RFIN to OUT_B Isolation vs. Frequency for Various Temperatures,
10MHz to 16GHz
