Data Sheet
ADL8113
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 33 of 37

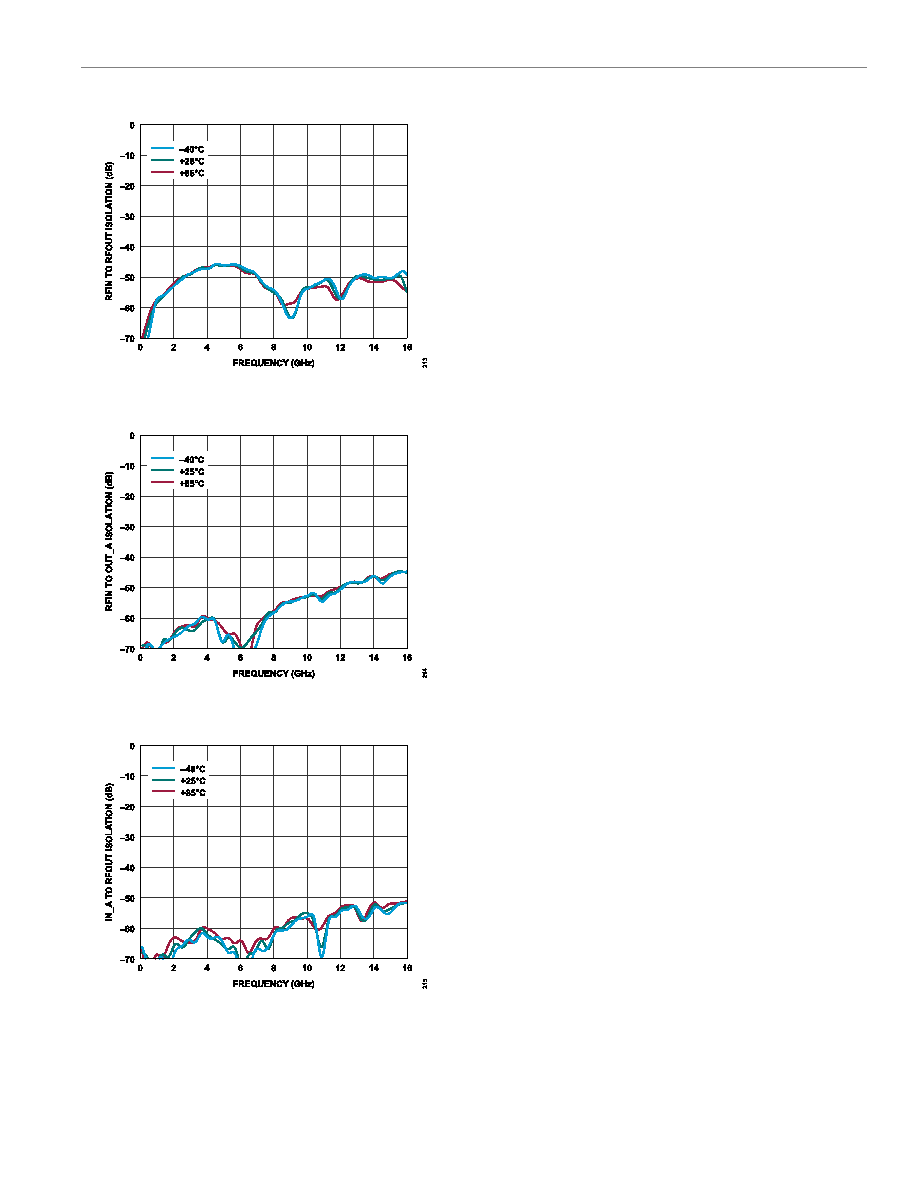

Figure 113. RFIN to RFOUT Isolation vs. Frequency for Various
Temperatures, 10MHz to 16GHz
Figure 114. RFIN to OUT_A Isolation vs. Frequency for Various
Temperatures, 10MHz to 16GHz
Figure 115. IN_A to RFOUT Isolation vs. Frequency for Various Temperature,
10MHz to 16GHz
