CC1010

SWRS047A

Page 104 of 146

threshold for determining what constitutes

a Manchester coding violation can be

configured

RFCON.MLIMIT

RFCON.MVIOL

is set when, in bitmode,

the currently available bit in RFBUF.0 was

determined to violate Manchester coding,

or in bytemode, when one or more of the

bits in the byte currently available in

RFBUF

were determined to violate the

Manchester coding. This can be used, for

example, to detect start of frame and end

of frame delimiter bytes.

Note that even if RFCON.MVIOL is set

when receiving data, RFBUF will still be set

to the "best guess" data received. In

applications

where

Manchester

violations are transmitted, it is therefore

advisable to ignore RFCON.MVIOL at

reception.

In order to be able to send Manchester

violations, MODEM0.DATA_FORMAT must

be changed to NRZ mode for the byte in

question. When in NRZ mode, two bytes

must be sent for each Manchester-coded

byte. A flagrant violation of Manchester

coding could be, for example, the two-byte

sequence

"11001100"-"00110011".

order

provide

this

functionality,

MODEM0.DATA_FORMAT

buffered

much the same way as data so that the

change does not take effect until the

following byte.

During transmission, the desired data

format should be updated in connection

with writing new data to RFBUF. The byte

currently being transmitted from the shift

possible to have a NRZ preamble pattern

with Manchester data following. This is

illustrated in Figure 30.

NRZ Preamble

Byte sync

Data

Preamble

Bit value

Manchester data

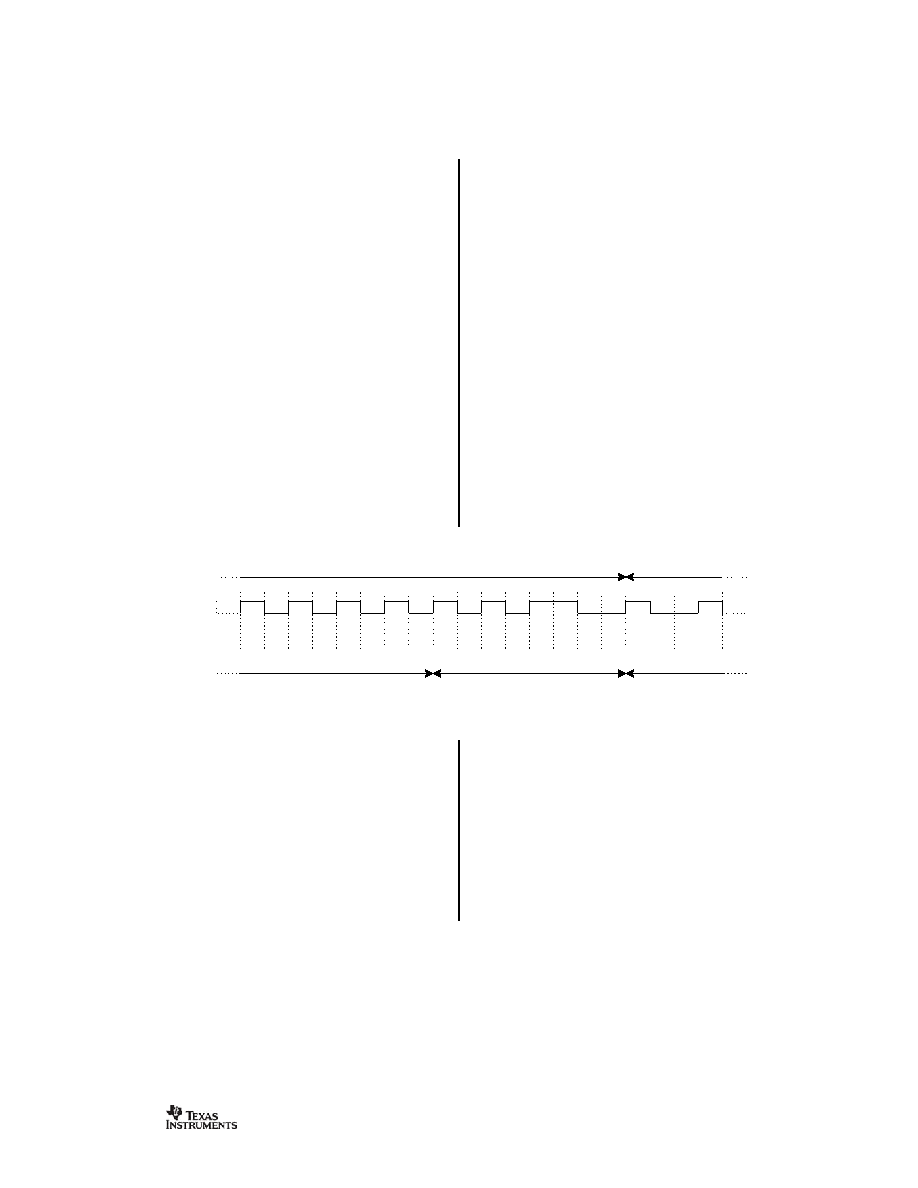

Figure 30. Switching data mode after preamble

Changing the desired data mode during

reception

NRZ

preamble

and

Manchester data is straightforward. A new

value of MODEM0.DATA_FORMAT does not

take effect before an RF interrupt request

generated.

After

having

started

reception using preamble detection/byte

synchronization and the NRZ data mode,

the

DATA_FORMAT

should

set

Manchester.

The

whole

preamble

detection process will then work with NRZ

data and the new DATA_FORMAT will not

take

effect

until

valid

(NRZ)

synchronization byte is found and an

interrupt request generated.

It is not recommended to change the data

format during reception for new protocols,

but

the

functionality

included

for

compatibility with existing protocols.
