Data Sheet
ADPA7005
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 13 of 24

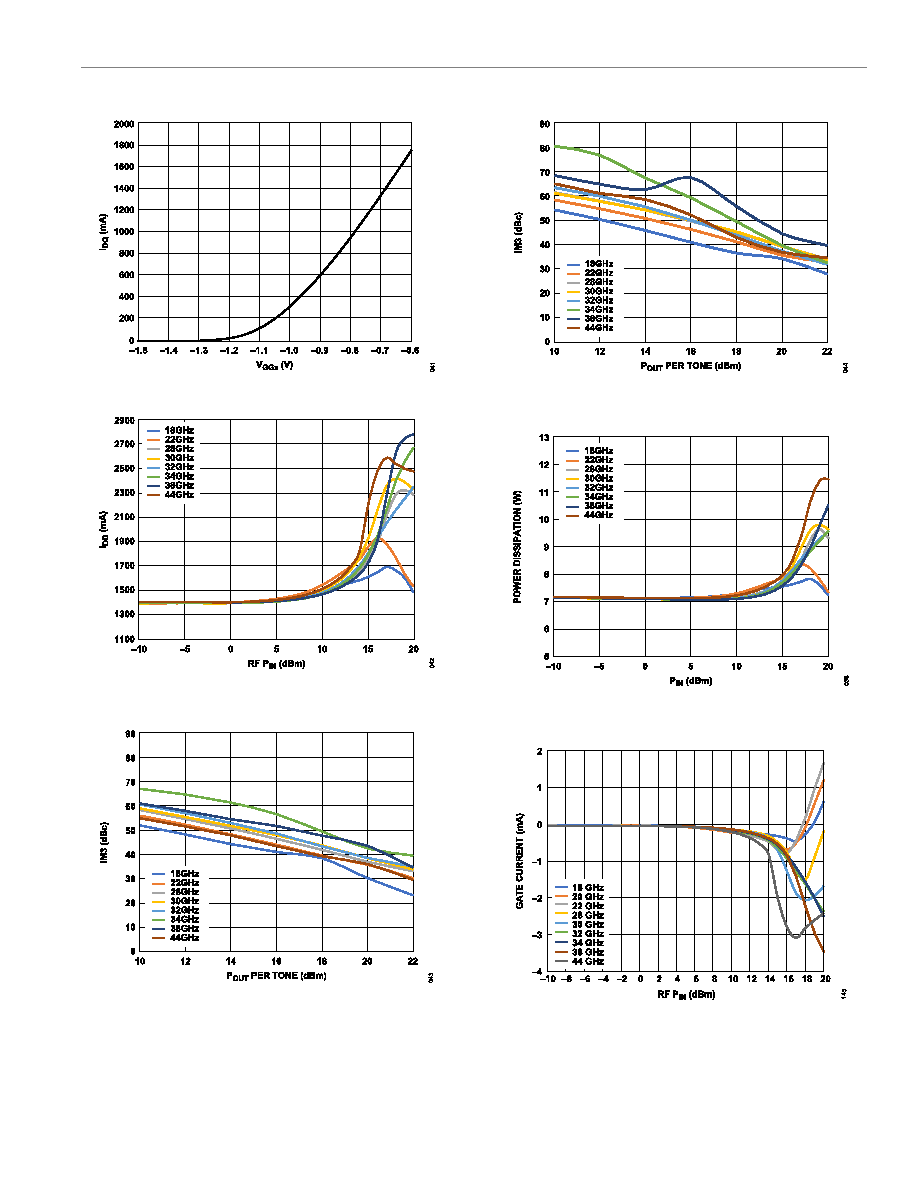

Figure 40. IDQ vs. VGGx
Figure 41. IDD vs. RF PIN at Various Frequencies, VDD = 5 V,
IDQ = 1400 mA
Figure 42. Third-Order Intermodulation Distortion (IM3) vs. POUT per Tone,
VDD = 4 V, IDQ = 1400 mA
Figure 43. Third-Order Intermodulation Distortion (IM3) vs. POUT per Tone,
VDD = 5 V, IDQ = 1400 mA
Figure 44. Power Dissipation vs. PIN at TCASE = 85°C, VDD = 5 V,
IDQ = 1400 mA
Figure 45. Gate Current (IGG) vs. RF PIN at Various Frequencies,
VDD = 5 V, IDQ = 1400 mA
