ID2006SEC-R1 Scheda tecnica(PDF) 6 Page - Wuxi Chipown Micro-electronics limited

Il numero della parte ID2006SEC-R1
Spiegazioni elettronici  High-Side & Low-Side Gate Drive IC
PDF  7 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Produttore elettronici  CHIPOWN [Wuxi Chipown Micro-electronics limited]
Homepage  https://www.chipown.com.cn/en/index.html
Logo CHIPOWN - Wuxi Chipown Micro-electronics limited

ID2006SEC-R1 Scheda tecnica(HTML) 6 Page - Wuxi Chipown Micro-electronics limited

  ID2006SEC-R1 Datasheet HTML 1Page - Wuxi Chipown Micro-electronics limited ID2006SEC-R1 Datasheet HTML 2Page - Wuxi Chipown Micro-electronics limited ID2006SEC-R1 Datasheet HTML 3Page - Wuxi Chipown Micro-electronics limited ID2006SEC-R1 Datasheet HTML 4Page - Wuxi Chipown Micro-electronics limited ID2006SEC-R1 Datasheet HTML 5Page - Wuxi Chipown Micro-electronics limited ID2006SEC-R1 Datasheet HTML 6Page - Wuxi Chipown Micro-electronics limited ID2006SEC-R1 Datasheet HTML 7Page - Wuxi Chipown Micro-electronics limited
Zoom Inzoom in Zoom Outzoom out
 6 / 7 page
background image
ID2006
Chipown
www.chipown.com
Wuxi Chipown Microelectronics Limited
Rev.1.0
6/7
Package Information

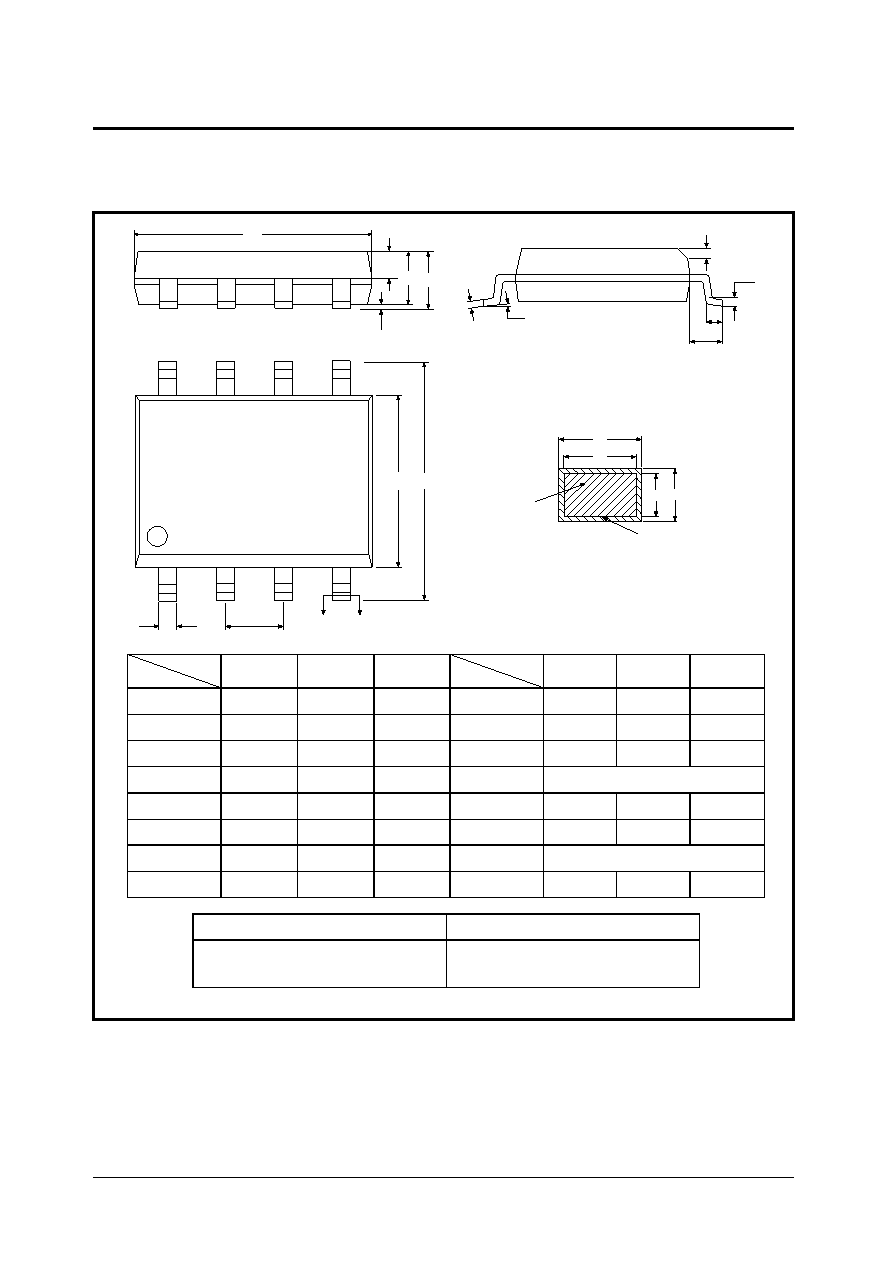

SOP8 Package Outlines and Dimensions
D
A3
A2 A
A1
L
L1
θ
c
0.25
b
e
B
B
E1
E
BASE METAL
SECTION B-B
WITH PLATING
b
b1
c1 c
h
Size
Symbol
Min.
（mm）
Typ.
（mm）
Max.
（mm）
Size
Symbol
Min.
（mm）
Typ.
（mm）
Max.
（mm）
A
-
-
1.75
D
4.70
4.90
5.10
A1
0.10
-
0.225
E
5.80
6.00
6.20
A2
1.30
1.40
1.50
E1
3.70
3.90
4.10
A3
0.60
0.65
0.70
e
1.27BSC
b
0.39
-
0.48
h
0.25
-
0.50
b1
0.38
0.41
0.43
L
0.50
-
0.80
c
0.21
-
0.26
L1
1.05BSC
c1
0.19
0.20
0.21
θ
0
-
8°
Top mark
Package
iDR.
ID2006
YWWXXXXX
SOP8
Note：Y：Year Code；WW：Week Code；XXXXX：Internal Code
Notes:
1. This drawing is subjected to change without notice.
2. Body dimensions do not include mold flash or protrusion.
