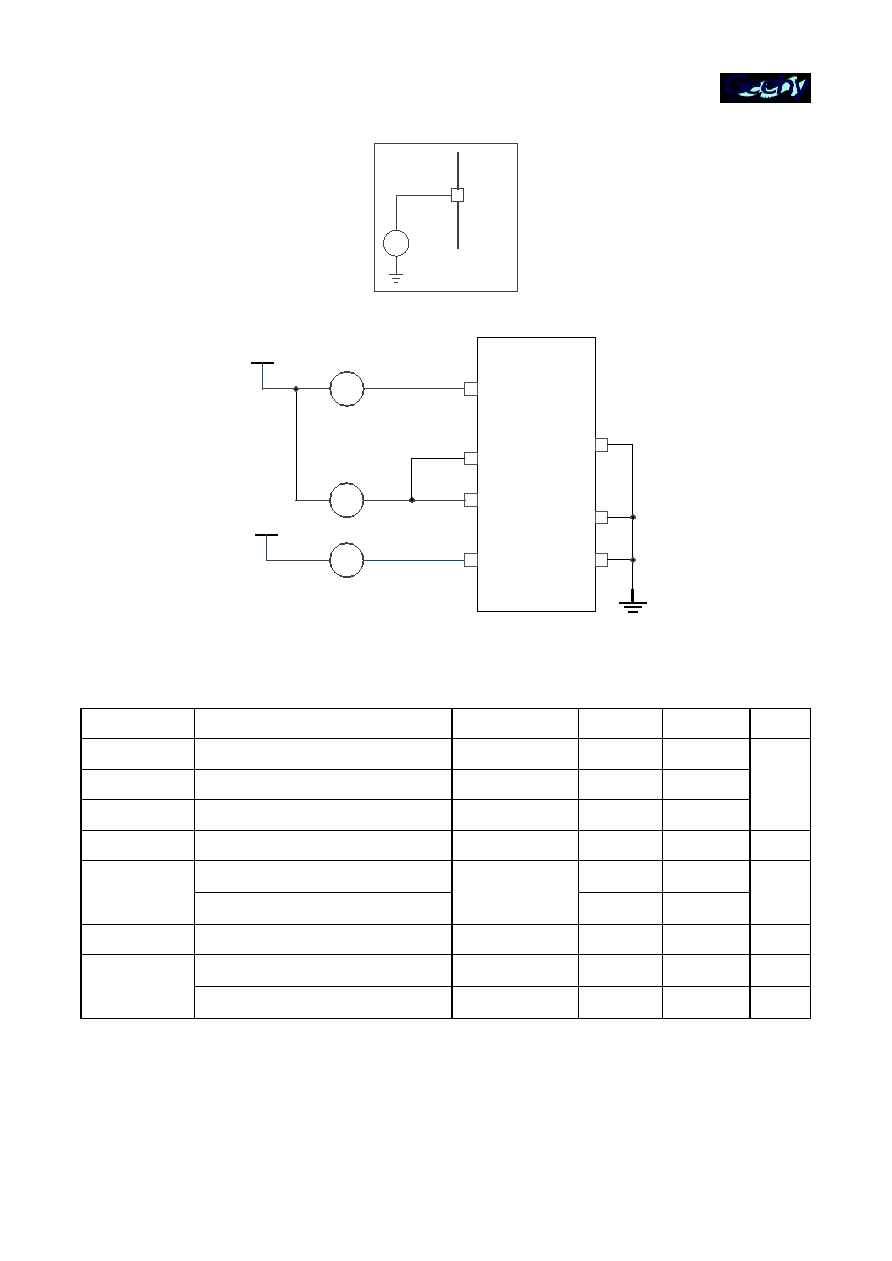

Figure 10 Pin Input Voltage Measurement Scheme

MCU pin

VIN

Figure 11 Power Consumption Measurement Scheme

IDDA

IDD

IDD_VBAT

MCU

VBAT

VDD

VDDA

VDDX

VREF+

VBAT

VSS

VSSA

VREF-

5.2.

Test under general operating conditions

Table 12 General Operating Conditions

Symbol

Parameter

Conditions

Min

Max

Unit

fHCLK

Internal AHB clock frequency

120

MHz

fPCLK1

Internal APB1 clock frequency

fPCLK2

Internal APB2 clock frequency

120

VDD

Main power supply voltage

3.6

VDDA

Analog power supply voltage

(When neither ADC nor DAC is used)

Must be the same

as VDD

VDD

3.6

Analog power supply voltage

(When ADC and DAC are used)

2.4

3.6

VBAT

Power supply voltage of backup domain

1.8

3.6

Ambient temperature (temperature

number 6)

Maximum power

dissipation

-40

℃

Ambient temperature (temperature

number 7)

Maximum power

dissipation

-40

105

℃

5.3.

Absolute maximum ratings

If the load on the device exceeds the absolute maximum rating, it may cause permanent

damage to the device. Here, only the maximum load that can be borne is given, and there is no
