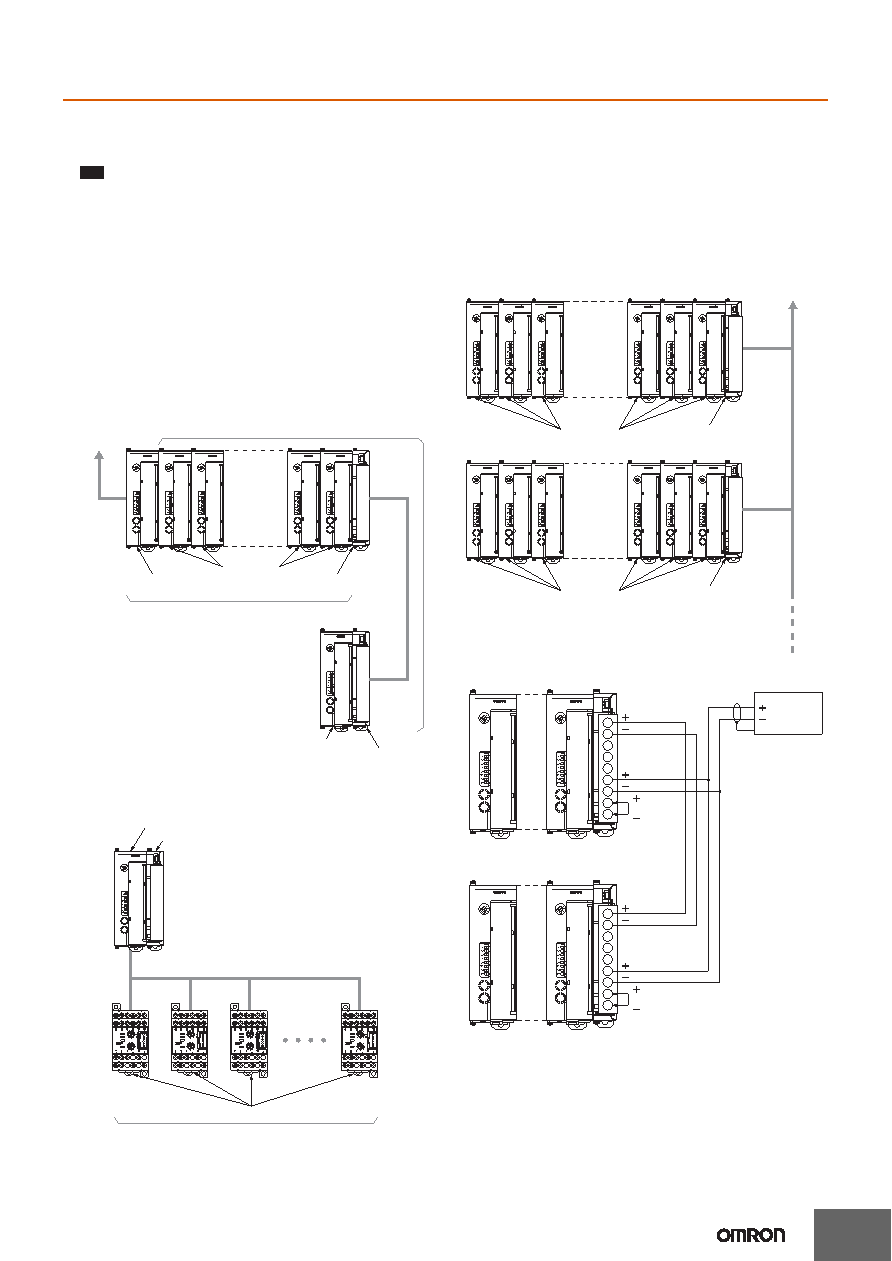

11 / 24 page  EJ1 11 Connection Precautions Communications Unit Number Setting • You can set communications unit numbers 0 to 7 for HFUs. With , you can also set communications unit numbers 32 to 39. • You can set communications unit numbers 0 to 63 for Basic Units unless connected to an HFU, in which case you can set communications unit numbers 0 to 31. Restrictions on the Number of Units That Can Be Connected Restrictions for HFUs • One EJ1N-HFU can manage up to 32 Basic Units (EJ1N-TC4/ TC2). • Up to 16 Units can be connected side by side including the EJ1N- HFU. The End Unit is not included in the 16 Units. • To use the CX-Thermo Support Software from a computer to set EJ1N-TC4/EJ1N-TC2 Basic Units that are connected with distributed placement, use a communications cable to connect port A (on the terminal block) on both Units. Restrictions When Connecting with the G3ZA • Up to 8 G3ZA Multi-channel Power Controllers can be connected to one Basic Unit (EJ1N-TC4/TC2). Restrictions for Basic Units • When the system is configured of only Basic Units (EJ1N-TC4/ TC2), up to 64 Units can be connected. • Distributed placement is possible by using End Units (EJ1C-EDU). • Up to 16 Units can be connected side by side. The End Unit is not included in the 16 Units. • To use the CX-Thermo Support Software from a computer to set EJ1N-TC4/EJ1N-TC2 Basic Units that are connected with distributed placement, use a communications cable to connect port A (on the terminal block) on both Units. Wiring for Distributed Placement Note: 1. To use the CX-Thermo Support Software from a computer to set EJ1N-TC4/EJ1N-TC2 Basic Units that are connected with distributed placement, use a communications cable to connect port A (terminals 1 and 2 on the terminal block) on both Units. 2. This wiring is for when the EJ1N-HFU is not used. V1.2 COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-HFU BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE EJ1N-TC4 or EJ1N-TC2 One HFU can manage up to 16 Basic Units (when using the EJ1N-TC4: 4 channels × 16 Units = 64 channels) EJ1C-EDU EJ1C-EDU Port B Port B EJ1N-HFU Port C EJ1N-TC4 or EJ1N-TC2 Up to 16 Units can be connected side by side. Note: End Units are not included in the number of Units that can be connected. To the host device COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE EJ1C-EDU Up to 8 G3ZA Power Controllers can be connected to one Basic Unit. EJ1N-TC4 or EJ1N-TC2 G3ZA G3ZA connection port SW2 SW1 ERROR OCC SD/RD READY SW2 SW1 ERROR OCC SD/RD READY SW2 SW1 ERROR OCC SD/RD READY SW2 SW1 ERROR OCC SD/RD READY Port B To the host device Port B COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE EJ1C-EDU EJ1N-TC4 or EJ1N-TC2 COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE EJ1C-EDU EJ1N-TC4 or EJ1N-TC2 Up to 64 Basic Units can be connected using distributed placement. Using EJ1 @-TC4 models: 4 channels × 64 Units = 256 channels Using EJ1 @-TC2 models: 2 channels × 64 Units = 128 channels Note: End Units are not included in the number of Units that can be connected. COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE 1 2 3 4 5 6 7 8 9 COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE COM1 COM2 COM3 PWR RUN ERR ALM SW1 ON SW2 EJ1-TC4 BCDE 1 2 3 4 5 6 7 8 9 Port A Port B Port A Port B Host devices FG 24 VDC RS-485 RS-485 24 VDC |
|
|
