E5GC

*1. With set values 1, 4, and 5, the upper- and lower-limit values can

be set independently for each alarm type, and are expressed as

“L” and “H.”

*2. Set value: 1, Upper- and lower-limit alarm

*3. Set value: 4, Upper- and lower-limit range

*4. Set value: 5, Upper- and lower-limit with standby sequence

For Upper- and Lower-Limit Alarm Described Above at *2

• In cases 1 and 2 above, the alarm is always OFF if the upper-

and lower-limit hysteresis overlaps.

• In case 3, the alarm is always OFF.

*5. Set value: 5, Upper- and lower-limit alarm with standby sequence

The alarm is always OFF if upper- and lower-limit hysteresis

overlaps.

*6. Refer to the E5

@C Digital Temperature Controllers User’s Manual

(Cat. No. H174) for information on the operation of the standby

sequence.

*7. Refer to the E5

@C Digital Temperature Controllers User’s Manual

(Cat. No. H174) for information on the LBA.

*8. Refer to the E5

@C Digital Temperature Controllers User’s Manual

(Cat. No. H174) for information on the PV change rate alarm.

*9. When heating/cooling control is performed, the MV absolute-

value upper-limit alarm functions only for the heating operation

and the MV absolute-value lower-limit alarm functions only for the

cooling operation.

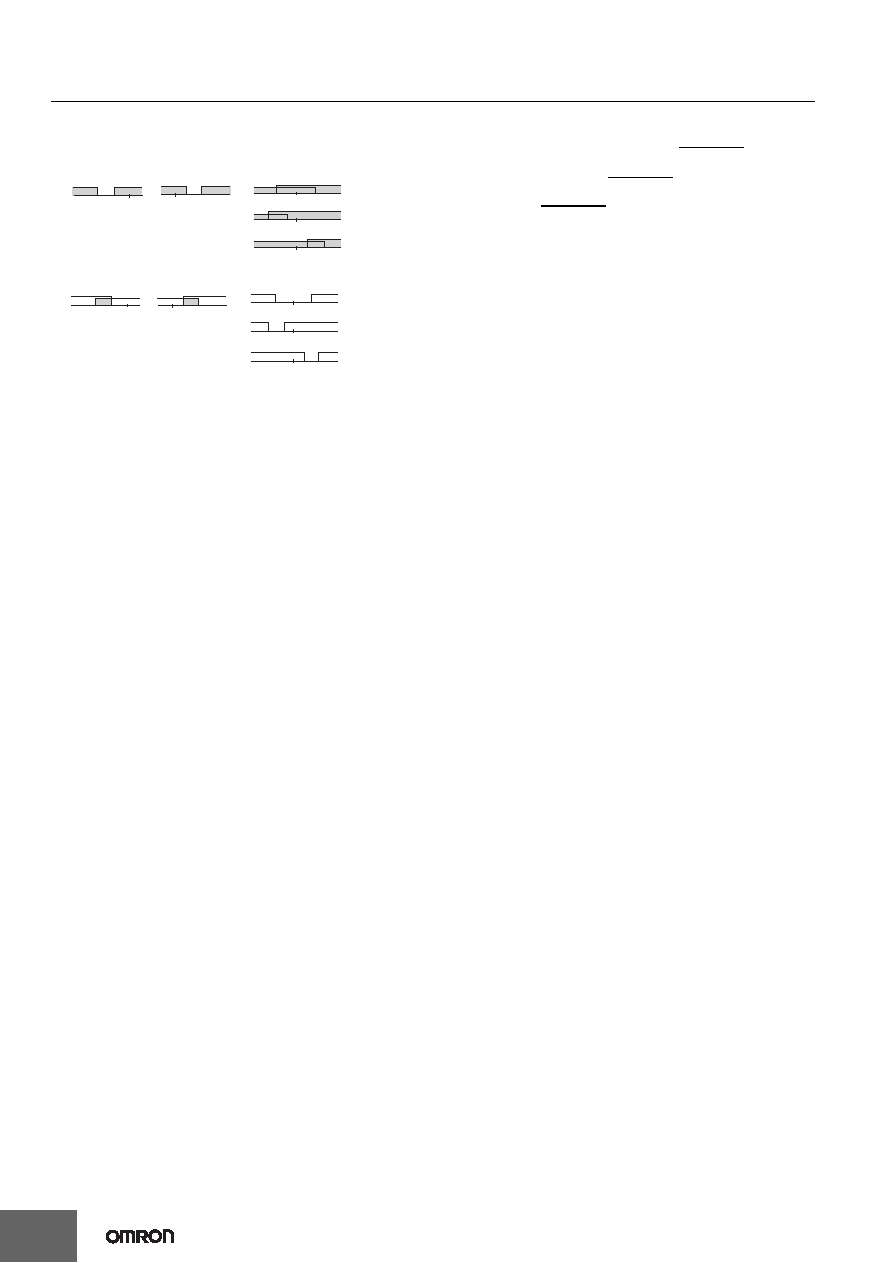

LH SP

HSP

Case 1

Case 2

Case 3 (Always OFF)

H<0, L>0

|H| < |L|

H>0, L<0

|H| > |L|

H<0, L<0

H<0, L>0

|H|

≥ |L|

H>0, L<0

|H|

≤ |L|

LH SP

HSP

Case 1

Case 2

Case 3 (Always ON)

H<0, L<0

H<0, L>0

|H|

≥ |L|

H>0, L<0

|H|

≤ |L|

H<0, L>0

|H| < |L|

H>0, L<0

|H| > |L|
