E5CC/E5CC-B/E5CC-U

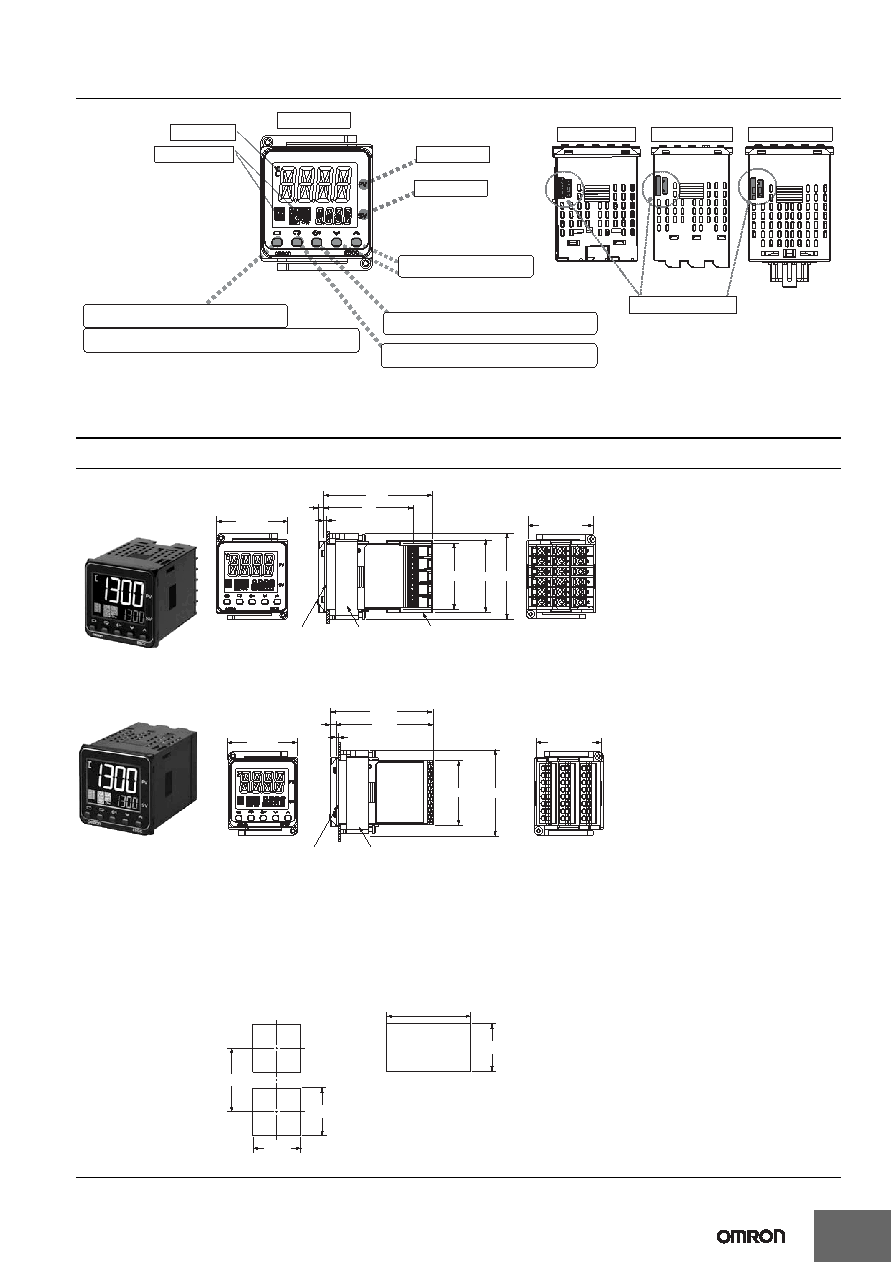

Nomenclature

Dimensions

(Unit: mm)

Controllers

Press

O Key once to go to Adjustment Level.

Press

O Key for at least 3 seconds to go to Initial Setting Level.

Use the

M Key to change to another parameter.

Operation indicators

No. 1 display

No. 2 display

Temperature unit

Use

S Key to change the digit (default setting).

Use the

U D Keys to set the

parameter.

Front panel

PV or specified parameter

SP or specified parameter value

Top View of E5CC

Top View of E5CC-U

Top View of E5CC-B

Top-panel Setup Tool port

E5CC

E5CC-B

E5CC-U

45+0.6

60 min.

(48 × number of units - 2.5)+1.0

Panel Cutout

Mounted Separately

Group Mounted

48 × 48

Mounting Adapter

(Accessory, Y92F-49

(also available for

ordering separately))

Terminal Cover

(E53-COV17)

(Order separately)

Waterproof Packing

(Accessory, Y92S-P8

(also available for

ordering separately))

44.8 × 44.8

73.1

48.8

44.8 × 44.8

E5CC

• Recommended panel thickness is 1 to 5 mm.

• Group mounting is not possible in the vertical direction. (Maintain

the specified mounting space between Controllers.)

• To mount the Controller so that it is waterproof, insert the water-

proof packing onto the Controller.

• When two or more Controllers are mounted, make sure that the

surrounding temperature does not exceed the allowable operating

temperature specified in the specifications.

• Use a control panel thickness of 1 to 3 mm if the Y92A-48N and a

USB-Serial Conversion Cable are used together.

The Setup Tool port is on the top of the Temperature Controller.

It is used to connect the Temperature Controller to the computer to use the Setup Tool.

The E58-CIFQ2 USB-Serial Conversion Cable is required to make the connection.

Refer to the instructions that are provided with the USB-Serial Conversion Cable for the connection procedure.

Note: Do not leave the USB-Serial Conversion Cable connected when you use the Temperature Controller.

(71.4)

67.4

(1)

Mounting Adapter

(Accessory, Y92F-49

(also available for

ordering separately))

Waterproof Packing

(Accessory, Y92S-P8

(also available for

ordering separately))

48 × 48

44.8 × 44.8

E5CC-B
