VT5376
General features
21/30

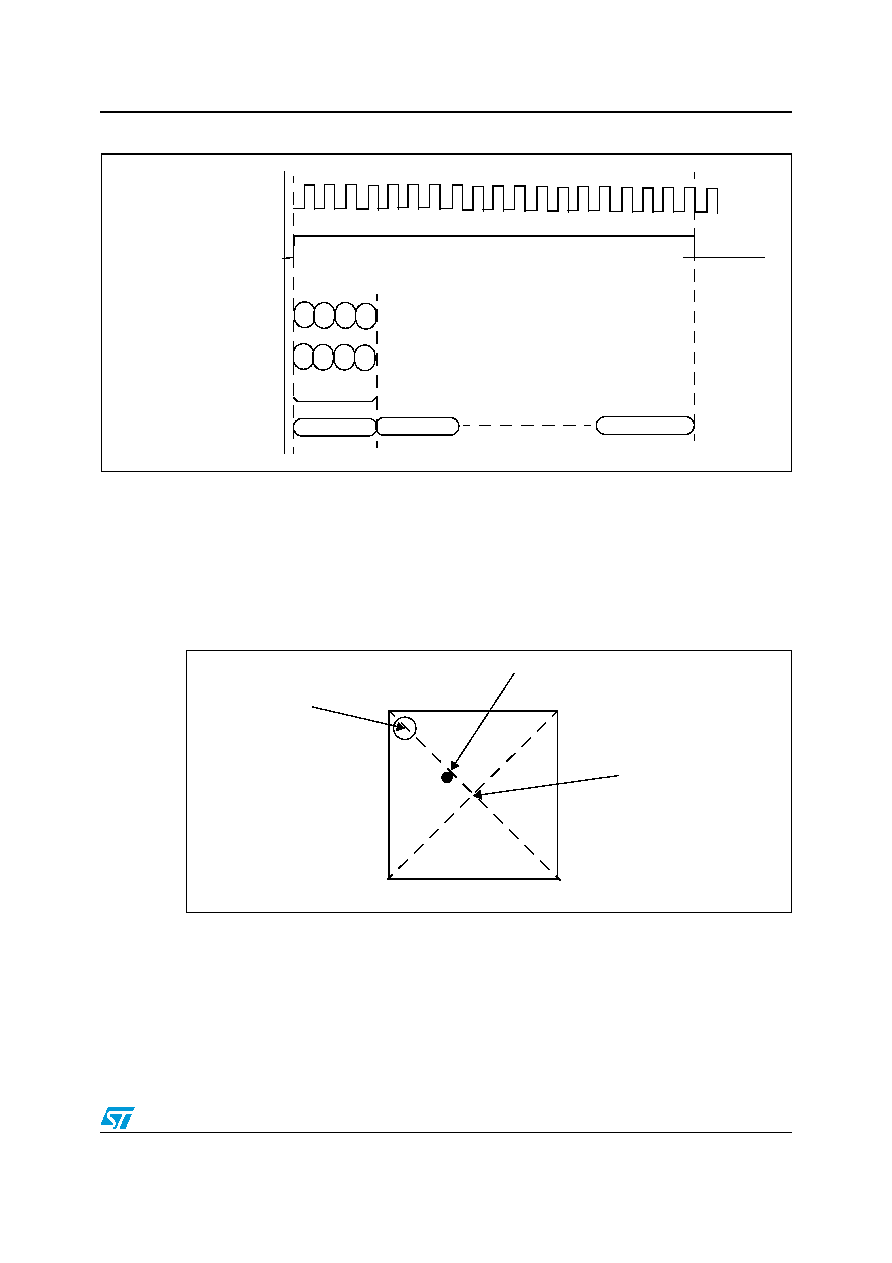

Figure 11.
Image streaming timing diagram
7.6
Optical centre
The optical centre of the VT5376 is NOT in the centre of the package. It is offset by
-0.232 mm in the X axis and +0.217 mm in the Y axis with respect to the centre of the
package as shown in Figure 12. The PCB designer must take this into account when laying
out the PCB.
Figure 12.
VT5376 optical centre
Laser_NEN (FST)
VGate_On (NIB_EVEN)
Reset_Out (NIB_ODD)
Motion (48MHz QCLK)
6
7
4
5
2
3
0
1
pixel_0[7:0]
reconstructed pixel data
pixel_1[7:0]
pixel_399[7:0]
Optical centre (-0.232mm, +0.217mm)
mechanical centre
of package (0,0)
Pin 1 marking
TOP VIEW OF VT5376
