TLV2211CDBV Scheda tecnica(PDF) 4 Page - Texas Instruments

Il numero della parte TLV2211CDBV
Spiegazioni elettronici  Advanced LinCMOSE RAIL-TO-RAIL MICROPOWER SINGLE OPERATIONAL AMPLIFIERS
PDF  29 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Produttore elettronici  TI [Texas Instruments]
Homepage  http://www.ti.com
Logo TI - Texas Instruments

TLV2211CDBV Scheda tecnica(HTML) 4 Page - Texas Instruments

  TLV2211CDBV Datasheet HTML 1Page - Texas Instruments TLV2211CDBV Datasheet HTML 2Page - Texas Instruments TLV2211CDBV Datasheet HTML 3Page - Texas Instruments TLV2211CDBV Datasheet HTML 4Page - Texas Instruments TLV2211CDBV Datasheet HTML 5Page - Texas Instruments TLV2211CDBV Datasheet HTML 6Page - Texas Instruments TLV2211CDBV Datasheet HTML 7Page - Texas Instruments TLV2211CDBV Datasheet HTML 8Page - Texas Instruments TLV2211CDBV Datasheet HTML 9Page - Texas Instruments Next Button
Zoom Inzoom in Zoom Outzoom out
 4 / 29 page
background image

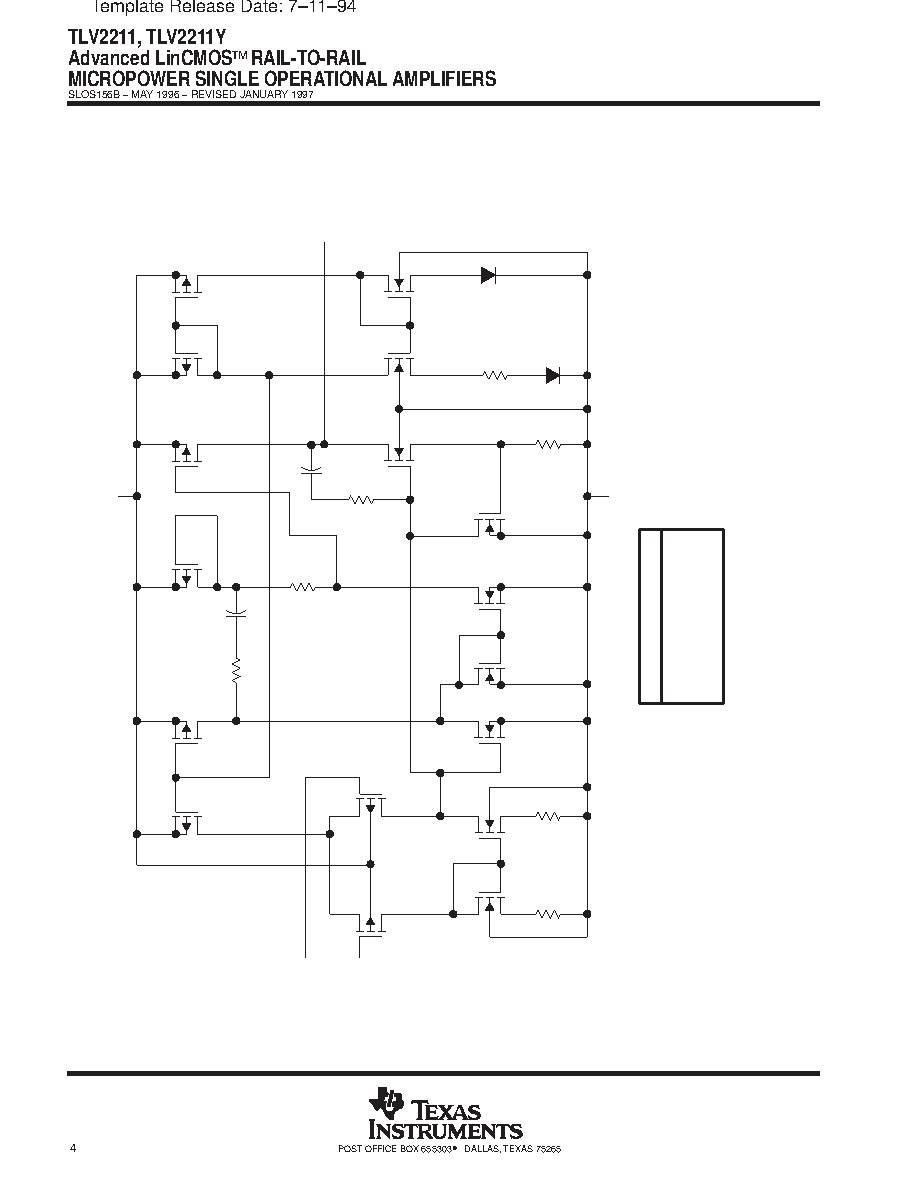

equivalent schematic
Q3
Q6
Q9
Q12
Q14
Q16
Q2
Q5
Q7
Q8
Q10
Q11
D1
Q17
Q15
Q13
Q4
Q1
R5
C1
VDD +
IN +
IN –
R3
R7
R1
R2
OUT
VDD – / GND
COMPONENT COUNT†
Transistors
Diodes
Resistors
Capacitors
23
6
11
2
† Includes both amplifiers and all
ESD, bias, and trim circuitry
R6
C2
D2
R4
