PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

PIN 1

INDICATOR

TOP VIEW

(Not to Scale)

AD8465

VCCO 1

VCCI 2

VEE 3

9 VEE

8 LE/HYS

7 SDN

NOTES

1. FOR BEST THERMAL PERFORMANCE,

EXPOSED PAD MUST BE SOLDERED

TO THE PCB.

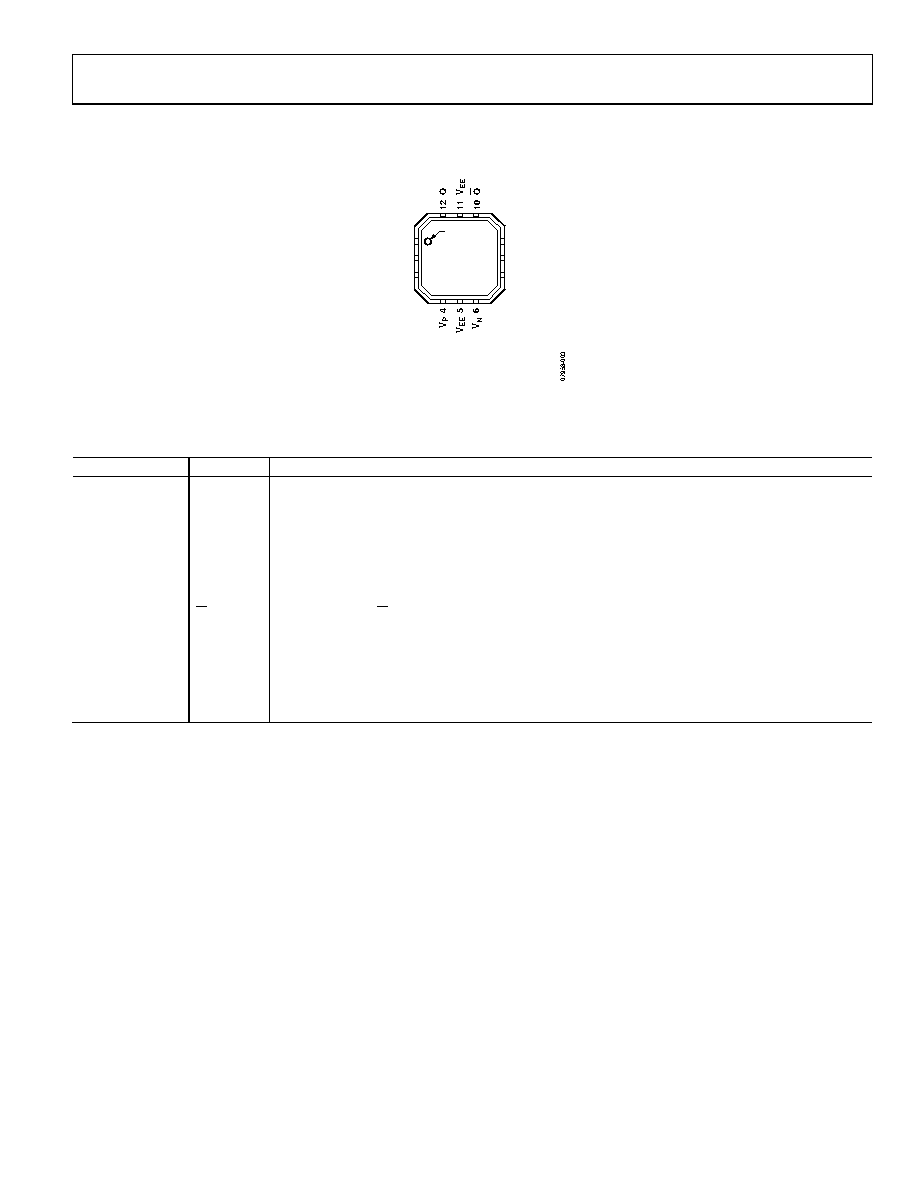

Figure 3. Pin Configuration

Table 5. Pin Function Descriptions

Pin No.

Mnemonic

Description

VCCO

Output Section Supply.

VCCI

Input Section Supply.

3, 5, 9, 11

VEE

Negative Supply Voltages.

Noninverting Analog Input.

Inverting Analog Input.

SDN

Shutdown. Drive this pin low to shut down the device.

LE/HYS

Latch/Hysteresis Control. Bias with resistor or current for hysteresis; drive low to latch.

Inverting Output. Q is at logic low if the analog voltage at the noninverting input, VP, is greater than

the analog voltage at the inverting input, VN, if the comparator is in compare mode.

Noninverting Output. Q is at logic high if the analog voltage at the noninverting input, VP, is greater

than the analog voltage at the inverting input, VN, if the comparator is in compare mode.

Heat Sink Paddle

VEE

The metallic back surface of the package is electrically connected to VEE. It can be left floating

because Pin 3, Pin 5, Pin 9, and Pin 11 provide adequate electrical connection. It can also be

soldered to the application board if improved thermal and/or mechanical stability is desired.
