SSM2377
Rev. 0 | Page 15 of 16

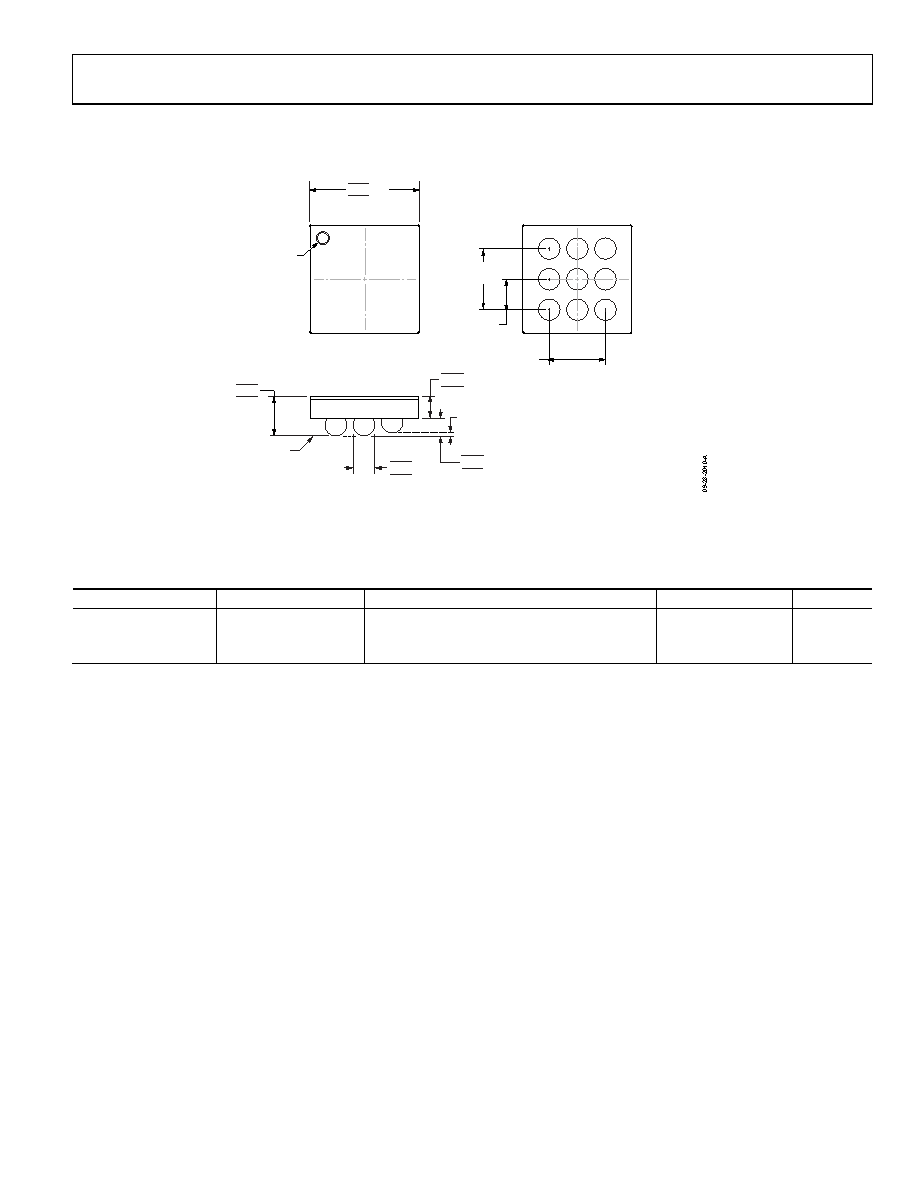

OUTLINE DIMENSIONS
A
B
C
0.645
0.600
0.555
1.280
1.240 SQ
1.200
1
2
3
BOTTOM VIEW
(BALL SIDE UP)
TOP VIEW
(BALL SIDE DOWN)
END VIEW
0.300
0.260
0.220
0.80
REF
0.80
REF
0.40
REF
0.415
0.400
0.385
SEATING
PLANE
0.230
0.200
0.170
COPLANARITY
0.05
BALL A1
IDENTIFIER
Figure 37. 9-Ball Wafer Level Chip Scale Package [WLCSP]
(CB-9-4)
Dimensions shown in millimeters
ORDERING GUIDE
Model1
Temperature Range
Package Description
Package Option2
Branding
SSM2377ACBZ-RL
−40°C to +85°C
9-Ball Wafer Level Chip Scale Package [WLCSP]
CB-9-4
Y48
SSM2377ACBZ-R7
−40°C to +85°C
9-Ball Wafer Level Chip Scale Package [WLCSP]
CB-9-4
Y48
EVAL-SSM2377Z
Evaluation Board
1 Z = RoHS Compliant Part.
2 This package option is halide free.
