ADP198
Data Sheet
Rev. D | Page 6 of 16
PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS
VIN
VOUT
1
2
EN
A
B
GND
TOP VIEW
(Not to Scale)

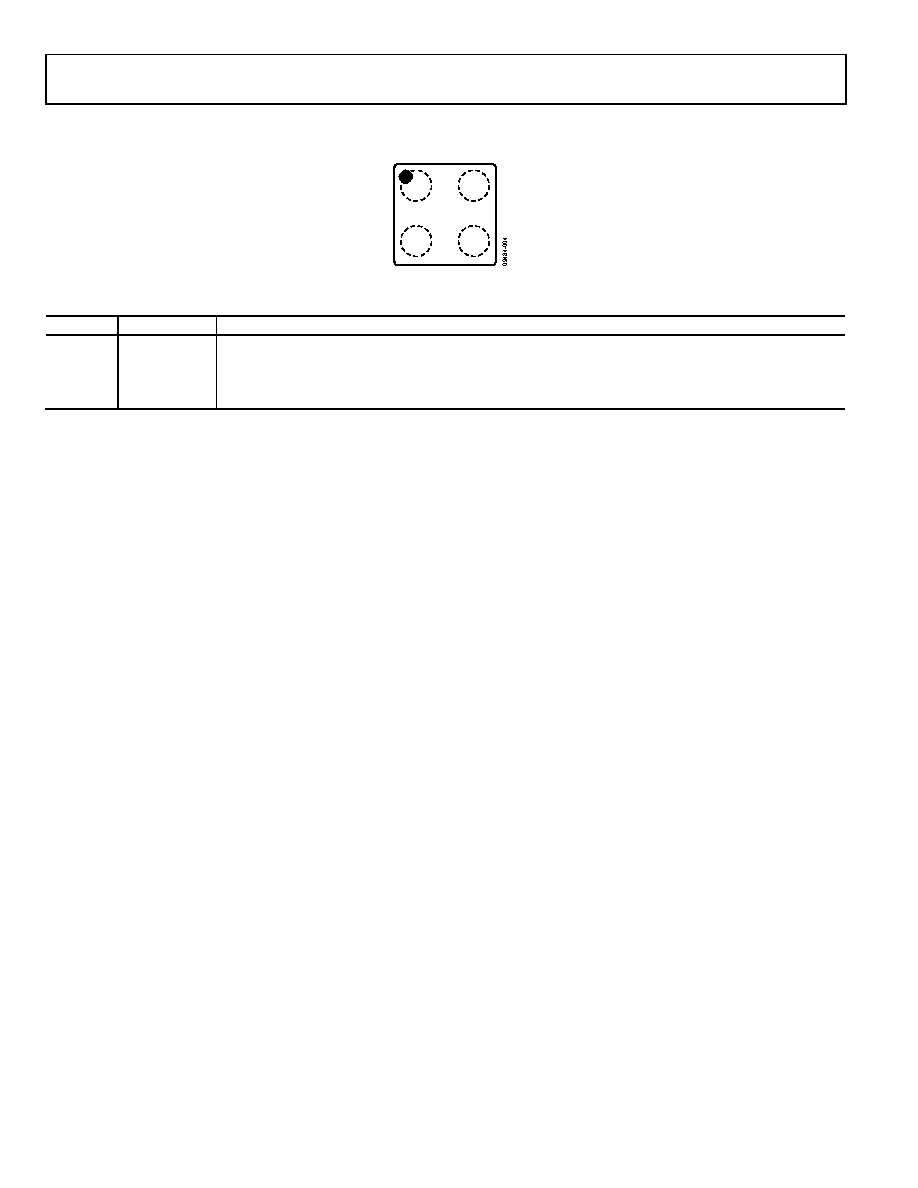

Figure 4. 4-Ball WLCSP Pin Configuration
Table 4. Pin Function Descriptions, WLCSP
Pin No.
Mnemonic
Description
A1
VIN
Input Voltage.
A2
VOUT
Output Voltage.
B1
EN
Enable Input. Drive EN high to turn on the switch and drive EN low to turn off the switch.
B2
GND
Ground.
