Data Sheet
ADP198
Rev. D | Page 9 of 16
CH1 200mA
ΩBW
CH3 2.00V BW
A CH3
1.48V
3
1
2
CH2 1.00V BW M40.0µs
T 10.20%
INPUT CURRENT
OUTPUT VOLTAGE
ENABLE

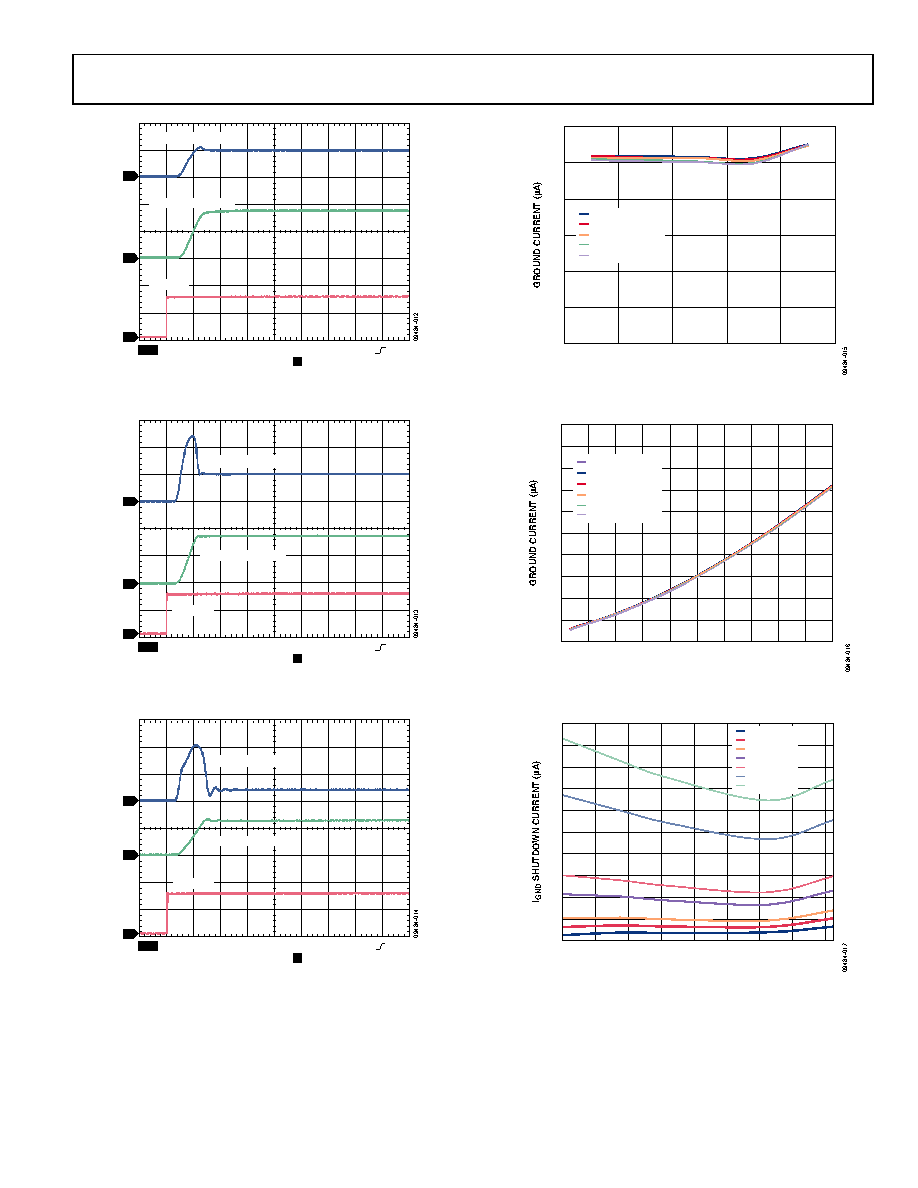

Figure 12. Typical Rise Time and Inrush Current,
VIN = 1.8 V, ILOAD = 200 mA, Select Code 00
CH1 200mA
ΩBW
CH3 2.00V BW
A CH3
1.48V
2
1
3
CH2 2.00V BW M20.0µs
T 10.20%
INPUT CURRENT
OUTPUT VOLTAGE
ENABLE
Figure 13. Typical Rise Time and Inrush Current,
VIN = 3.6 V, ILOAD = 200 mA, Select Code 00
CH1 500mA
ΩBW
CH3 2.00V BW
A CH3
1.48V
2
1
3
CH2 5.00V BW M10.0µs
T 10.20%
INPUT CURRENT
OUTPUT VOLTAGE
ENABLE
Figure 14. Typical Rise Time and Inrush Current,
VIN = 6.5 V, ILOAD = 200 mA, Select Code 00
0.0
0.5
1.0
1.5
2.0
2.5
3.0
–40
–5
25
85
125
TEMPERATURE (°C)
ILOAD = 1000mA
ILOAD = 100mA
ILOAD = 200mA
ILOAD = 400mA
ILOAD = 800mA
Figure 15. Ground Current vs. Temperature
0
2
4
6
8
10
12
14
16
18
20
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
VIN (V)
ILOAD = 1000mA
ILOAD = 100mA
ILOAD = 10mA
ILOAD = 200mA
ILOAD = 400mA
ILOAD = 800mA
Figure 16. Ground Current vs. Input Voltage (VIN)
0
1
2
3
4
5
6
7
8
9
10
–40
–20
0
20
40
60
80
100
120
TEMPERATURE (°C)
VIN = 1.65V
VIN = 2.10V
VIN = 2.50V
VIN = 3.30V
VIN = 3.80V
VIN = 5.50V
VIN = 6.50V
Figure 17. IGND Shutdown Ground Current vs. Temperature, VOUT Open
