Data Sheet
SSM2932
Rev. 0 | Page 15 of 16
OUTLINE DIMENSIONS
A
B
C
D
0.560
0.500
0.440
SIDE VIEW
0.230
0.200
0.170
0.300
0.260
0.220
COPLANARITY
0.05
SEATING
PLANE
1
2
3
4
BOTTOM VIEW
(BALL SIDE UP)
TOP VIEW
(BALL SIDE DOWN)
BALL A1
IDENTIFIER
0.40
REF
1.20
REF
1.680
1.640 SQ
1.600

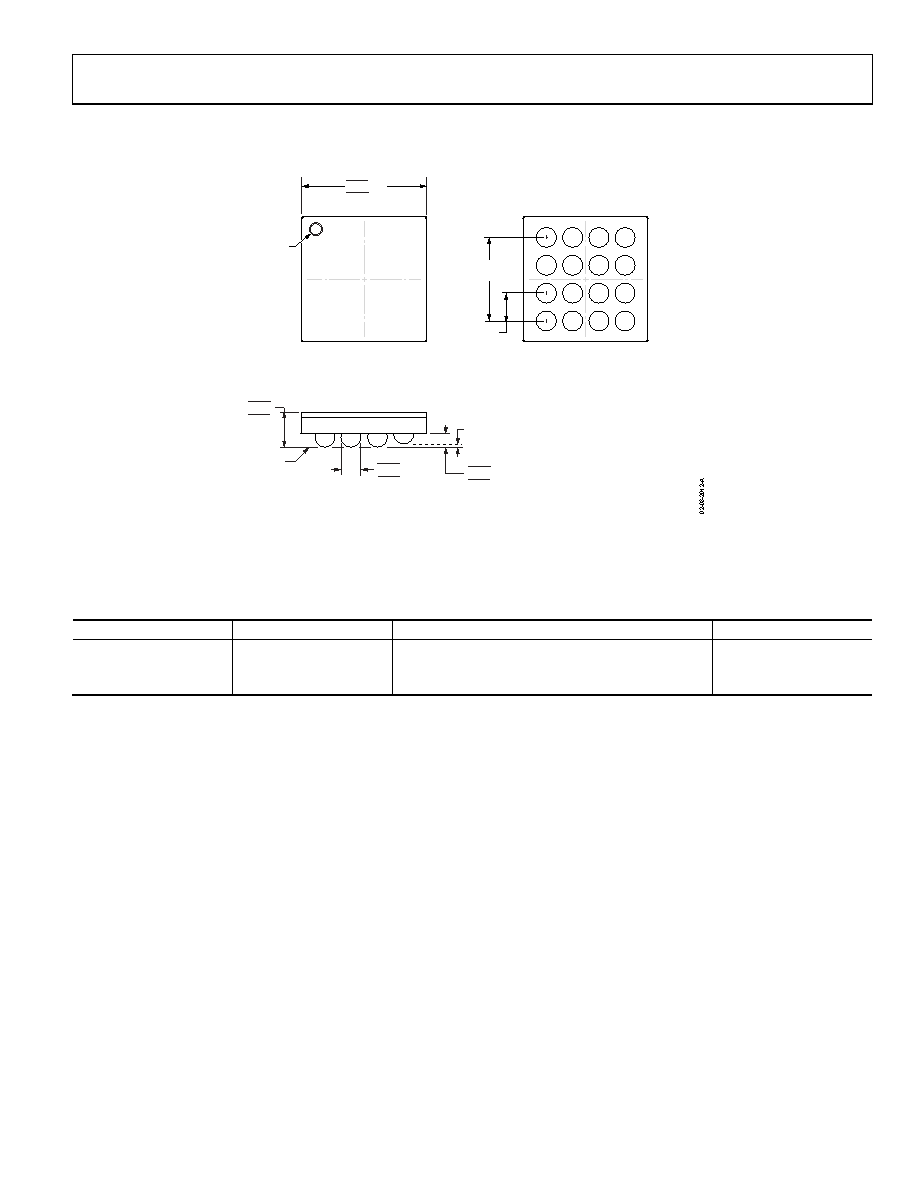

Figure 31. 16-Ball Wafer Level Chip Scale Package [WLCSP]
1.6 mm × 1.6 mm Body
(CB-16-11)
Dimensions shown in millimeters
ORDERING GUIDE
Model1
Temperature Range
Package Description
Package Option
SSM2932ACBZ-RL
−40°C to +85°C
16-Ball Wafer Level Chip Scale Package [WLCSP]
CB-16-11
SSM2932ACBZ-R7
−40°C to +85°C
16-Ball Wafer Level Chip Scale Package [WLCSP]
CB-16-11
EVAL-SSM2932Z
Evaluation Board
1 Z = RoHS Compliant Part.
