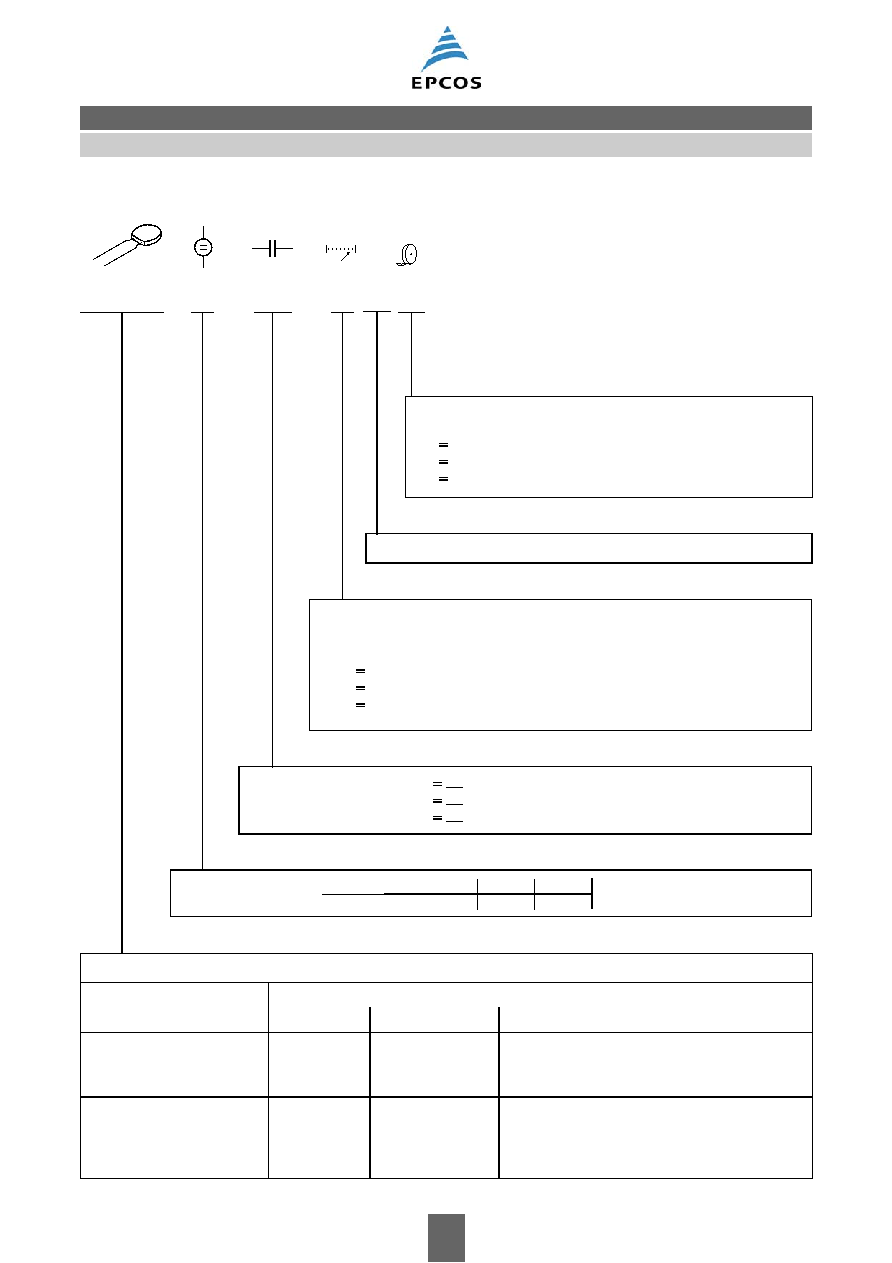

Ordering code system

B37979N

100

Packaging

cardboard tape, reel packing (360-mm reel)

Ammo packing (standard)

bulk

Capacitance tolerance

± 5% (standard for C0G)

±10% (standard for X7R)

±20% (standard for Z5U (Y5U))

Type and size

With radial leads

EIA standard

Lead spacing 2.5 mm

5.5

´ 5.0 ´ 2.5

6.5

´ 5.0 ´ 2.5

Lead spacing 5.0 mm

5.5

´ 5.0 ´ 2.5

6.5

´ 5.0 ´ 2.5

9.0

´ 7.5 ´ 2.5

Temperature characteristic

C0G

X7R

Z5U (Y5U)

B37979N

B37981M

B37982N

B37986N

B37987M

B37988N

B37979G

B37981F

B37982G

B37986G

B37987F

B37988G

—

B37984M

B37985N

Internal coding

Capacitance, coded

(example)

101

10 · 101 pF = 100 pF

222

22 · 102 pF = 2.2 nF

473

47 · 103 pF = 47 nF

Rated voltage

Rated voltage [VDC]

Code

100

Leaded

X7R

Multilayer ceramic capacitors
