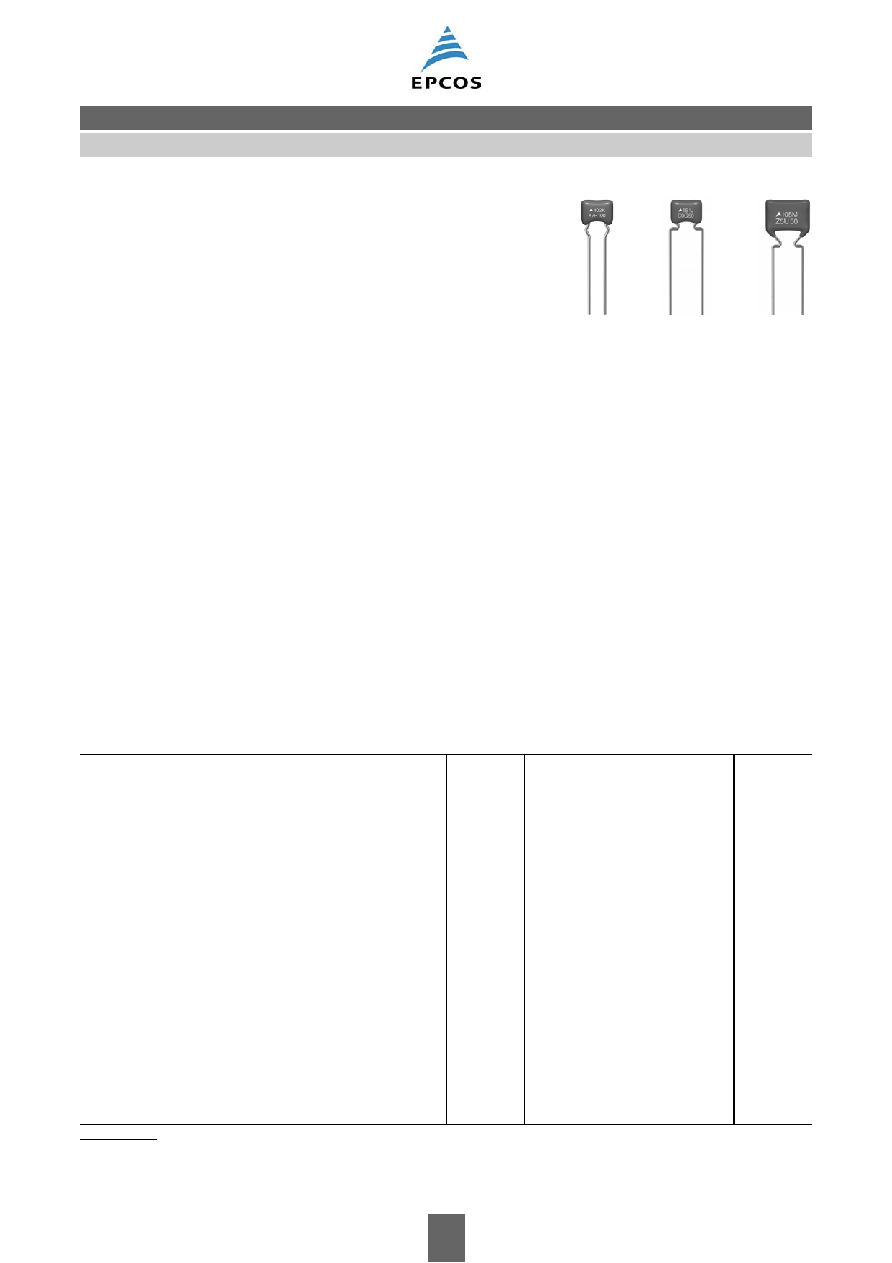

10/06

Please read Cautions and warnings and

Important notes at the end of this document.

Features

■ High volumetric efficiency

■ Non-linear capacitance change

■ High insulation resistance

■ High pulse strength

■ To AEC-Q200

Applications

■ Blocking

■ Coupling and decoupling

■ Interference suppression

Termination

■ Parallel wire leads, iron-nickel, tinned

■ Crimped leads

■ Non-standard lead lengths on request

Marking

■ Rated capacitance, tolerance, manufacturer’s logo, ceramic material, voltage

Delivery mode

■ Cardboard tape in Ammo packing (standard)

■ Cardboard tape on 360-mm reel or bulk on request

Electrical data

Temperature characteristic

X7R

Max. relative capacitance change

within –55

°C to +125 °C

DC/C

±15

Climatic category (IEC 60068-1)

55/125/56

Standard

EIA

Dielectric

Class 2

Rated voltage1)

50, 100

VDC

Test voltage

Vtest

2.5 · VR/5 s

VDC

Capacitance range / E series

470 pF … 1

mF (E6)

Dissipation factor (limit value)

tan

<25 · 10–3

Insulation resistance2) at + 25

°CRins

>105

Insulation resistance2) at +125

°CRins

>104

Time constant2) at + 25

°C

>1000

Time constant2) at +125

°C

>100

Operating temperature range

Top

–55 … +125

°C

Ageing3)

yes

1) Note: No operation on AC line.

2) For CR >10 nF the time constant t = C · Rins is given.

3) Refer to chapter “General technical information”, “Ageing”.

Leaded

X7R

Multilayer ceramic capacitors
