SSM2537

Data Sheet

Rev. 0 | Page 8 of 16

TYPICAL PERFORMANCE CHARACTERISTICS

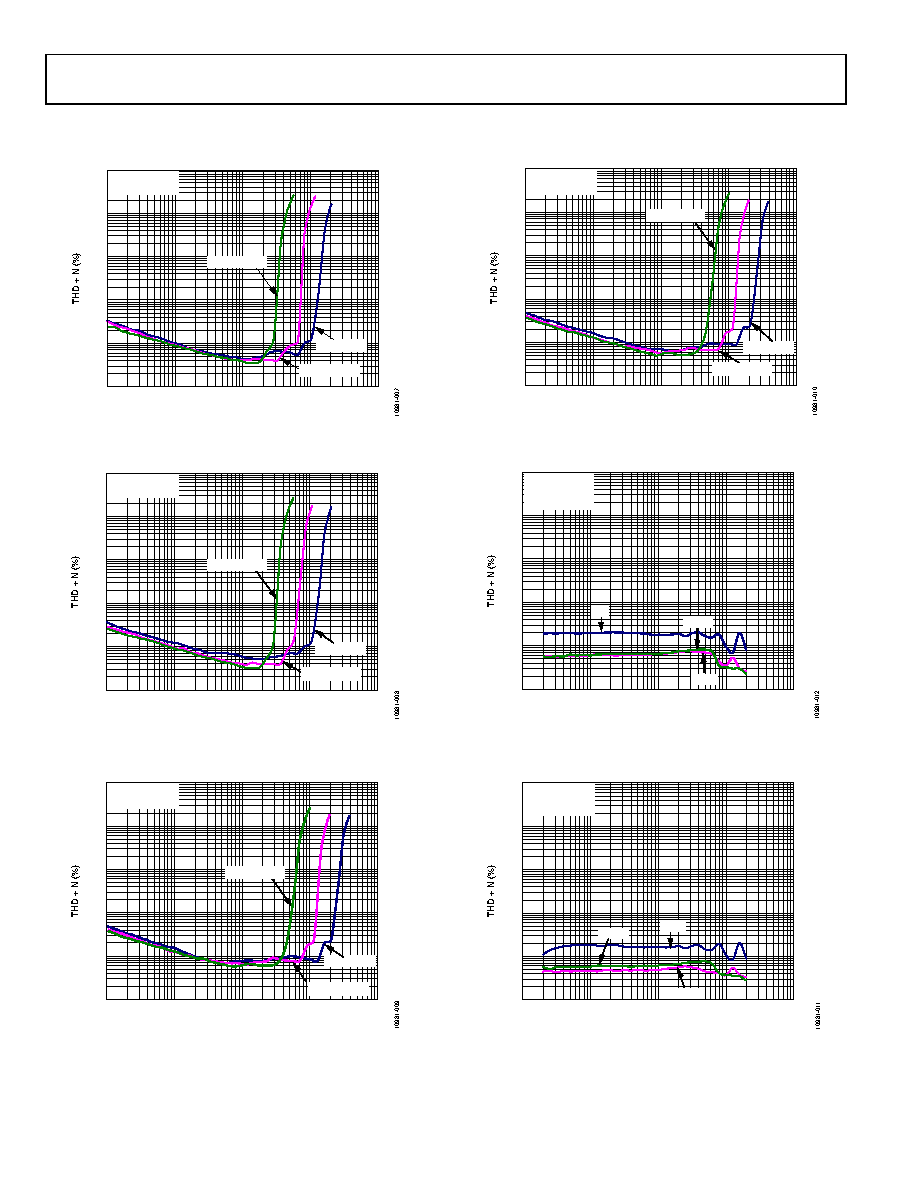

Figure 4. THD + N vs. Output Power into 8 Ω, Gain = 5 V, fS = 64×

Figure 5. THD + N vs. Output Power into 8 Ω, Gain = 5 V, fS = 128×

Figure 6. THD + N vs. Output Power into 4 Ω, Gain = 5 V, fS = 64×

Figure 7. THD + N vs. Output Power into 4 Ω, Gain = 5 V, fS = 128×

Figure 8. THD + N vs. Frequency, PVDD = 5 V, RL = 8 Ω, fS = 64×

Figure 9. THD + N vs. Frequency, PVDD = 3.6 V, RL = 8 Ω, fS = 64×

0.001

0.01

0.1

100

0.001

0.01

0.1

OUTPUT POWER (W)

RL = 8Ω + 33µH

fS = 64×

PVDD = 2.5V

PVDD = 3.6V

PVDD = 5V

0.001

0.01

0.1

100

0.001

0.01

0.1

OUTPUT POWER (W)

RL = 8Ω + 33µH

fS = 128×

PVDD = 2.5V

PVDD = 3.6V

PVDD = 5V

0.001

0.01

0.1

100

0.001

0.01

0.1

OUTPUT POWER (W)

PVDD = 2.5V

PVDD = 3.6V

PVDD = 5V

RL = 4Ω + 15µH

fS = 64×

0.001

0.01

0.1

100

0.001

0.01

0.1

OUTPUT POWER (W)

PVDD = 2.5V

PVDD = 3.6V

PVDD = 5V

RL = 4Ω + 15µH

fS = 128×

0.001

0.01

0.1

100

10k

100k

FREQUENCY (Hz)

RL = 8Ω + 33µH

PVDD = 5V

fS = 64×

0.25W

0.5W

0.001

0.01

0.1

100

10k

100k

FREQUENCY (Hz)

0.25W

0.5W

RL = 8Ω + 33µH

PVDD = 3.6V

fS = 64×

0.125W
