Data Sheet
ADRF6620
Rev. 0 | Page 49 of 52

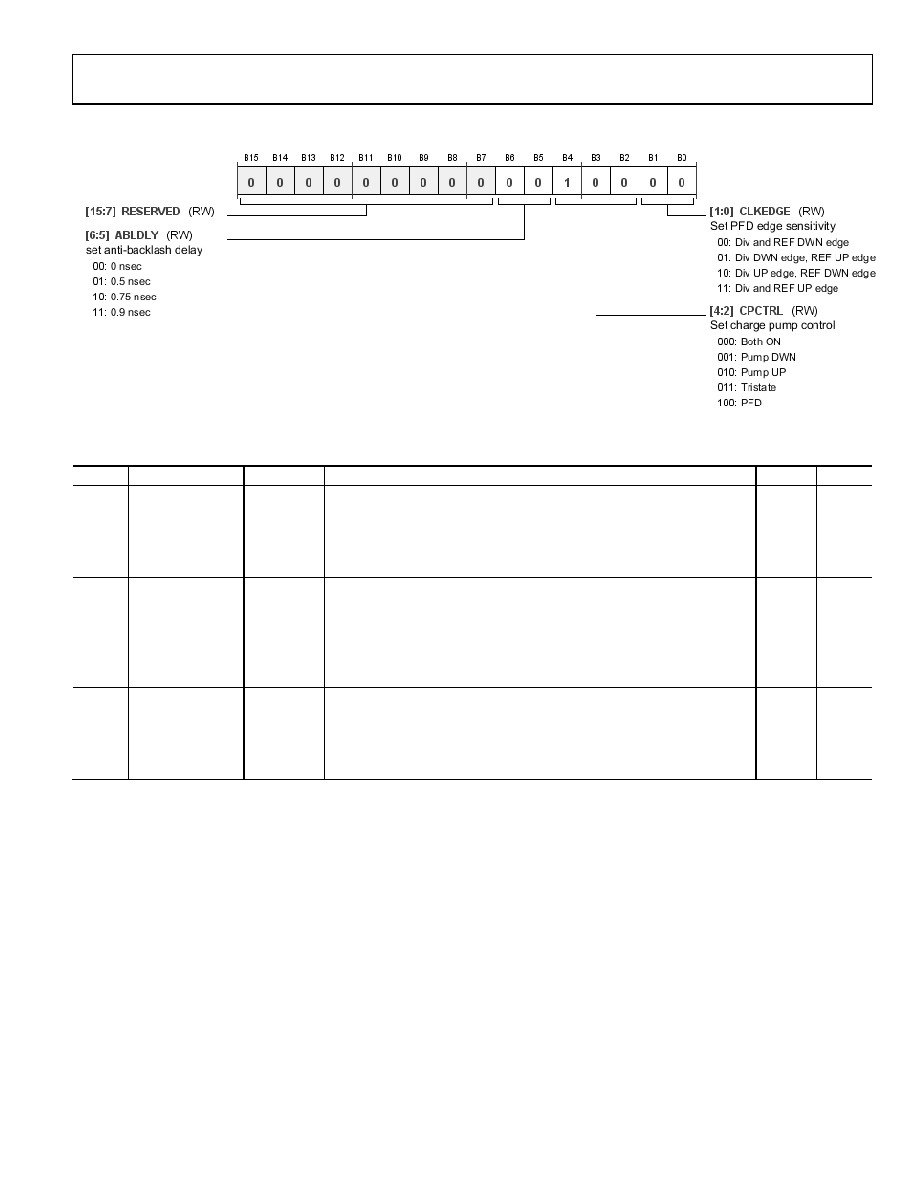

REGISTER 0x40, RESET: 0x0010, NAME: PFD_CTL2
Table 33. Bit Descriptions for PFD_CTL2
Bits
Bit Name
Settings
Description
Reset
Access
[6:5]
ABLDLY
Set antibacklash delay
0x0
RW
00
0 ns
01
0.5 ns
10
0.75 ns
11
0.9 ns
[4:2]
CPCTRL
Set charge pump control.
0x4
RW
000
Both on
001
Pump down
010
Pump up
011
Tristate
100
PFD
[1:0]
CLKEDGE
Set PFD edge sensitivity
0x0
RW
00
Div and REF down edge
01
Div down edge, REF up edge
10
Div up edge, REF down edge
11
Div and REF up edge
