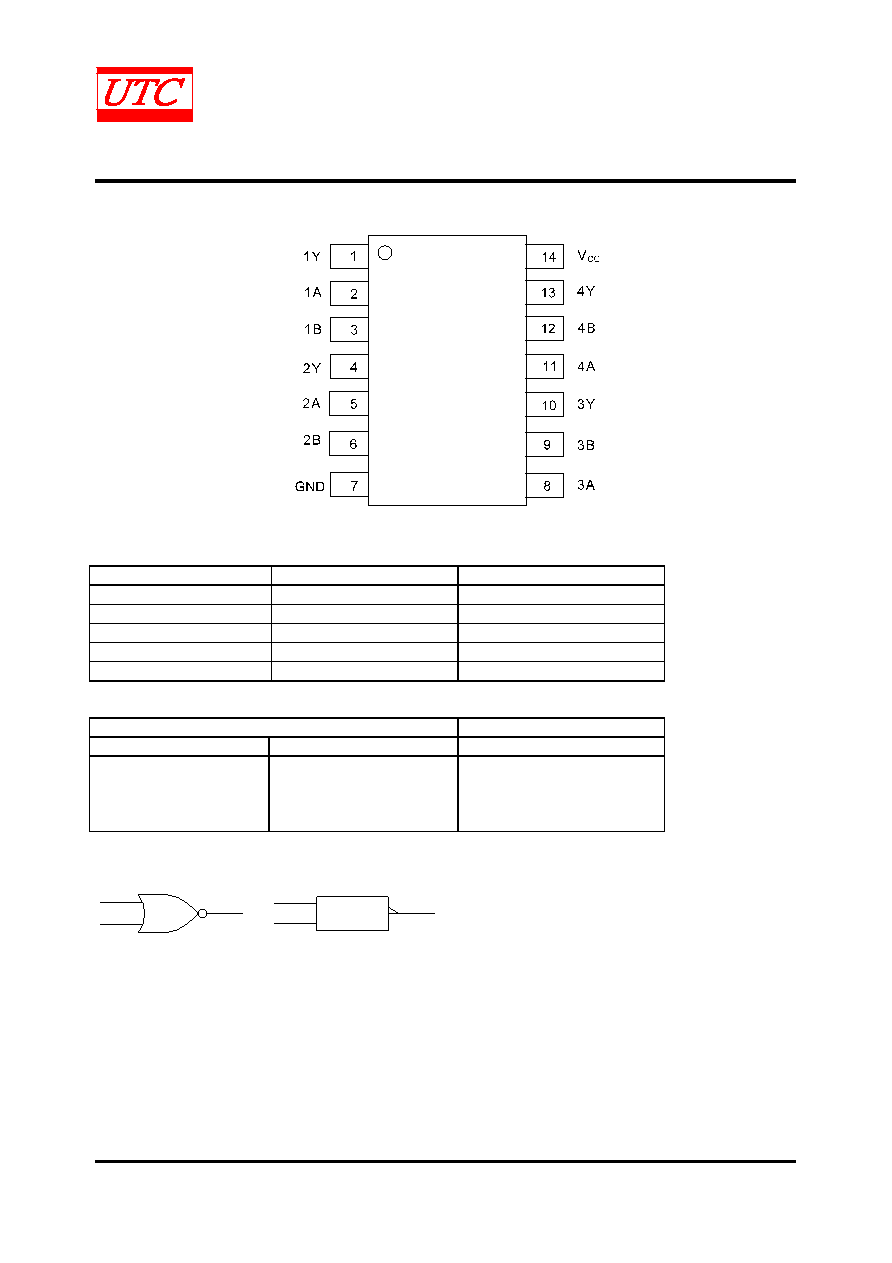

background image
UNISONIC TECHNOLOGIES CO., LTD
U74LVC02A
CMOS IC
www.unisonic.com.tw
2 of 5
Copyright © 2010 Unisonic Technologies Co., Ltd
Ver.A
PIN CONFIGURATION
PIN DESCRIPTION
PIN
SYMBOL
FUNCTION
2, 5, 8, 11
1A-4A
Data inputs
3, 6, 9, 12
1B-4B
Data inputs
1, 4, 10, 13
1Y-4Y
Data outputs
7
GND
Ground (0V)
14
VCC
Positive supply voltage
FUNCTION TABLE (each gate)
INPUTS
OUTPUT
A
B
Y
L
L
H
H
L
H
L
H
H
L
L
L
LOGIC SYMBOL (one gate)
A
B
Y
Logic symbol
IEEE/IEC symbol
A
B
Y
≥
1
