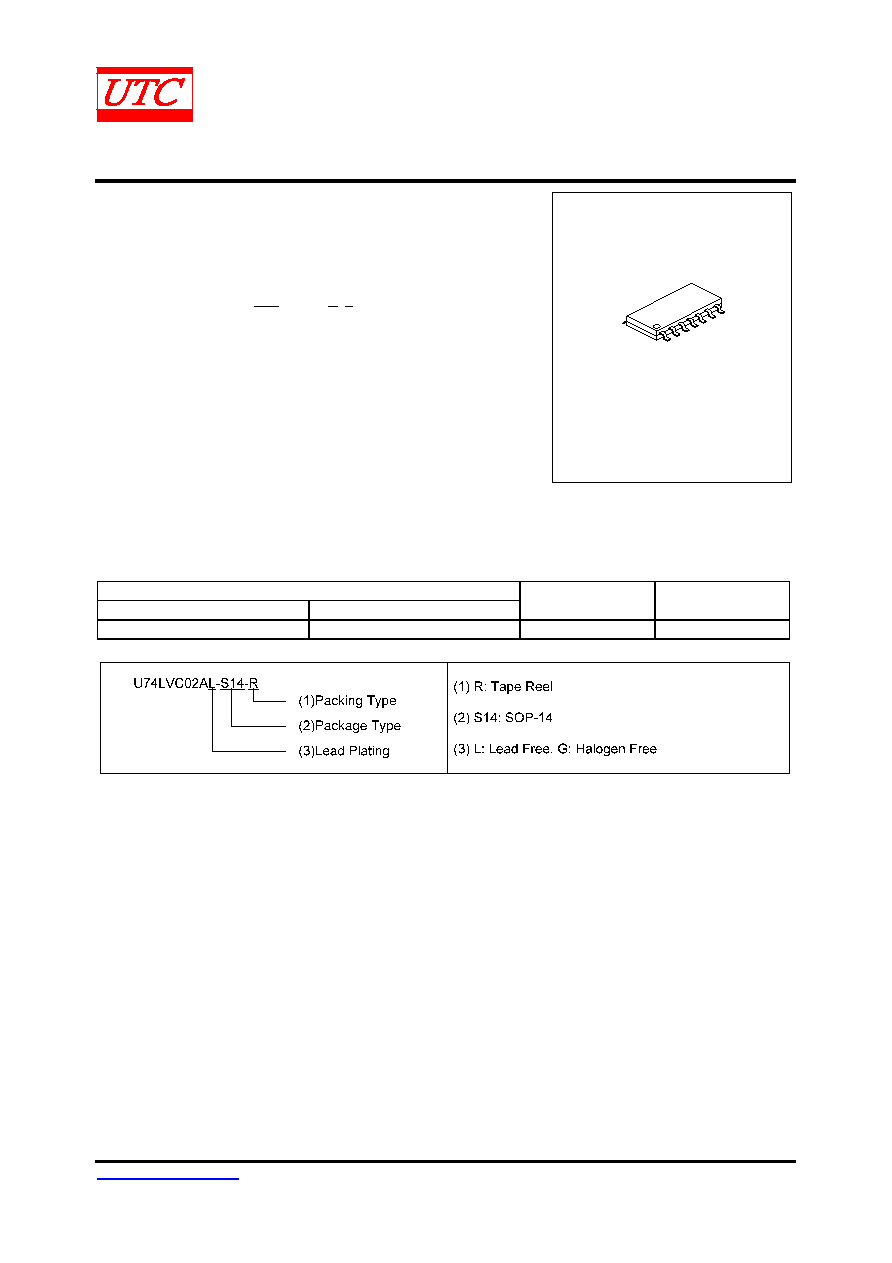

UNISONIC TECHNOLOGIES CO., LTD

U74LVC02A

CMOS IC

www.unisonic.com.tw

1 of 5

QW-R502-992.A

QUAD 2-INPUT POSITIVE-NOR

GATE



DESCRIPTION

The U74LVC02A is a quad 2-input positive-NOR gate which

performs the function

Y=A+B or Y=Α×Β . It is designed for 1.65V

to 3.6V operation.



FEATURES

* Wide supply voltage range from 1.65V to 3.6V

* Max tpd of 4.4ns at 3.3V

* Up to 5.5V inputs accept voltages

* Low power consumption, ICC=10μA (Max.)

* ±24 mA output driver at 3V

* Typical VOLP (Output Ground Bounce) < 0.8V, VCC=3.3V, TA=25°C

* Typical VOHV (Output VOH undershoot) > 2V, VCC=3.3V, TA=25°C

SOP-14



ORDERING INFORMATION

Ordering Number

Package

Packing

Lead Free

Halogen Free

U74LVC02AL-S14-R

U74LVC02AG-S14-R

SOP-14

Tape Reel
