ADP2230

Data Sheet

Rev. A | Page 18 of 18

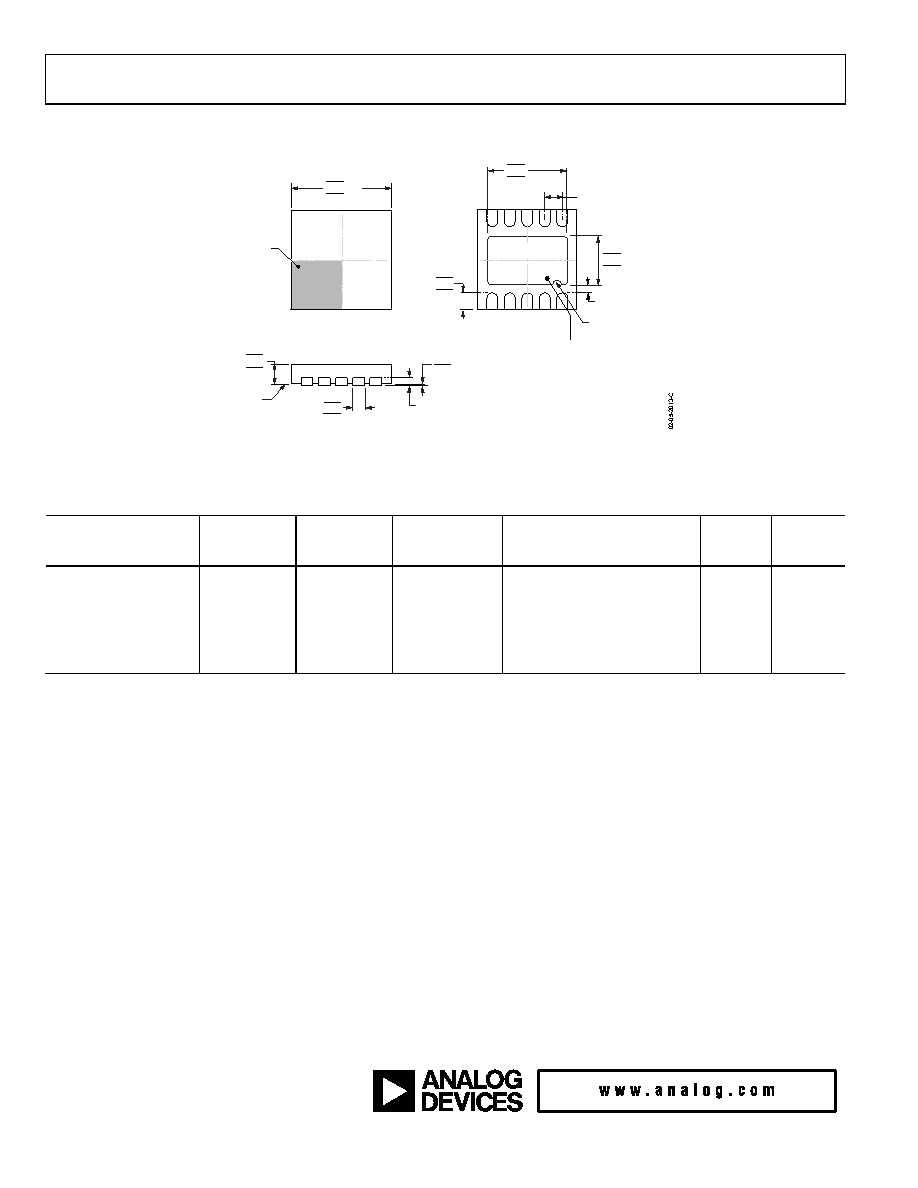

OUTLINE DIMENSIONS

Figure 36. 10-Lead Lead Frame Chip Scale Package [LFCSP_WD]

3 mm × 3 mm Body, Very Very Thin, Dual Lead

(CP-10-9)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Buck 1

Output

Voltage (V)2

Buck 2

Output

Voltage (V)2

Temperature

Range

Package Description

Package

Option

Branding

ADP2230ACPZ-1218R7

1.2

1.8

–40°C to +85°C

10-Lead LFCSP_WD

CP-10-9

LJ3

ADP2230ACPZ-1233R7

1.2

3.3

–40°C to +85°C

10-Lead LFCSP_WD

CP-10-9

LM3

ADP2230ACPZ-1833R7

1.8

3.3

–40°C to +85°C

10-Lead LFCSP_WD

CP-10-9

LMK

ADP2230ACPZ-R7

Adjustable

–40°C to +85°C

10-Lead LFCSP_WD

CP-10-9

LMQ

ADP2230CP-EVALZ

Evaluation Board with Adjustable

Output Voltage Option

1 Z = RoHS Compliant Part.

2 For additional output voltage options, contact a local sales or distribution representative.

2.48

2.38

2.23

0.50

0.40

0.30

0.25

0.20

PIN 1 INDEX

AREA

SEATING

PLANE

0.80

0.75

0.70

1.74

1.64

1.49

0.20 REF

0.05 MAX

0.02 NOM

0.50 BSC

EXPOSED

PAD

3.10

3.00 SQ

2.90

PIN 1

INDICATOR

(R 0.15)

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

COPLANARITY

0.08

TOP VIEW

BOTTOM VIEW

0.20 MIN

registered trademarks are the property of their respective owners.

D10705-0-11/14(A)
