B170

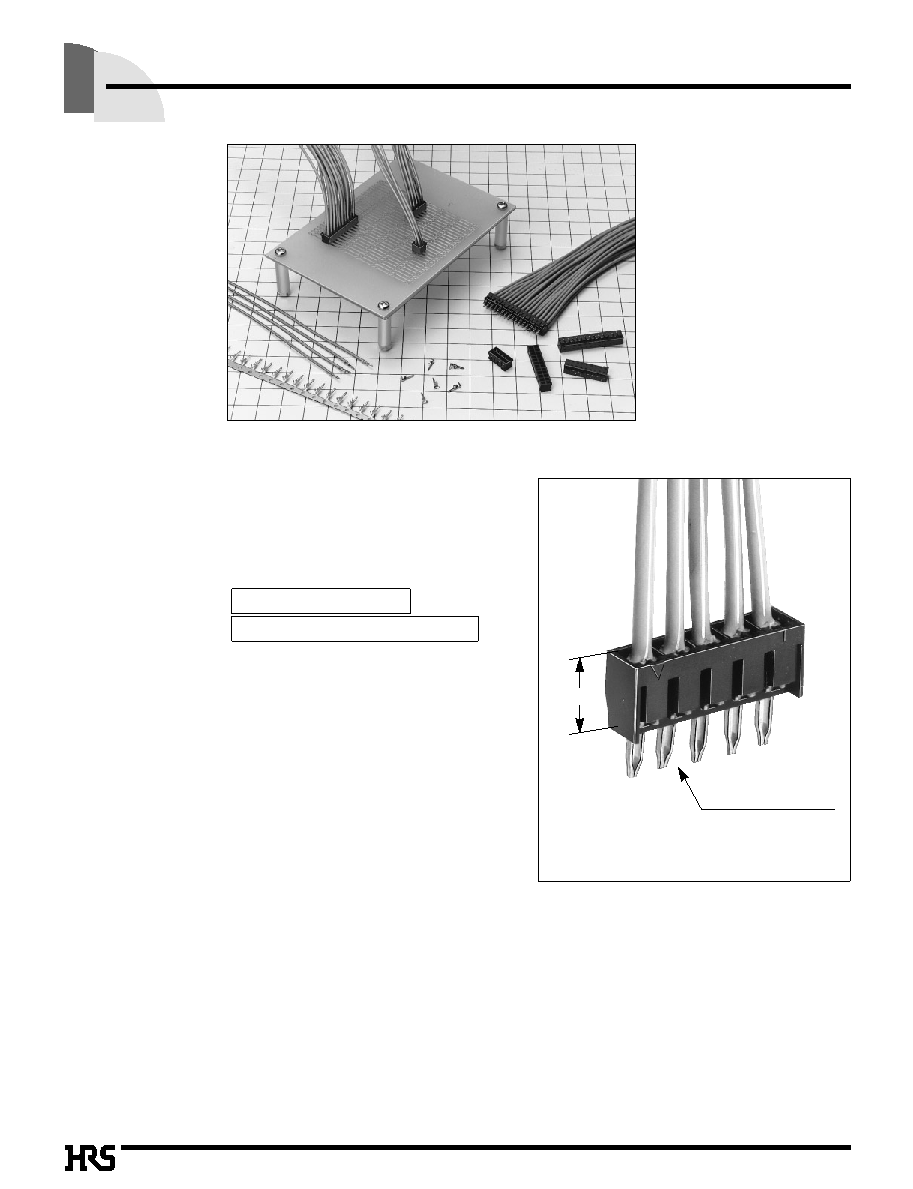

2mm Pitch Connector Directly Mounted on Board

DF4 Series

sFeatures

1. Cost Saving for Header

Thanks to the insertion/extraction socket and the harness product at

the both connector edges, one of two headers necessary at both edge

sockets can be saved without losing the function to separate

individual boards.

2. Miniature and Multiple Contacts

The miniature connector has broad variations in contact number.

Board mounting height :

4mm (Crimping )

Maximum contact number :

32 contacts (Crimping )

3. Board Pre-fixed Mechanism

The insertion state to the board is a light crimping, which enables the

pre-fixed process to the board.

sApplications

Note PC, Small business equipment

Height 4mm

Board pre-fixed mechanism
