5
AT86RF211
1942C–WIRE–06/02
Block Diagram

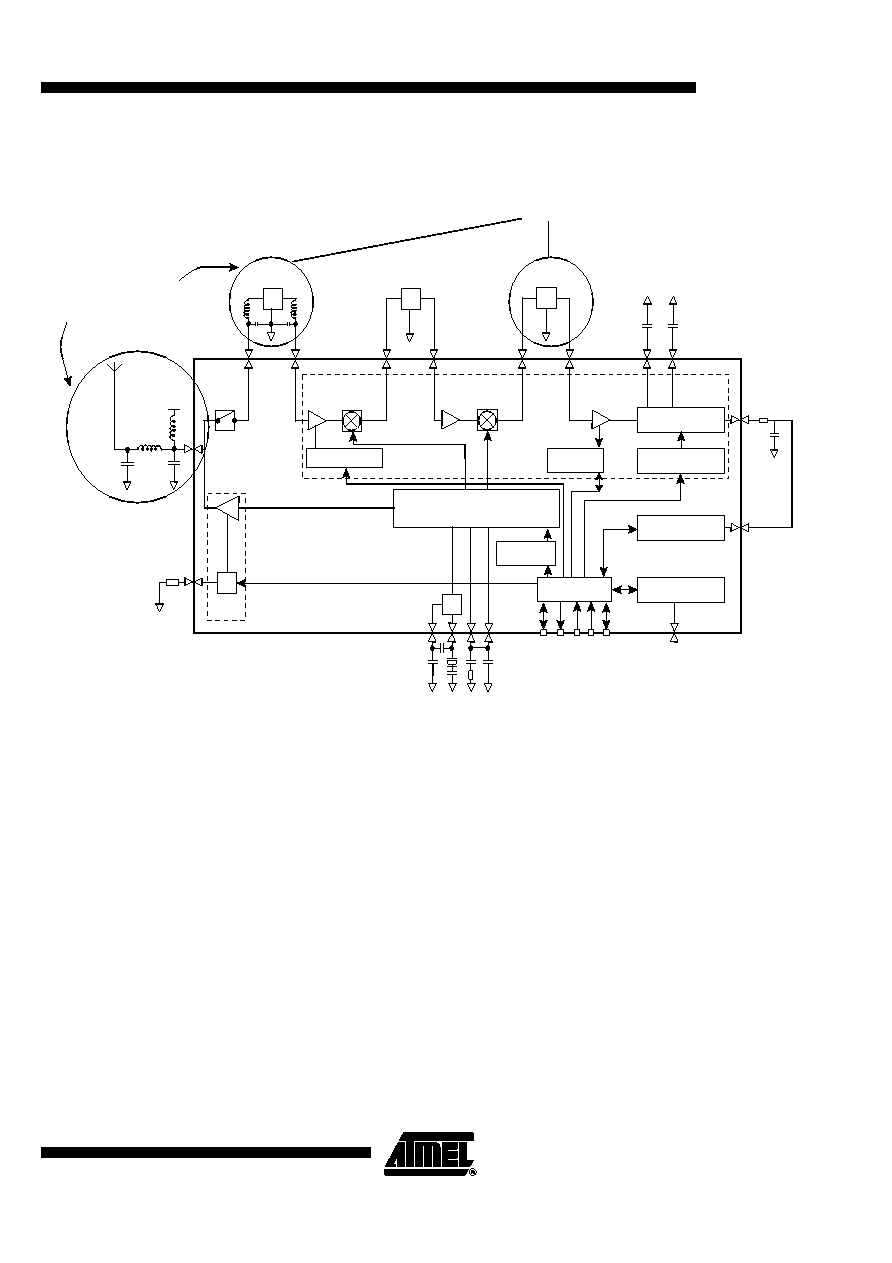

Figure 4. AT86RF211 Block Diagram
SYNTHESIZER
FREQUENCY
CTRL
CONTROL LOGIC
WAKE-UP
DATA SLICER
BANDWIDTH CTRL
RSSI LEVEL
FM DISCRIMINATOR
OPTIONAL
FILTER
IF2
FILTER
455 kHz
PWR
CTRL
TX
PA
Optional
These are the only blocks that depend
on the selected ISM band (433, 868
or 915 MHz): dual band applications
can be done by only switching them.
Synthesizer, loop filter, IF filter(s),
power supply decoupling are identical.
GAIN MIN/MAX
Rx
AERIAL
MATCHING
CIRCUIT
DATA
MSG
DATA
CLK
SDATA
WAKE-UP
SLE
SCK
IF2
AMP
IF1
AMP
MIXER2
IF1
FILTER
10.7 MHz
or
21.4 MHz
LNA
MIXER1
TX/RX
RF
FILTER
RPOWER
OSC
10.245 MHz
or
20.945 MHz
