Wire Bondable

Chip Resistors

WBC Series

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

WBC Series Issue January 2009 Sheet 2 of 3

Manufacturing Capabilities Data

Wire Bondable

Chip Resistors

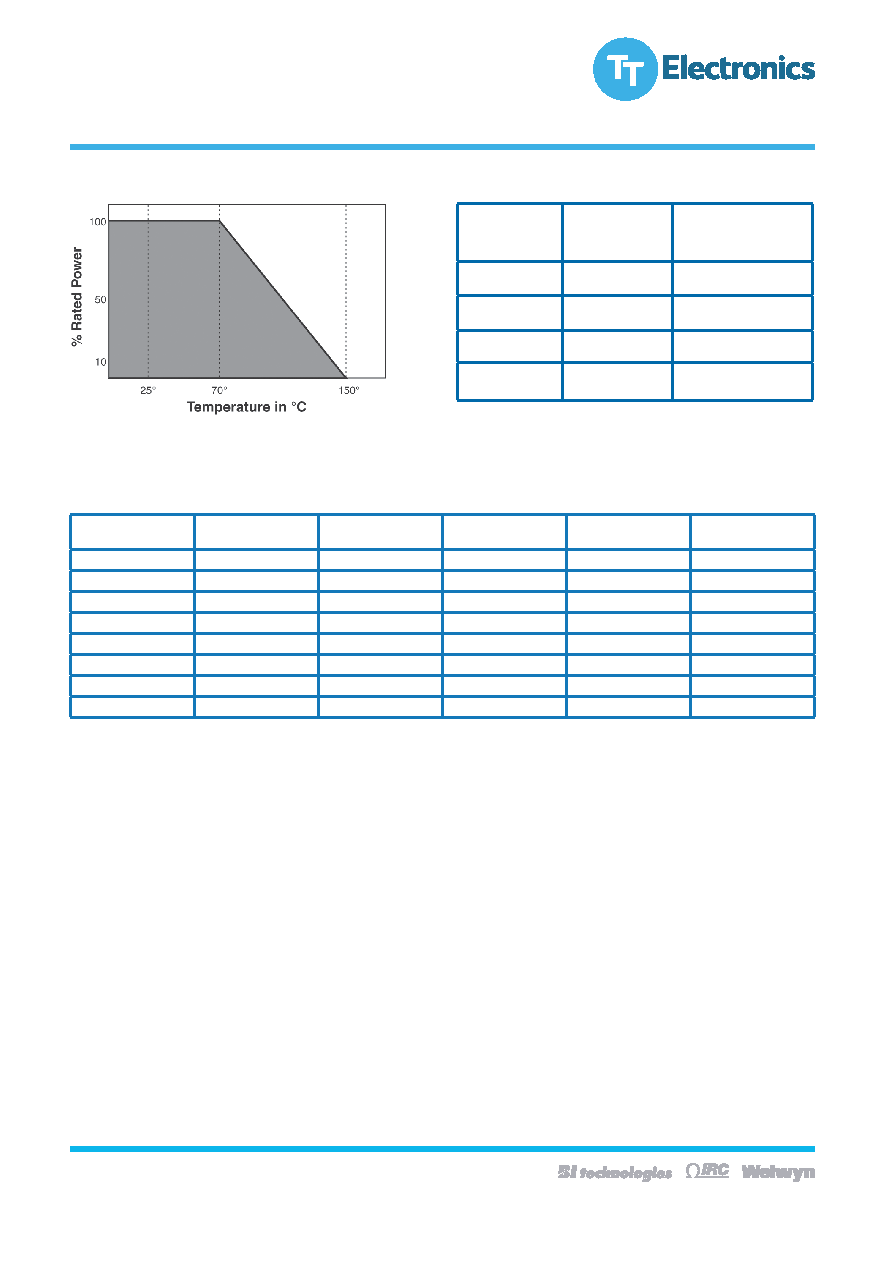

Power Derating Data

Absolute TCR

Commercial

Code

MIL Inspection

Code*

±300ppm/°C

00

04

±100ppm/°C

01

05

±50ppm/°C

02

06

±25ppm/°C

03

07

TCR/Inspection Code Table

Resistance Range

Available Absolute

Tolerances

Available Ratio

Tolerances (T0303 only)

Best Absolute TCR

Tracking TCR

(T0303 only)

10Ω - 20Ω

G J K

F G J

±100ppm/°C

±50ppm/°C

21Ω - 50Ω

F G J K

F G J

±100ppm/°C

±50ppm/°C

51Ω - 100Ω

C D F G J K

C D F G J

±100ppm/°C

±25ppm/°C

101Ω - 200Ω

C D F G J K

C D F G J

±50ppm/°C

±10ppm/°C

201Ω - 500Ω

B C D F G J K

B C D F G J

±50ppm/°C

±5ppm/°C

501Ω - 999Ω

B C D F G J K

B C D F G J

±25ppm/°C

±2ppm/°C

1.0KΩ - 1.0MΩ

B C D F G J K

A B C D F G J

±25ppm/°C

±2ppm/°C

*Notes: Product supplied to Class H of MIL-PRF 38534 includes 100% visual inspection

ResistanceRange

Package

AvailableAbs

Tolerances

AvailableRatioTol

(T0303only)

BestAbsolute

TCR

TrackingTCR

(T0303only)

10Ω-20Ω

0202only

G J K

N/A

+-100ppm/C

N/A

21Ω-50Ω

0202and0303

F G J K

F G J

+-100ppm/C

+-50ppm/C

51Ω-100Ω

0202and0303

C D F G J K

C D F G J

+-100ppm/C

+-25ppm/C

101Ω-200Ω

0202and0303

C D F G J K

C D F G J

+-50ppm/C

+-10ppm/C

201Ω-500Ω

0202and0303

B C D F G J K

B C D F G J

+-50ppm/C

+-5ppm/C

501Ω-999Ω

0202and0303

B C D F G J K

B C D F G J

+-25ppm/C

+-2ppm/C

1.0KΩ-400KΩ

0202and0303

B C D F G J K

A B C D F G J

+-25ppm/C

+-2ppm/C

401KΩ-800KΩ

0303only

B C D F G J K

A B C D F G J

+-25ppm/C

+-2ppm/C

Make Possible

07.14

General Note

TT Electronics reserves the right to make changes in product specification without notice or liability.

All information is subject to TT Electronics’ own data and is considered accurate at time of going to print.
