Electrical characteristics
CS30
8/18
DocID026040 Rev 1
3.1
Electrical characteristics curves
For the following curves, the tested device is a CS30C, and the test conditions are
Tamb =25°C, VCC = 12 V, Vsense = Vp-Vm = 50 mV, Vm = 12 V, no load on Out unless
otherwise specified.

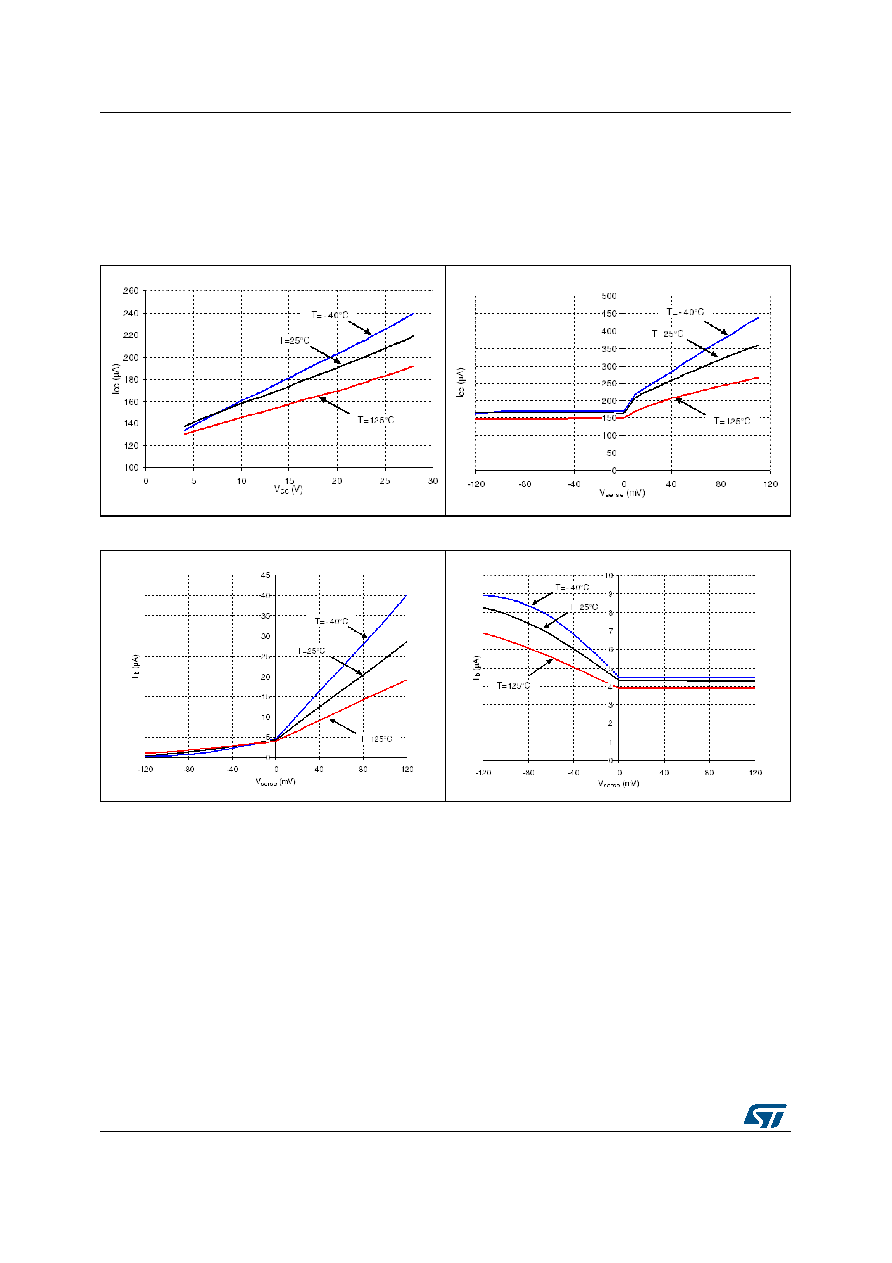

Figure 2. Supply current vs. supply voltage
(Vsense = 0 V)
Figure 3. Supply current vs. Vsense
Figure 4. Vp pin input bias current vs. Vsense
Figure 5. Vm pin input bias current vs. Vsense
