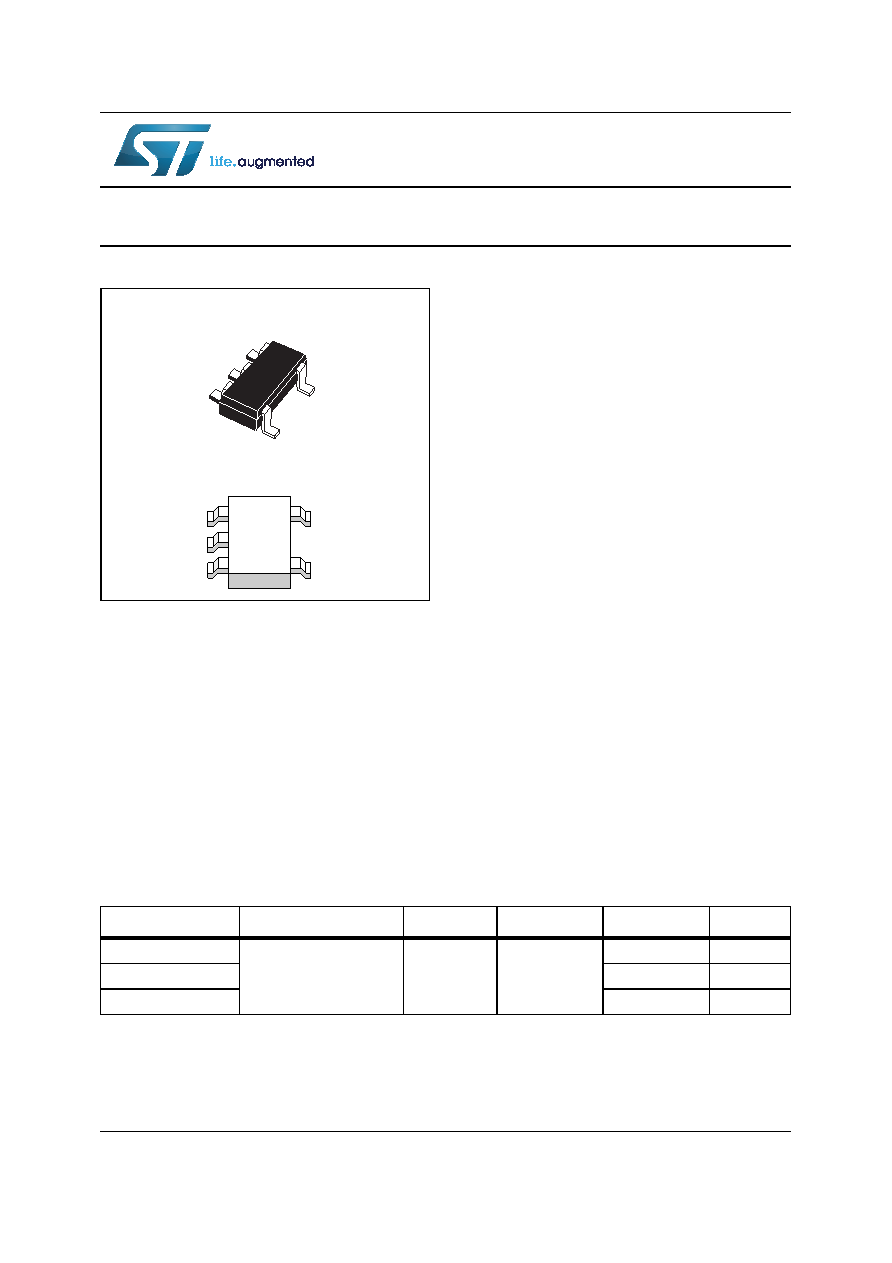

1 / 18 page  This is information on a product in full production. March 2014 DocID026040 Rev 1 1/18 CS30 High side current sense high voltage op amp Datasheet - production data Features • Independent supply and input common-mode voltages • Wide common-mode operating range: 2.8 to 30 V • Wide common-mode surviving range: - 0.3 to 60 V (load-dump) • Wide supply voltage range: 4 to 24 V • Low current consumption: ICC max = 300 µA • Internally fixed gain: 20 V/V, 50 V/V or 100 V/V • Buffered output Applications • Wireless battery chargers • Chargers for portable equipment • Precision current sources • Wearable Description The CS30 measures a small differential voltage on a high-side shunt resistor and translates it into a ground referenced output voltage. The gain is internally fixed. Wide input common-mode voltage range, low quiescent current, and tiny SOT23 packaging enable use in a wide variety of applications. The input common-mode and power supply voltages are independent. The common-mode voltage can range from 2.8 to 30 V in operating conditions and up to 60 V in absolute maximum rating conditions. The current consumption below 300 µA and the wide supply voltage range enable the power supply to be connected to either side of the current measurement shunt with minimal error. 2 1 3 Vp Out Gnd 4 5 Vm Vcc SOT23-5L (Plastic package) Pin connection (Top view) Table 1. Device summary Part number Temperature range Package Packaging Marking Gain CS30AL -40°C to +125°C SOT23-5L Tape & reel O104 20 CS30BL O105 50 CS30CL O106 100 www.st.com |
